- Shroudless design offers easy access to internal components and batteries
- Semi-Reclining captain seat with adjustable headrest is height and depth adjustable
- Armrests are padded, adjustable and removable
- Available with 22" or 24" width Captain's seat
- Quick-release lever allow for easy seat removal
- Flip-up footplate includes rubber bumper to prevent damage and is height, depth and angle adjustable
- Positioning belt included

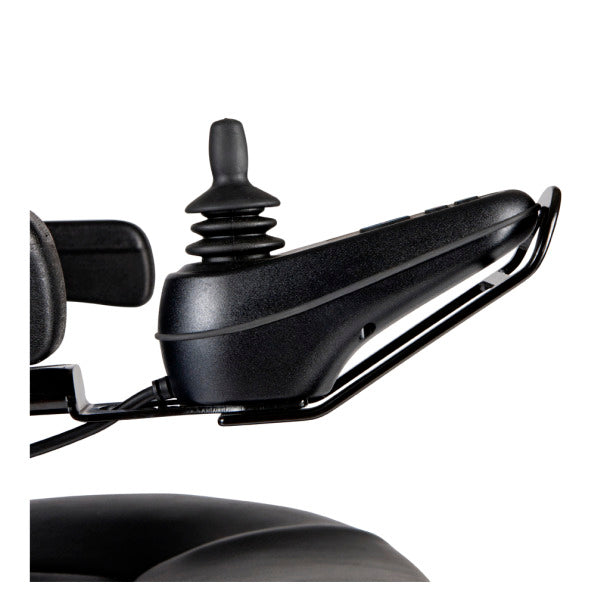

- Programmable Controller
- Black, flat-free non-marking wheels

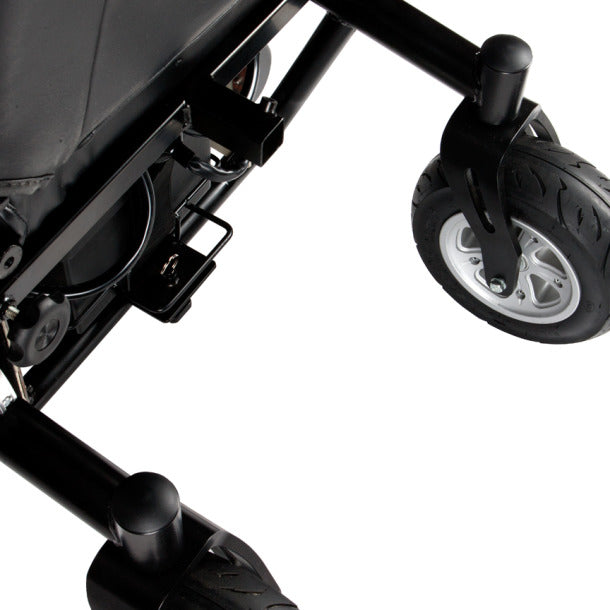

- Large, front-anti-tip wheels feature suspension for safety, smoother ride and enhanced obstaclehandling

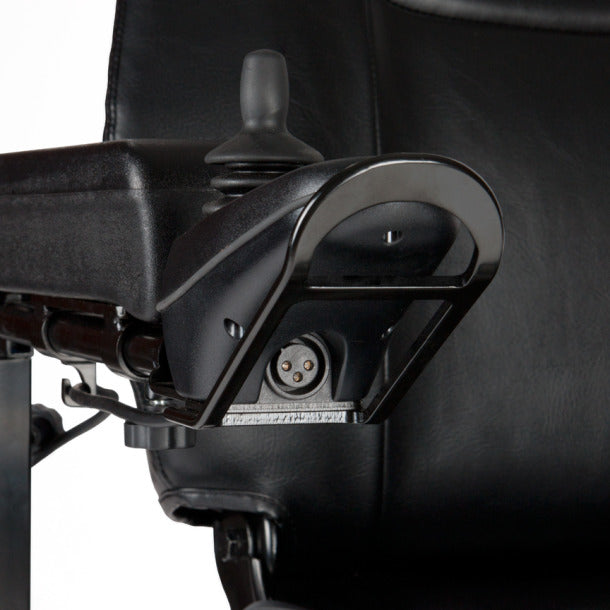

- Joystick is protected by metal casing
- Easy free-wheel operation
- Slide-out battery tray for easy access
- Optional swing-away controller arm sold separately
- Optional elevating leg rests sold separately
Base Weight: 98 lbs
Batteries (pair): 12V x 50AH
Battery Weight (pair): 66 lbs
Brakes: Electromagentic
Caster Wheels: 10" x 3"
Charger: 5A
Climbing Angle: 6°
Control Unit Airflow: 8 LPM
Control Unit Alarms: Visual / Audible
Control Unit Cycle Time: 10 Minutes
Control Unit Type: Compressor
Controller: PG VR2 70A
Control Unit Power: 110 VAC \ 60 Hz
Dimensions: 48" (L) x 25.75" (W)

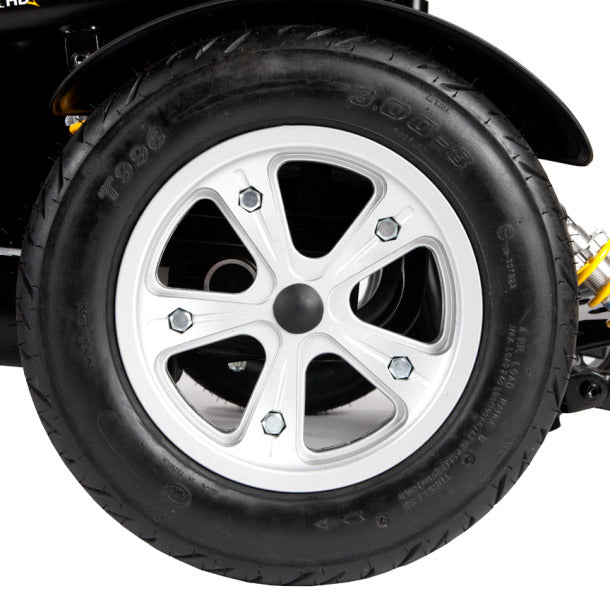

Drive Wheels: 14" x 3"
Ground Clearance: 2.5"
HCPCS: K0825
Mattress Cover Material: Fluid-Resistant Nylon
Maximum Range: 15 miles
Motor: 24V x 450W x 2700 rpm
Seat Dimensions: 22" x 20"; 24" x 22"
Seat Weight: 48 lbs
Top Speed: 4 mph
Total Weight (excl. hand control): 212 lbs
Turning Radius: 29"
Warranty: 1 Year Limited
Warranty on Batteries: 12 Months
Warranty on Drive Train Components: 24 Months
Warranty on Electronic Controller: 24 Months
Warranty on Frame: Limited Lifetime
Weight Capacity: 450 lbs
