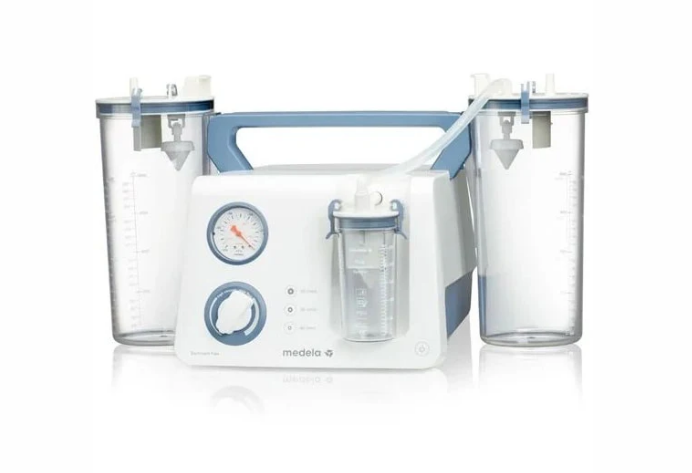

Medela Dominant Flex Aspirator - Portable - 101046566
by Medela
In Stock
$6,400.99
SKU 101046566
Spring Savings: Use code FALL for 5% OFF Total Purchase
Free Shipping Orders Over $100
Questions? Speak with a specialist!
Chat with us!
Click Widget Below
Give us a call!
Email us!
Description:
The Medela Dominant Flex Aspirator features one-touch adaptable flow rates allowing for a wider variety of procedures to be carried out with just one pump. It is designed for use in hospitals, clinics, medical practices, and can also be used to provide the vacuum required for use with cardiac tissue stabilizers used in off-pump coronary artery bypass and for use with epicardial ablation probes.
The standard flow rate of 50 l/min is an ideal starting point for most procedures. Should you require a faster vacuum build-up, a simple touch of the 60 l/min button is sufficient to put the suction pump into turbo mode. A touch on the 40 l/min button immediately delivers quiet operation.
Features:
Medela Dominant Flex Aspirator Features
-
Applications:
- Ideal: Liposuction, patient airway, respiratory support, OPCAB/CABG, emergency, operating theater/surgery, dentist, hospital, ambulatory surgery center, and clinic.
- Possible: Endoscopy, intensive care unit, and private practice.
- 120 V / 60 Hz / US AC plug.
- Piston/Cylinder System: Results in low working speed, quiet, low strain on movable parts, and minimum maintenance.
- Rapid vacuum build-up.
- Quiet drive system.
- Precise vacuum setting.
- The large vacuum gauge is easy to check at a glance. The easy-to-turn membrane vacuum regulator helps to set vacuum levels precisely.
- Protection against electric shock Class I.
- Most popular format is the mobile model.
- Swiss engineering and manufacturing processes make the Flex a reliable and long-lasting piece of technology.
- CleanTouch technology of the on/off and flow change buttons reduces the risk of contamination.
- High-quality housing materials can withstand potent disinfection agents, and the smooth, single-piece hood facilitates cleaning.
Specifications
Medela Dominant Flex Aspirator Specifications
- High Vacuum: -95 kPa, -713 mmHg.
- Flow: 40, 50, or 60 lpm.
- Power: 100 to 120 VAC, 150 W, 60 Hz.
- Power Consumption: 120 W (0.16 hp).
-
Noise Level: (measured in Medela acoustic room at 1 meter distance)
- 40 lpm: 37.8 dBA.
- 50 lpm: 38.4 dBA.
- 60 lpm: 39.8 dBA.
-
Weight: (shipped separately)
- Pump (Rack Model): 20.5 lb.
- Trolley: 20.7 lb.
-
Dimensions:
- Pump (Rack Model): 8.2" (H) x 12" (W) x 14.7" (D).
- Trolley: 26.4" (H) x 19.3" (H) x 8.7" (D) (shipping).
- Protection Class II: With a protective earth.
- Potential Equilization Conductor: Maintains the difference in potential at 0, thus preventing any transfer of static electricity running through the patient.
- IP21: Protection from dripping water.
- Vacuum Gauge: kPa and mmHg.
