Biotage - Automated Extraction System - SPE-DEX 5000

This item may require 7-10 Business Days to process and prepare for shipping.

Product Information: MODULE, EXTRACTOR HORIZON 5000SAMPLE PREP

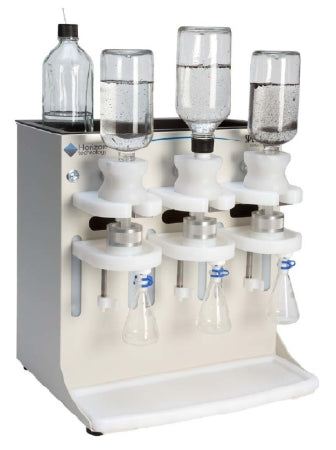

• Biotage Horizon 5000 is a three-position automated disk extraction system that conditions the disk, loads the sample (20 mL to 2 L) and elutes the analytes all without user intervention
• Control through easy to use, very visual software with icons and clear and straightforward operation for the best ease of use
• Atlantic SPE Disks and Pacific Oil & Grease Disks can be used for the highest quality consumable, and certified for automated use
• The 5000 Module can facilitate high sample throughput; with 3 positions per module and up to four modules connected to one PC controller, up to 12 samples can be run at one time
• Run even complex samples without emulsions forming
• Particulates are not a worry with the use of the Fast Flow Disk Holder and prefilters; the large surface area holds the particulates for extraction to ensure the entire sample is characterized
• The original sample bottle can be used on the 5000 eliminating the need to transfer the sample to another container
• The sample bottle is automatically rinsed with the extracting solvents, as mandated by regulatory agencies
• The system is quiet since the pumps are all internal to the unit and run only when needed
• Up to 7 solvents can be used and positioned on the top of the instrument (similar to HPLC) to use space efficiently
• Reports can be generated for archiving run conditions or export to a LIMS
• Never lose a sample with a detection system designed to pause the run for user intervention when an unsatisfactory situation is detected
• An optional bar-code reader can enter sample identifications without transcription error, reducing errors
• Use the optional Vapor Shield to contain vapors and/or allow a nitrogen blanket to protect sensitive samples
