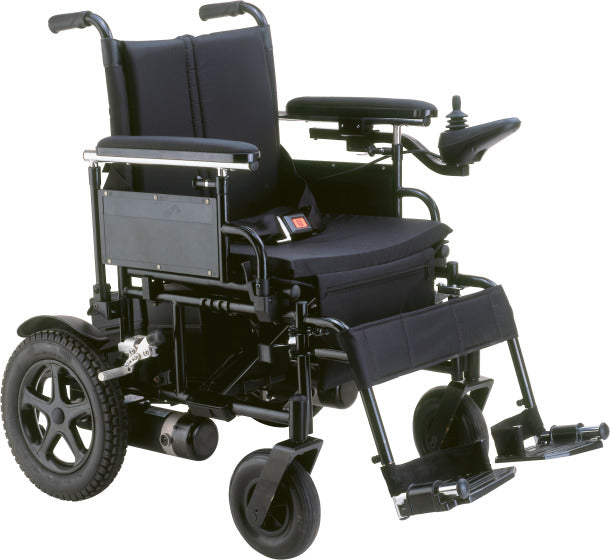

Drive Medical Cirrus Plus EC
Questions? Speak with a specialist!
Chat with us!
Give us a call!
Email us!

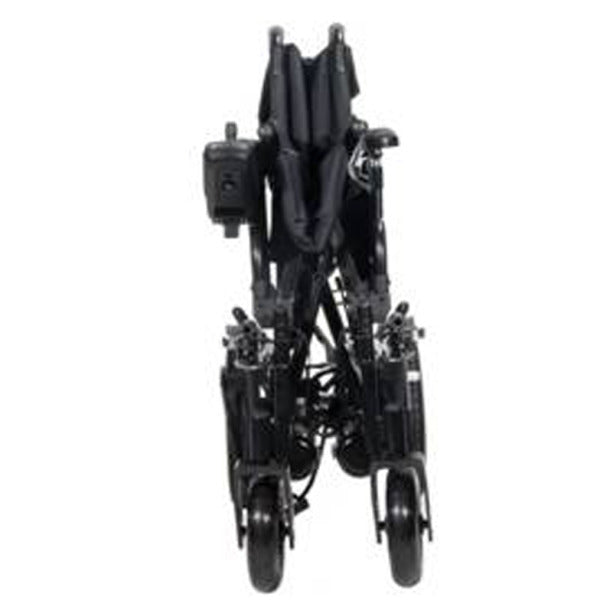

- Foldable, lightweight frame for easy portability (Figure A)
- Attractive steel cross-brace frame
- Armrests are padded, adjustable and removable
- Adjustable-length controller mount
- Adjustable-tension back upholstery
- Swing-away footrests with heel loops
- Optional elevating leg rests (Item #CPELR) sold separately
- Positioning belt included
- Padded back upholstery with storage pouch and cushioned seat
- Programmable controller
- Flat-free, non-marking tires
- Easy free-wheel operation
- Manual wheel locks
- General foam seat cushion included
- Anti-tip wheels
Alarm mute: Yes
Base Weight: 90 lbs.
Batteries (pair): 12V x 36AH (U1)
Battery Weight (pair): 56 lbs.
Brakes: Electromagnetic
Caster Wheels: 8" x 2" Solid
Charger: 4A Offboard
Climbing Angle: 6°
Controller: PG VSi 50A
Dimensions: 42.5" (L) x 24" (W) |42.5" (L) x 26" (W) |42.5" (L) x 28" (W)
Drive Wheels: 12.5" x 2.25" Flat-free
Floor to Seat Height: 18.5"
Ground Clearance: 4"
HCPCS: K0822
Maximum Range: 15 miles
Memory function: Yes
Motors (2): 24V x 320W x 4600 rpm
Power failure alarm: Yes
Seat Dimensions: 16" (W) x 16" (D) | 18" (W) x 16" (D) | 20" (W) x 16" (D)
Static selectable with auto-return to alternating mode: Yes
Top Speed: 5 mph
Total Weight (excl. hand control): 146 lbs.
Turning Radius: 30" | 32" | 33"
Warranty on Batteries: 12 Months
Warranty on Drive Train Components: 24 Months
Warranty on Electronic Controller: 24 Months
Warranty on Frame: Lifetime
Weight Capacity: 300 lbs
