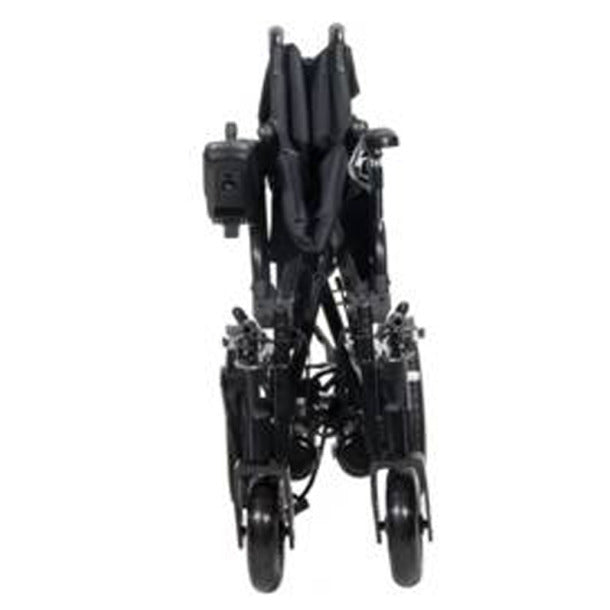

- Foldable, lightweight frame for easy portability(Figure A)
- Steel double cross-brace frame
- Adjustable-tension back upholstery
- Armrests are padded, adjustable and removable
- Adjustable-length controller mount
- Adjustable-tension back upholstery
- Swing-away footrests with heel loops
- Optional elevating leg rests (Item #CPELR) sold separately
- Optional 2" seat depth extension (Model #STDS1818N) sold separately
- Positioning belt included
- Padded back upholstery with storage pouch and cushioned seat
- Programmable controller
- Flat-free, non-marking tires
- Easy free-wheel operation
- Manual wheel locks
- General foam seat cushion included
- Anti-tip wheels
Base Weight: 100 lbs. (22"), 105 lbs. (24")
Batteries (pair): 12V x 36AH (22"), 12V x 50AH (24")
Battery Weight (pair): 56 lbs. (22"), 66 lbs. (24")
Brakes: Electromagnetic
Caster Wheels: 8" x 2" Solid
Charger: 4A Offboard
Climbing Angle: 6°
Controller: PG VSi 50A
Dimensions: 42.5" x 29.5" (22"), 46" x 31" (24")
Drive Wheels: 12.5" x 2.25" Flat-free
Floor to Seat Height: 18.5"
Ground Clearance: 4"
HCPCS: K0824
Maximum Range: 15 miles
Motors (2): 24V x 320W x 4600 rpm
Seat Dimensions: 22" x 16", 24" x 19.5"
Top Speed: 5 mph
Total Weight (excl. hand control): 156 lbs. (22"), 159 lbs. (24")
Turning Radius: 35"
Warranty on Batteries: 12 Months
Warranty on Electronic Controller/Drive Train Components: 24 Months
Warranty on Frame: Lifetime
Weight Capacity: 450 lbs
Weight Capacity (13046 | 13046-HD): 400 lbs. (22"), 450 lbs. (24")
