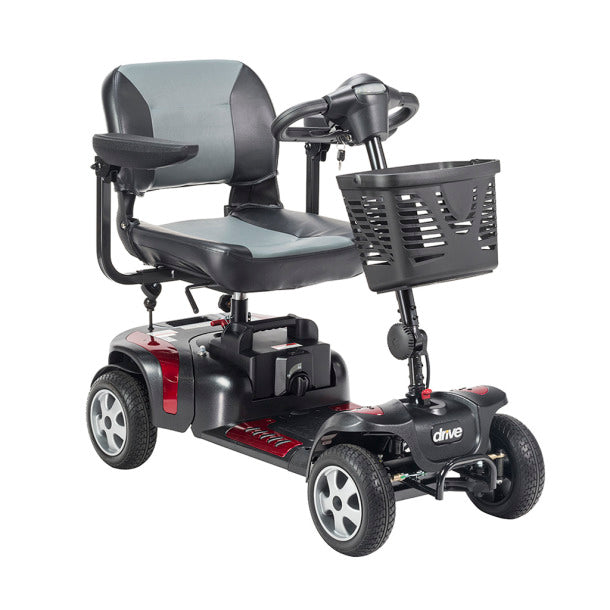

Drive Medical Phoenix HD 4
Questions? Speak with a specialist!
Chat with us!
Give us a call!
Email us!
- Quick and easy disassembly
- Includes interchangeable color panels in Red and Blue (Figure A)
- Armrests are padded and adjustable
- Quick connect batterie
- Egonomic throttle control
- Height-adjustable swivel seat with two-tone upholstery

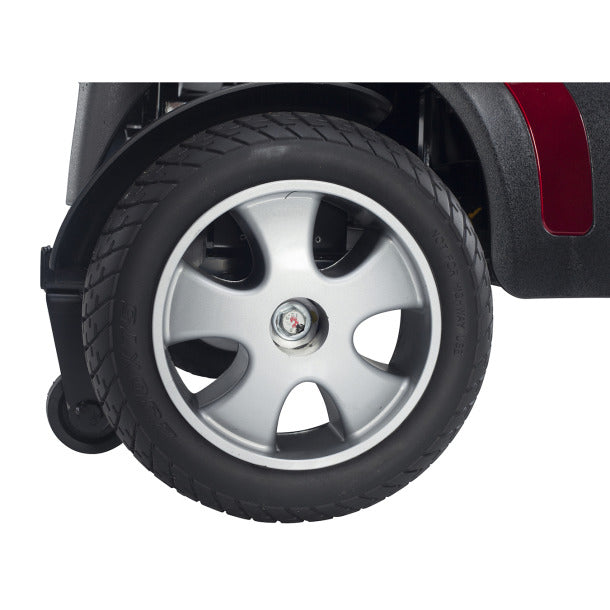

- Flat-free, non-marking tires
- Large, plastic carry basket
- Easy-to-adjust tiller
- Anti-tip wheels
- Headlight

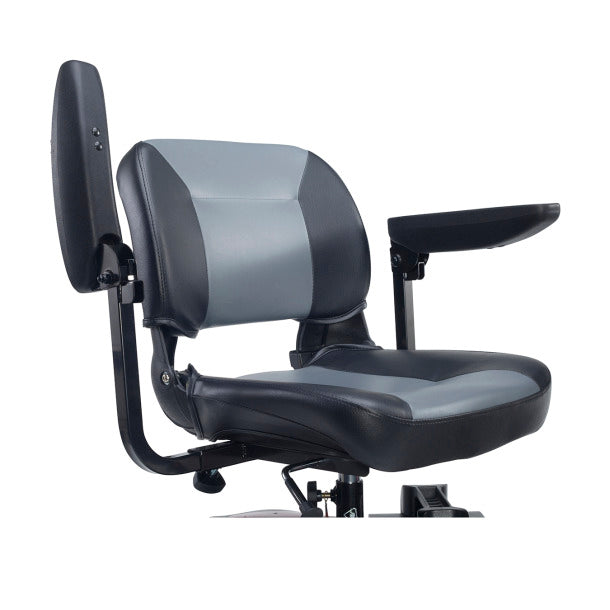

- Swivel seat with fold-down backrest
- Easy free wheel operation
Base Weight: 77 lbs.
Batteries (pair): 12V x 20AH
Battery Weight (pair): 31 lbs.
Brakes: Electromagnetic
Charger: 1.5A Offboard
Climbing Angle: 6°
Dimensions: 41.5" (L) x 22.5" (W)
Floor to Seat Height: 20" - 22"
Front Wheels: 9" x 3" Flat-free
Ground Clearance: 3.75"
HCPCS: K0801
Heaviest Piece: 46 lbs. (Front Section)
Maximum Range: 15 miles
Motor: 24V x 350W x 3600 rpm
Rear Wheels: 9" x 3" Flat-free
Seat Dimensions: 17.5" (W) x 17" (D)
Seat Type: Folding
Seat Weight: 21 lbs.
Top Speed: 4 mph
Total Weight (excl. hand control): 129 lbs.
Turning Radius: 54"
Warranty on Batteries: 12 Months
Warranty on Drive Train Components: 24 Months
Warranty on Electronic Controller: 24 Months
Warranty on Frame: Lifetime
Weight Capacity: 350 lbs
Weight Capacity (13046 | 13046-HD): 350 lbs.
Wheel Base Dimensions (L x W): 30.7" x 19.1" | 30.7" x 19.1"
