Drive Medical Spitfire DST 4-Wheel
Questions? Speak with a specialist!
Chat with us!
Give us a call!
Email us!

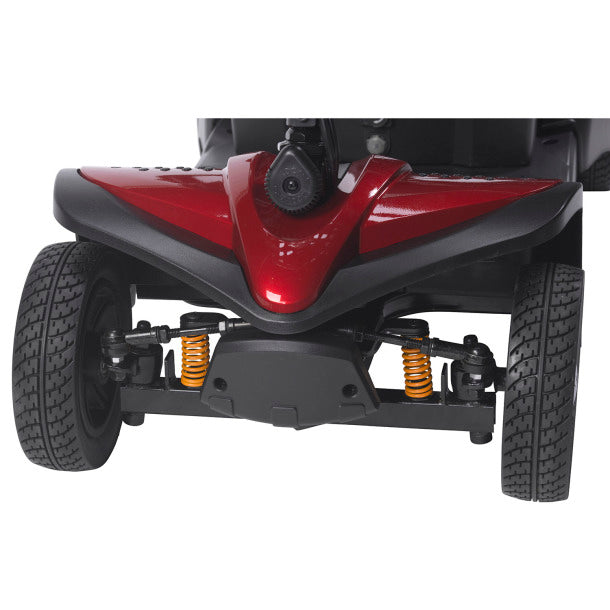

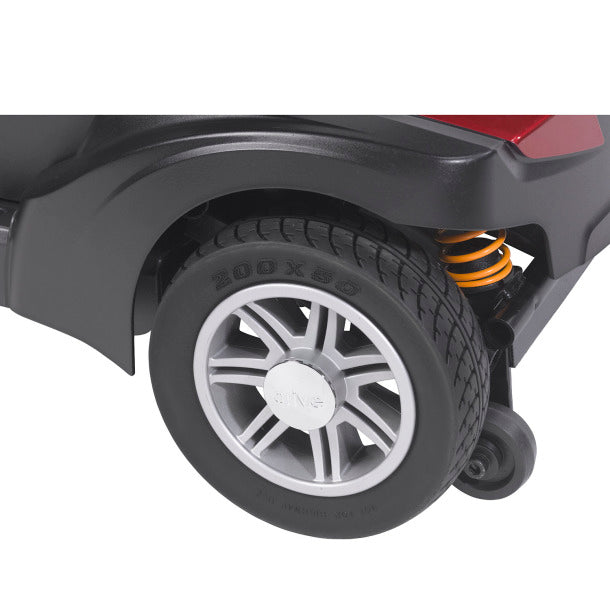

- Dynamic Suspension Technology (DST) features front and rear suspension coils for the most comfortable ride on all terrain(Figure E)
- Charge port located on the control panel and battery pack for easy charging
- Headlight
- Interchangeable color panels in red and blue
- Quick & easy disassembly

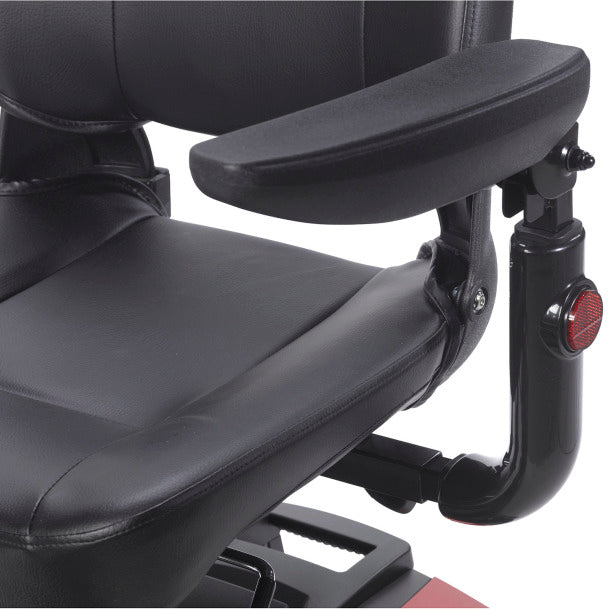

- Armrests are padded, contoured, width and angle adjustable(Figure G)

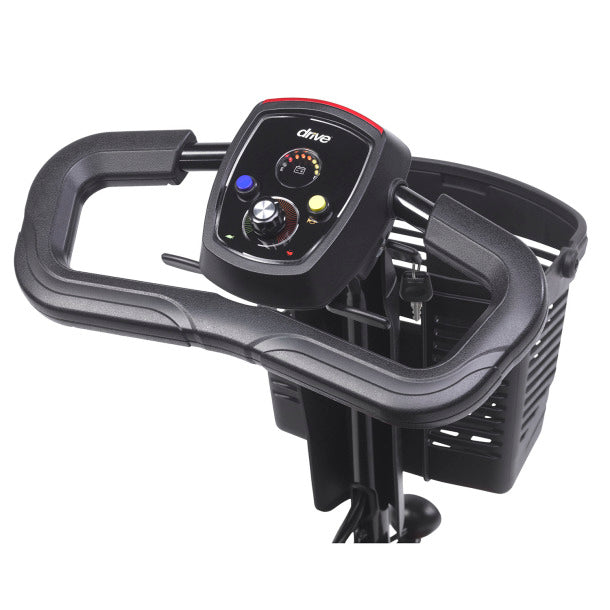

- Delta tiller with ergonomic throttle control(Figure F)
- Armrest covers with reflectors(Figure G)
- Large plastic basket with carry handle
- Height adjustable swivel seat with fold down backrest
- Anti-tip wheels
Anti-Tip Wheels: 2" x å_"
Back Height: 14"
Base Weight: 70 lbs.
Batteries (pair): 20AH
Battery Weight (pair): 30 lbs. (20 AH)
Brakes: Electromagnetic
Charger: 2A
Controller: CURTIS 45A
Dimensions: 42.5" (L) x 21.25" (W) x 36" (H)
Estimated Range: 15 miles
Freewheel Mode: Yes
Front Wheels: 8" x 2"
Ground Clearance: 2.5"
Heaviest Piece Weight: Front Section: 43 lbs.
Max Climbing Angle: 6°
Motor: 270W x 4700RPM
Rear Wheels: 8" x 2"
Seat Dimensions: 17.5" (W) x 16" (D)
Seat Weight: 23 lbs.
Top Speed: 4.25 mph
Total Weight (excl. hand control): 123 lbs.
Turning Radius: 55"
Warranty on Batteries: 12 Months
Warranty on Frame: Limited Lifetime
Warranty on Electronics, Controller,Drive-Train Components: 24 months
Weight Capacity: 325 lbs
Weight Capacity (13046 | 13046-HD): 325 lbs.
