- Captain’s seat, available in 7 different width and depth combinations, is height adjustable, reclines, swivels in 45° increments, and has a height adjustable headrest
- Padded, contoured armrests with height, width and angle adjustment
- Adjustable length controller mount
- Interchangeable color panels in red and blue included
- Flip-up footplate with height, depth and angle adjustment
- Positioning belt included

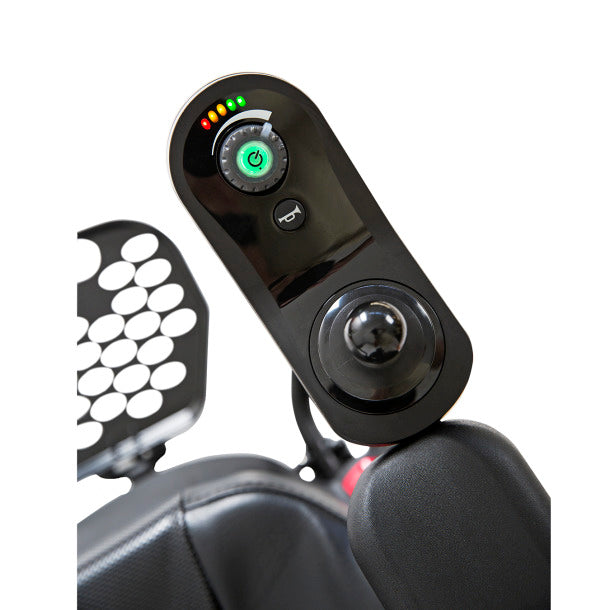

- Programmable controller with Bluetooth electronics for easy trouble-shooting and service
- Flat-free, non-marking tires
- Easy freewheel operation
Back Height: 18"
Base Weight: 87 lbs.
Batteries (pair): 12V x 33AH
Battery Charger: 4A
Battery Weight (pair): 44 lbs.
Brakes: Electromagnetic
Caster Wheels: 6" x 2"
Controller: Dynamic Linx 40A

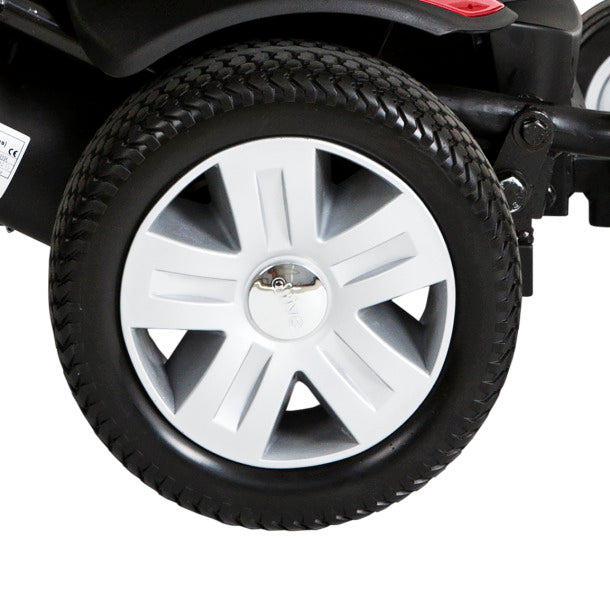

Drive Wheels: 10" x 3"
Estimated Range: 19miles
Freewheel Mode: Yes
Ground Clearance: 2.5"
Max Climbing Angle: 6°
Motor: 320W x 4600RPM
Overall Dimensions: 39.25" (L) x 23.5" (W) x 44" (H)
Seat Dimensions: 16" | 18" | 20" | 22"
Seat To Floor Height: 20.75"|21.75"
Seat Weight: 40 lbs.
Tires: Flat Free
Top Speed: 4 mph
Total Weight (excl. hand control): 171 lbs.
Turning Radius: 20"
Warranty on Batteries: 12 Months
Warranty on Electronics: 24 Months
Warranty on Frame: Limited Lifetime
Weight Capacity: 300 lbs
Weight Capacity (13046 | 13046-HD): 300 lbs.
