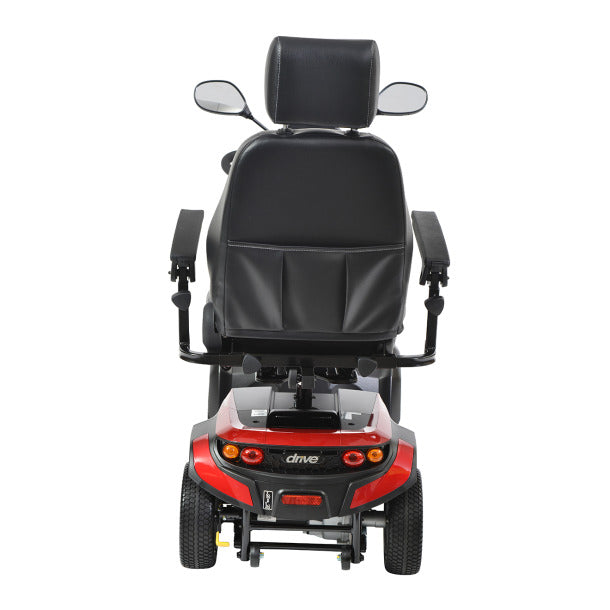

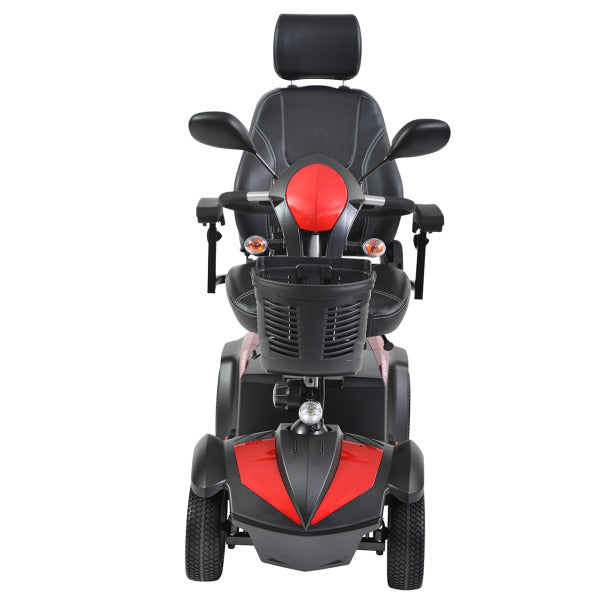

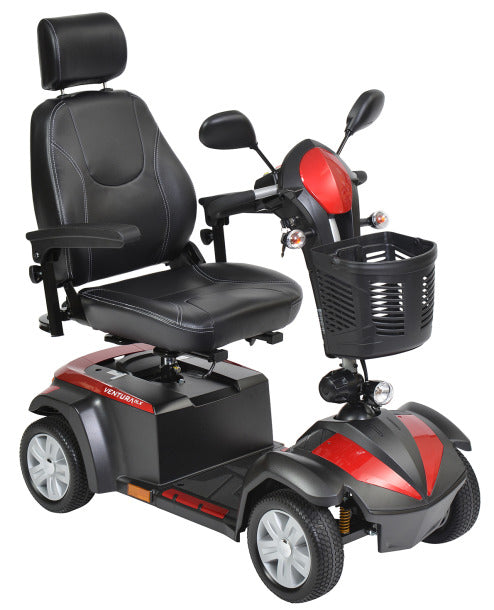

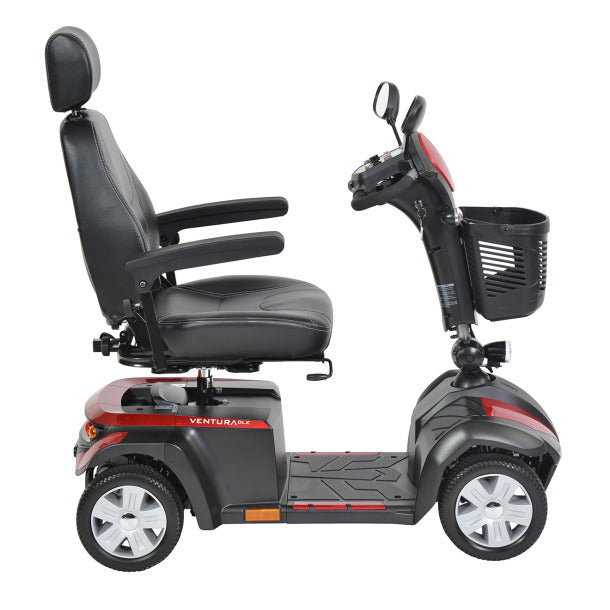

Drive Medical Ventura 4 DLX
Questions? Speak with a specialist!
Chat with us!
Give us a call!
Email us!

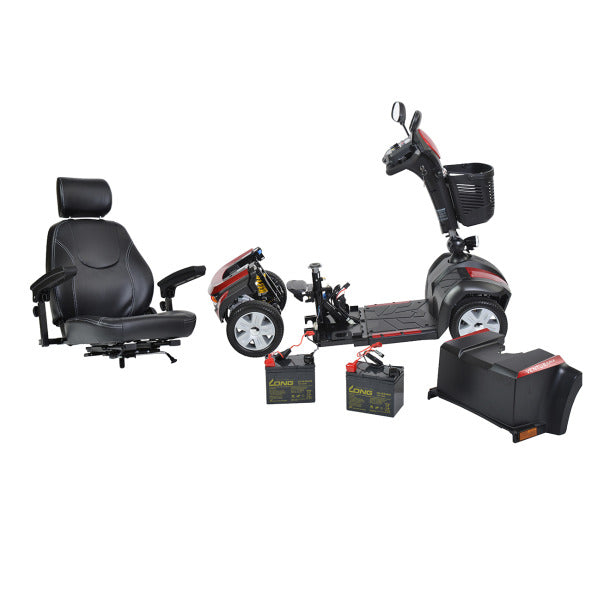

- Easily disassembles for transport
- 400 lbs. Weight Capacity
- Includes interchangeable color panels in Red and Blue(Figure A)
- Armrests are padded and adjustable
- 33AH batteries for extended range

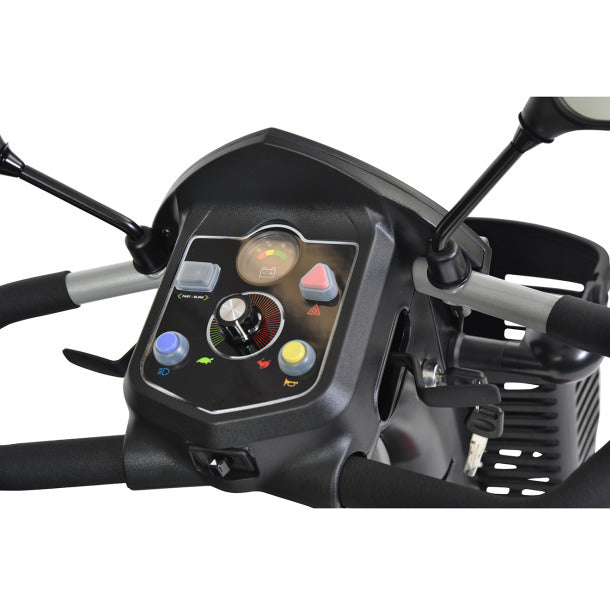

- Ergonomic throttle control
- Height-adjustable swivel seat adjusted forward and backward features fold-down backrestand adjustable headrest
- Front and rear suspension with Anti-tip wheels
- Programmable controller
- Available with 18" or 20" width Captain’s Seat
- Flat-free, non-marking tires

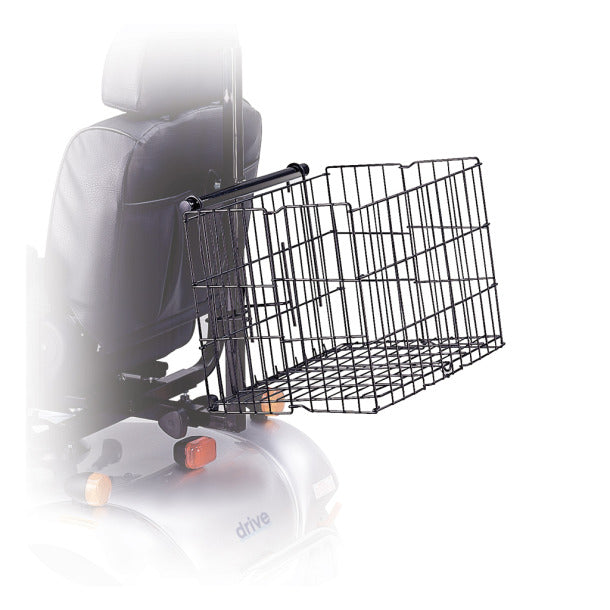

- Large, plastic carry basket
- Easy-to-adjustDelta tiller
- Headlight, rearview mirrors and turn signals/hazard lights
- Easy free wheel operation
Base Weight: 99 lbs.
Batteries (pair): 12V x 33AH
Battery Weight (pair): 46 lbs.
Brakes: Electromagnetic
Charger: 4A Offboard
Climbing Angle: 7.5°
Dimensions: 48” (L) x 25” (W)
Floor to Seat Height: 22” - 24”
Front Wheels: 10” x 3” Flat-free
Ground Clearance: 2.5"
HCPCS: N/A
Heaviest Piece Weight: 70 lbs.
Maximum Range: 16 miles
Motor: 24V x 350W x 5100 rpm
Rear Wheels: 10" x 3" Flat-free
Seat Dimensions: 18" (W) x 18" (D) | 20" (W) x 18" (D)
Seat Type: Captain"s
Seat Weight: 40 lbs.
Top Speed: 6 mph
Total Weight (excl. hand control): 185 lbs.
Turning Radius: 54"
Warranty on Batteries: 12 Months
Warranty on Electronic Controller/Drive Train Components: 24 Months
Warranty on Frame: Lifetime
Weight Capacity: 400 lbs
Weight Capacity (13046 | 13046-HD): 400 lbs.
