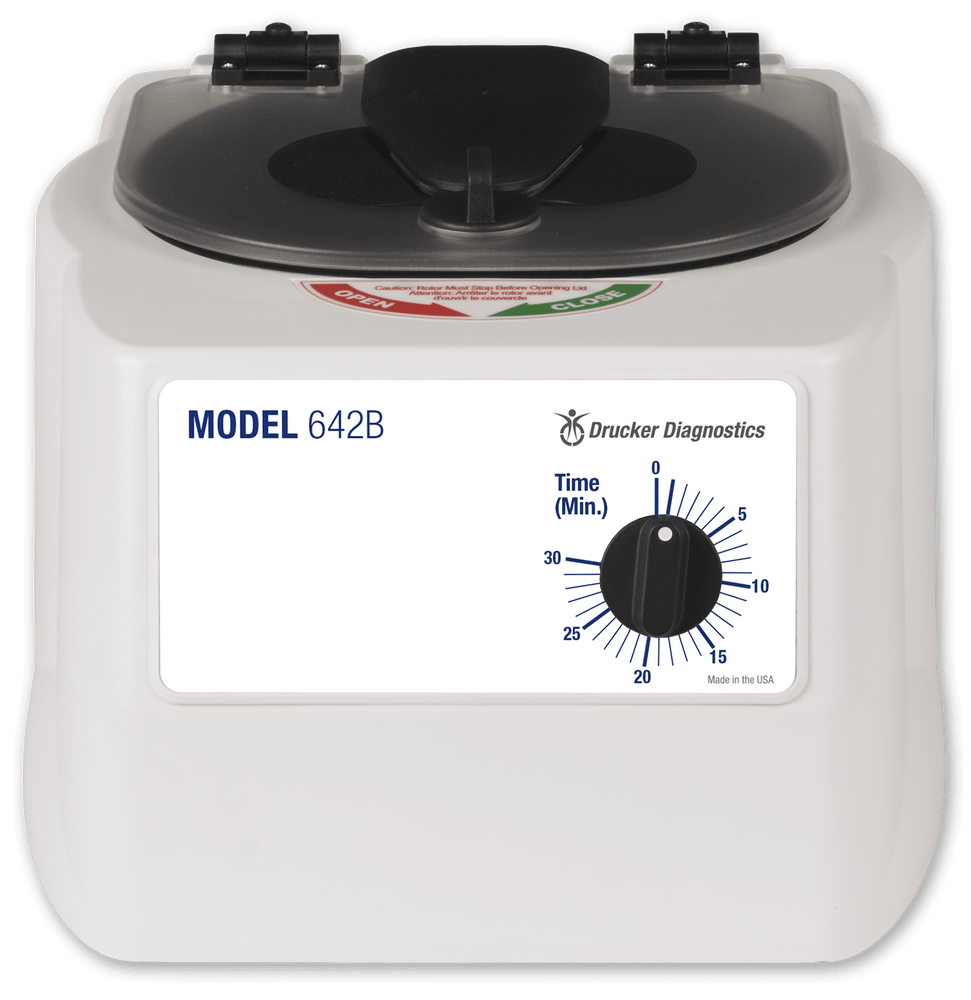

Drucker Diagnostics 6 Tube Benchtop Centrifuges (642B) - 00-016-009-001
Questions? Speak with a specialist!
Chat with us!
Give us a call!
Email us!
Description
The Model 642B is Drucker Diagnostics’ most affordable horizontal centrifuge. Set to run at a constant 1,600 xg, the 642B uses Drucker’s patented horizontal rotor technology, engineered materials, and an advanced cooling system to ensure that high quality sample separations are achieved and maintained throughout sample transport and analysis.
- Mechanical Timer – 1 minute to 30 minutes allows for a wide range of applications
- Horizontal Rotor – High quality separations for up to six (6) tubes
- Tube Sizes – 0.5 mL to 10 mL; up to 17 mm x 100 mm
- Brushless AC Motor – Years of operation with no routine maintenance
- Quiet Operation – A double-encased motor and the “stability mount” design provides excellent imbalance protection
- Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads
- Footprint – Compact design uses approximately 1 sq. ft. of counter space
- Positive Lid Latching – Firm mechanical latching of the lid prevents the escape of debris
- Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations
- Reinforced Side Walls – Glass fiber reinforced nylon and high impact polycarbonate provide dual layers of safety protection
- Regulatory Approvals – Certified to US and Canadian safety regulations and standards
- Single preset speed for consistent processing
- Adjustable mechanical timer from 1 to 30 minutes
- Our most affordable horizontal centrifuge
- Designed, built, and supported in the USA
Specifications
| Height: | 8.75 in. (22 cm) |
| Width: | 11.75 in. (30 cm) |
| Depth: | 14.0 in. (35.5 cm) |
| Weight: | 11 lbs. (5 kg) |
| Max Acceleration Time | 10 Seconds |
| Max. Deceleration Time | 80 Seconds |
| Timer | Mechanical, 1 to 30 Minutes; Preset to 10 Minutes |
| Voltage | 115 (± 10) Volts |
| Frequency |
50/60 Hz |
| Max Power Requirements | 165 Watts |
| Protection Breaker | 4 Amp. Re-settable |
| Centrifuge Motor | 1/30 H.P. Brushless AC |
| Max Speed | 3,400 RPM |
| Max Force | 1,600 xg (RCF) |
| Capacity | 6 x 75-100 mm (0.5-10 mL) |
| Max RCF | 1,600 xg |
| Max RPM | 3,400 RPM |
| Dimensions | 8.75 x 14 x 11.75 in (22 x 35.5 x 30 cm) |
