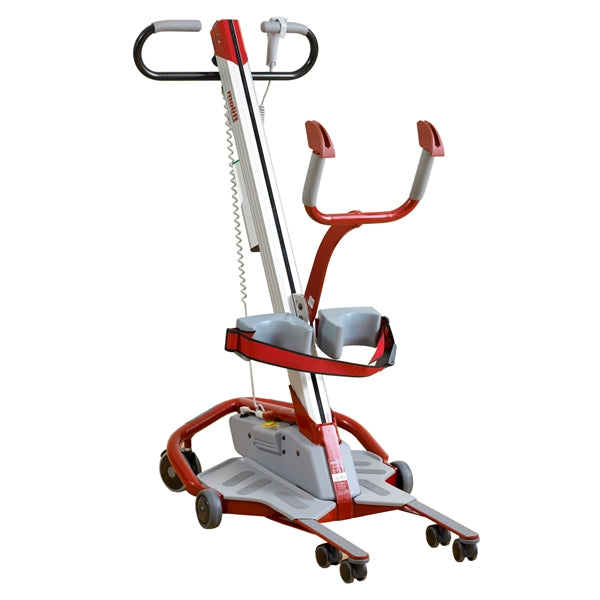

Etac Molift Quick Raiser 1

Etac Molift Quick Raiser 1

Compact design and excellent manoeuvrability even in narrow spaces

Compact and easy

By virtue of its compact design and low weight, Molift Quick Raiser 1 is stable and easy to manoeuvre. The unique wheel position and near perfect weight distribution of the base provides a small turning radius with easy manoeuvrability even in narrow spaces.

Natural pattern of movement

The inclined straight column imitates the natural pattern of movement and fulfils the hoisting needs of users with some degree of weight bearing capacity. Molift Quick Raiser 1 has a safe working load of 160 kg (352 lbs.) The extra low base, 7 cm (2.8”), and narrow front, 34 cm (13.5”), fits well around toilets and under most beds, chairs and wheelchairs.

Features:

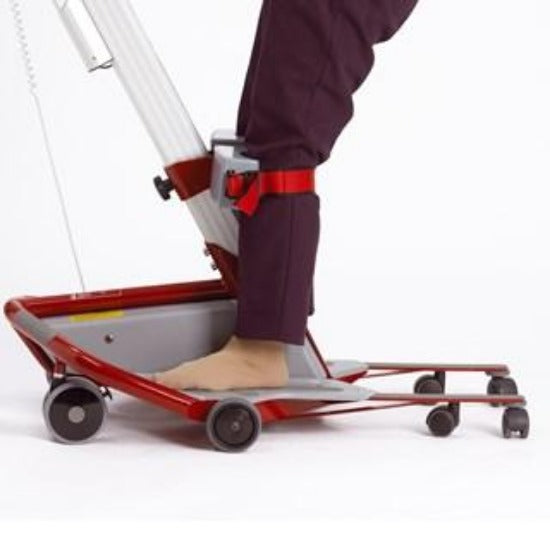

Extra low base

Extra low base with narrow front for easy access.

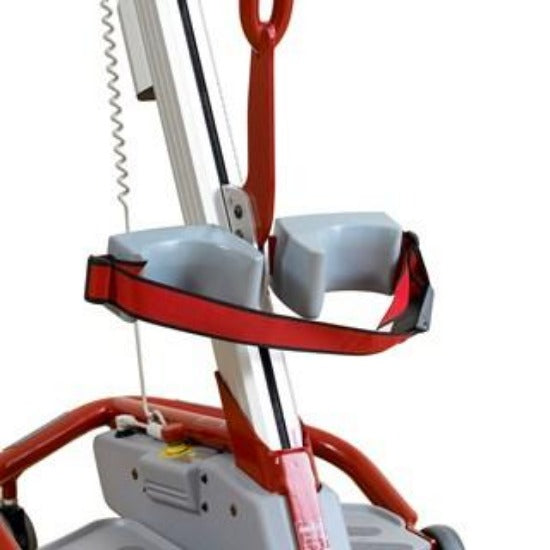

Multiple adjustable knee pads

The knee pads are height adjustable and can be turned around for better fitting and to give alternative support for the legs.

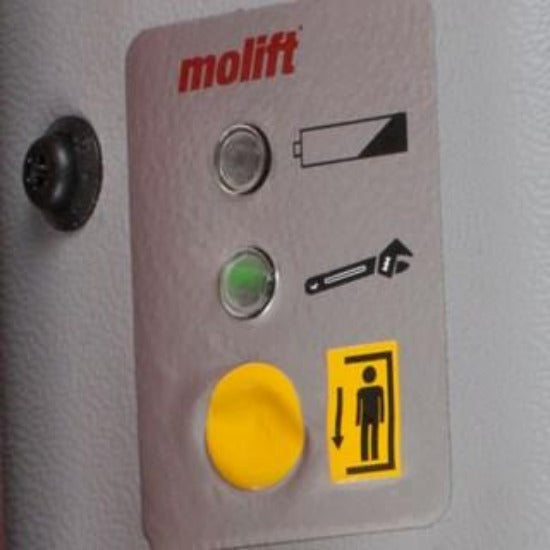

Battery indicator

All Molift hoists have an integrated battery indicator that provides audio and visual notification. All Molift hoists are equipped with an environmentally friendly NiMH-battery.

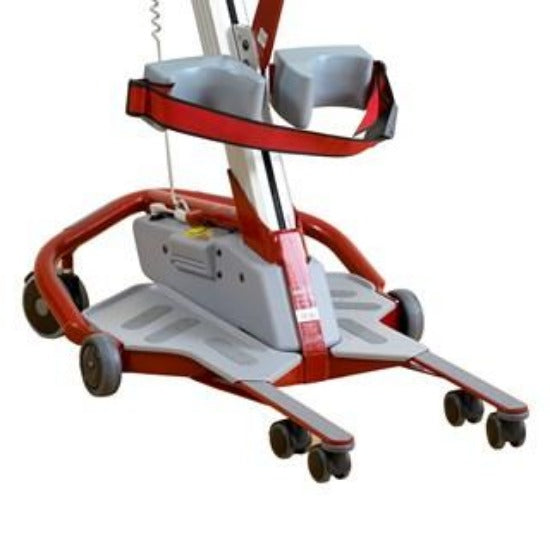

Unique wheel positioning

The lightweight construction combined with the unique wheel positioning, provides exceptional maneuverability.

Specifications:

Weight : 29 kg
Chassis width : 610 mm
Length : 95.5 cm
Leg height : 70 mm
Battery : NiMH 14.4 V - 2.6 Ah
Battery charge time, hours : 3
Hoisting speed 75kg : 50 mm /sek.
Rated performance : 40 hoists at: 75 kg and 50 cm
Service software : Included
Includes : Chassis, column, knee support and respective V- or U-shape Arm
Maximum user weight : 160 kg
Material : Aluminium, steel
