Golden Power Wheelchairs Compass HD Center Wheel Drive - 450 lbs. Capacity

Golden Power Wheelchairs Compass HD Center Wheel Drive

The Golden Compass HD offers you a stable, center-wheel-drive platform and an articulating chassis for stability over tough terrain. A bigger, beefier version of the popular Compass Sport, the Compass HD has a 450 lb. weight capacity, yet a modest 20-inch turning radius. It comes standard with a captain’s seat and our exclusive fold-flat seat hinge design for easy transport.

The Compass HD features front and rear height-adjustable seat posts, padded flip-up armrests, an easy-to-use sliding seat bracket and a fully adjustable footplate. With this lineup of features, the Golden Compass HD can take you to places you could only imagine!

Features:

Standard captain’s seat with our exclusive fold-flat seat hinge design
Optional seating includes ProFlex Seat and van/pan seat
Exclusive slide seat mechanism for easy seat removal and attachment
450 lb. weight capacity
Adjustable headrest and armrests

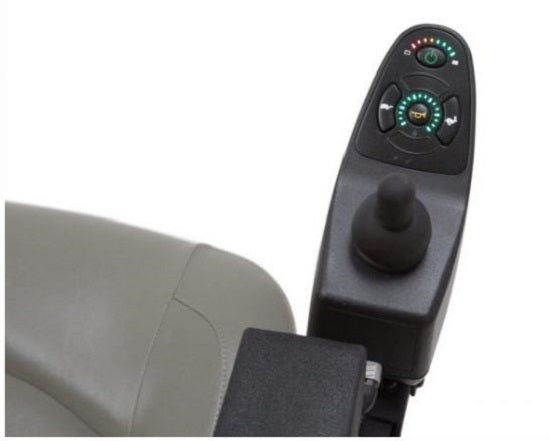

75 amp peak Dynamic Shark controller standard
Off-board charger
Accessories available: elevating leg rests, specialty leg supports, swing-away footrests, footplate extender
Uses 22NF batteries
Model Number: GP620
Designed exclusively for Golden, imported product

Specifications:

Model Name : Compass HD
Medicare Code : K0825
Weight Capacity : 450 lbs
Drive Wheels : Center
Maximum Speed : 4 mph
Operating Range1 : 12 Miles3
Ground Clearance : 3.5"
Turning Radius : 20”
Type Batteries : 2-NF22
Freewheel Mode : Yes
Electronic Speed Control : Yes
Electro-Mechanical Brakes : Yes
Charger : Off Board
Controller : 75 Amp

Dimensions:

Length : 40”
Width : 25”
Height (ground to top of back of seat) : 38.25” - 42.75”
Height (ground to top of back of headrest) : 47.25” - 53.75”
Ground to Top of Seat : 21.25” - 24.25”
Number of Seat Height Positions : 5
Size of Increments : 0.5"

Weight of Unit:

Base : 101 lbs
Seat w/Arms : 51 lbs
Batteries : 37 lbs ea.

Tires: : Flat Free

Center : 10”
Casters : 6”

Standard Seat: Captain’s Seat

Back Height - no headrest 19”
Back Height with headrest 26.5” - 30”
Width x Depth 20” x 20”/ 18”
Color Black Vinyl

Footrest: Yes

Height adjustable 3” - 7”
Angle adjustable 0 - 35 degrees

Warranty:

Frame : 5 Years
Drive Train : 13 Months
Electronics2 : 13 Months
Batteries : 12 Months
