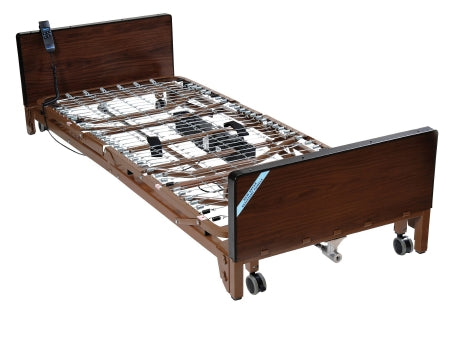

Drive Medical - Electric Bed Full Low 88 Inch Length Spring Deck 9-1/2 to 23-1/2 Inch Height Range - 15235BV-HR

This product may require 7-10 business days to process and prepare for shipping.

• Channel frame construction provides superior strength and reduced weight
• Easy to set up
• Headboard is taller than footboard to better fit home décor
• Height adjustable motor comes pre-installed on the foot section
• In the event of a power failure, a 9 volt battery, located in the motor, can lower the head and foot sections nine times
• Labels and color-coded springs assure accurate installation of side rails for patient safety
• New and improved hand pendant has large, easy to use controls
• Once installed, the high/low shaft will stay with the bed to eliminate loss or forgetting on future installations
• The Delta 1000 is truly universal because the headboards and footboards are completely interchangeable with drive's and most other manufacturers bed ends, old and new
• The motor assembly can be installed and removed with patient in bed
• The motor is UL approved
• The transition box allows you to change the rotation of the high-low shaft
• The transition box mounted on the foot section is key to interchangeability
• The wood grain panels are break and scratch resistant
• Top mounted hi/lo crank accessibility
• Unique motor is completely self-contained to reduce weight and noise
• Zinc coated spring deck

Stock Number : 804239

Manufacturer # : 15235BV-HR

Manufacturer : Drive Medical

Country of Origin : United States

Application : Electric Bed

Deck Type : Spring Deck

Height : 9-1/2 to 23-1/2 Inch Height Range

Length : 88 Inch Length

Operating Mechanism : Hand Pendant Control

Type : Full Low

UNSPSC Code : 42191807

Weight Capacity : 450 lbs. Weight Capacity

Width : 36 Inch Width

BED, ELEC HOSP HALF RAILS ULTRULTR LT 1000 36" BRN D/S
