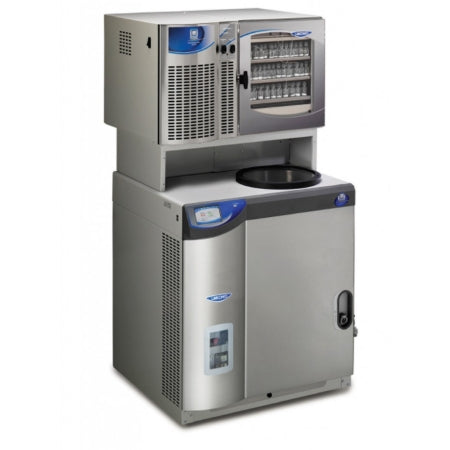

FreeZone - Console Freeze Dryer - 10400406

This product may require 7-10 business days to process and prepare for shipping.

• Manufacturer: Labconco 701821110
• FreeZone 18 Liter Console Freeze Dryers with Stoppering Tray Dryers are designed for lyophilizing moderate to large loads and stoppering vials or serum bottles under vacuum
• The console's upright stainless steel collector coil is capable of holding 18 liters of ice before defrosting
• A single 1-1/2 hp HCFC/CFC-free refrigeration system cools the collector to -50° C (-58° F), suitable for aqueous samples
• The Stoppering Tray Dryer features three 16-1/2 X 12 Inch processing shelves
• A single 1 hp HCFC/CFC-free refrigeration system and 1000-watt electric heater cool and heat the fluid medium circulating through channels in the shelves
• 5 Inch full color capacitive touch screen
• Clear acrylic chamber lid, 3/4 Inch thick, with neoprene gasket
• Brushed stainless steel and glacier white, powder-coated steel exterior with blue accents
• Real time display of collector temperature, vacuum level, and optional End-Zone end point detection system
• Operating mode (standby or run)
• Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters
• Data logging stores and displays data in table or chart format, and may be exported via USB or Ethernet
• Hot gas defrost with auto shut off at +60° C (+140° F)
• Side-mounted USB port and rear-mounted Ethernet connection

Stock Number : 1193357

Manufacturer # : 10400406

Brand : FreeZone

Manufacturer : Fisher Scientific

Country of Origin : Unknown

Application : Console Freeze Dryer

Dimensions : 29-3/5 X 32-2/5 X 63-3/4 Inch

For Use With : For Lyophilizing Moderate to Large Loads and Stoppering Vials or Serum Bottles under Vacuum

Material : Stainless Steel / Powder Coated Steel / Acrylic

Power Source : 230V, 60Hz, 9A

Specifications : 18 Liter Ice Holding Capacity, -50°C (-58°F) Collector Temperature, 163 Liter per Minute or Larger Vacuum Pump Displacement Required, 713 lbs. Estimated Shipping Weight

UNSPSC Code : 41104701

DRYER, FREEZE CONSOLE W/STOPPING TRAY/PURGE VLV 230V MODEL
