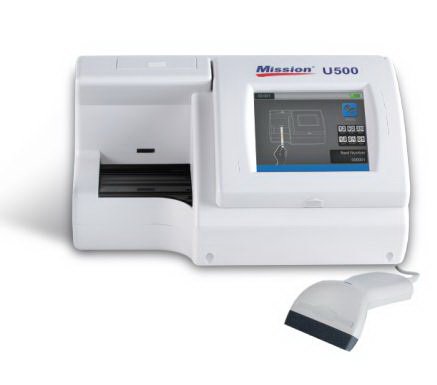

Mission U500 - Urine Analyzer 500 Tests - U211-101

This product may require 7-10 business days to process and prepare for shipping.

• Semi-automatic analyzer, reflectance photometry methodology, photosensitive diode detection
• Strip lockout- available upon request; user/QC lockout- included with option to turn on/off
• Memory last 2,000 results, 1 minute strip incubation time, 525 and 635 nm wavelength
• Analyzer ports- RS232C port for barcode reader, data transfer, and software update, USB port for data transfer, 25 pin parallel port for external printer
• Data transfer options- data for single entry, all the data in database, data from specific date
• Data search options- test number, positive results, patient ID, date, STAT results, QC results
• Software updates- download software from ACON website and update analyzer via RS232C cable
• Connection capabilities- internal thermal printer (included), RS232C port for software update (included), optional external printer (not included), RS232C barcode reader (optional), USB or RS232C data transfer cable (optional)
• TFT LCD color touch screen (11.5 X 9 cm), automatic calibration, more than 8 languages available, including english
• 0 to 40°C (32-104°F); ≤ 85% RH Operating conditions, -5 to 50°C (23-122°F); ≤ 90% RH storage conditions
• Ability to input urine color and clarity for better reference, strip selection of up to 15 combinations available now with capacity for unlimited combinations
• Automatic strip detection and alignment for better efficiency, uniquely designed strip platform/waste tray unit for easy one-step cleaning
• Can read strips with up to 14 parameters, including microalbumin/creatinine/calcium, capable of printing results on sticker paper for quick and easy record management
• USB Port and RS232C port for easy data transfer to a computer and LIS, while RS232C Port also available for quick software upgrade, easily search memory by test number, positive results, patient ID, date, STAT results and QC results
• Stores up to 2,000 records and flags abnormal results automatically, records operator/patient ID by manual entry or barcode reader, strip lockout, user lockout
• Option to prevent testing without passing QC as necessary
• If QC tests fail, analyzer can switch to STAT mode and list "E" at the end of each test number

Stock Number : 979077

Manufacturer # : U211-101

Brand : Mission U500

Manufacturer : Acon Laboratories

Country of Origin : China

Application : Urine Analyzer

Contents 1 : (1) Urine Analyzer, (1) Strip Platform/Waste Tray, 2 Printer Paper Rolls, 2 Fuses (2 A), (1) Power Cord, (1) Instruction Manual

Dimensions : 7-3/4 X 11 X 14-1/2 Inch, 3-1/2 X 4-1/2 Inch Display

Number of Tests : 500 Tests

Power Source : 100 to 240 VAC, 50/60 Hz

Readout Type : Thermal Printer

Sample Capacity : Up to 150 Strips Waste Disposal Capacity

Sample Type : Urine Sample

Test Name : Urine Color (Yellow, Orange, Red, Green, Blue, Brown, and Other) and Clarity (Clear, Slightly Cloudy, Cloudy, Turbid, and Other) - Manual Entry, Routine, STAT, and QC

Throughput : 500 Tests per Hour

Time to Results : 1 Hour Results

UNSPSC Code : 41115827

User Interface : Touch Screen LCD

Weight : 8.8 lbs.

ANALYZER, URINE MISSON U500
