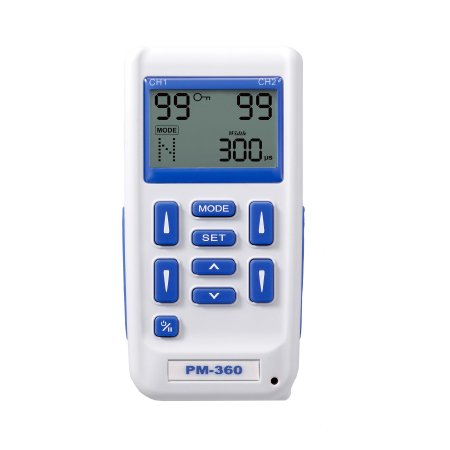

ProMed Specialties - Tens Unit Electrotherapy Device 2-Channel - PM-360

This product may require 7-10 business days to process and prepare for shipping.

• LCD Display
• Five TENS modes: B (Burst), N (normal), M (modulation rate and width), S1, S2 (modulation width)
• Timer adjustable, from 5 to 60 minutes and continuous (C), 5 minutes each step
• Patient compliance meter: Shows treatment times in hours
• Optional: 9V AC Adapter and 9V rechargeable battery kit available
• Wave form - asymmetrical bi-phasic square pulse
• Function modes- B: Burst rate adjustable 0.5-5Hz; pulse width adjustable, 50-300 μs, frequency fixed 100Hz, N: Normal mode pulse rate and width adjustable with continuous stimulation
• M: Modulation mode pulse rate and width are automatically varied in a cycle pattern within 50% of its original setting
• S1: Pulse width automatically varied in cyclic pattern over 10 seconds, then decreases over period of 4 seconds to 40% of its original setting
• S2: Pulse width automatically varied in cyclic pattern over 10 seconds, then decreases over period of 4 seconds to 70% of its original setting
• Patient- unit store 60 sets of operation records
• Compliance timer - unit stores 60 sets of operation records for a total time of 999 hours
• Maximum charge- 21 micro coulombs per pulse
• Power source- 9 volt alkaline battery or similar rechargeable cell
• Battery life - 70 hours average usage (alkaline)

Stock Number : 852242

Manufacturer # : PM-360

Manufacturer : ProMed Specialties

Country of Origin : Taiwan

Application : Tens Unit Electrotherapy Device

Contents 1 : Stimulator, Lead Wires, 4 Self-Adhesive Reusable Electrodes, 9 Volt Battery, Low Battery Indicator, Instruction Booklet, Hard Plastic Carrying case

Dimensions : 25 X 61.5 X 108 mm

Modes : Five Tens Modes

Number of Channels : 2-Channel

Power Source : 9 V Battery

Pulse Amplitude : Adjustable 0 to 80 mA Peak into 500 ohm Load Each Channel, Constant Current

Pulse Rate : 1 Hz-160 Hz Adjustable, 1 Hz/Step (1-20 Hz), 5 Hz/Step (20-160 Hz)

Pulse Width : 50 to 260 μs Adjustable, 10 μs/Steps

Type : Digital

UNSPSC Code : 42141807

Waveforms : Asymmetrical, Biphase, Square Pulse

Weight : 140 Gram

TENS UNIT, 5MODE DIG
