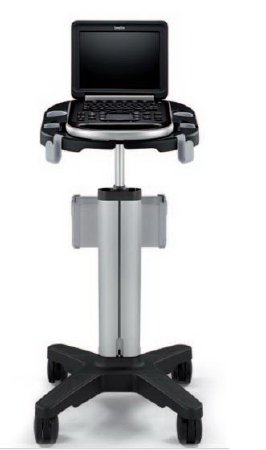

Sonosite EDGE - Ultrasound System Phcdignityhealthcareatella, 12.1 Inch LCD, Tiltable Monitor, Track pad, Sleep Mode (Quick Start), 1.5 cm Minimum Depth of Field, 35 cm Maximum Depth of Field - 123415

This product may require 7-10 business days to process and prepare for shipping.

• Transducers: Broadband/multifrequency: Linear array, curved array, phased array and micro-convex, single frequency: Cardiac static pencil
• OB/Gyn/Fertility: Diameter/ellipse measurements, volume, ten follicle measurements, estimated foetal weight, established due date, gestational age, last menstrual period, growth charts, user-defined tables, multiple user-selectable authors, ratios, amniotic fluid index, patient report, humerus and tibia measurement and charts
• Vascular: Diameter/ellipse/trace measurements, volume, volume flow, percent diameter and area reduction, Lt/Rt CCA, ICA, ECA, ICA/CCA ratio, time average mean (TAM), peak trace, ICA/CCA ratio, angle correction, patient report
• CIMT (Carotid Intima Media Thickness) Embedded SonoCalc IMT software (optional) - automatic edge detection with mean and maximum thickness reporting
• Automated cardiac output package and patient report including: ventricular, aortic and atrial measurements; ejection fraction, volume measurements, Simpson's rule, continuity equation, pressure half-time and cardiac output, PA AT, TV E, A, PHT, TVI, MV time, Pulm Veins
• Transcranial Doppler (TCD): Complete TCD package including Time Average Peak (TAP)
• System operates via battery or AC power
• Rechargeable lithium-ion battery
• AC: universal power adapter, 100-240 VAC, 50/60 Hz input, 15 VDC output
• Less than 20 sec. from power-on to scanning
• Edge stand and peripherals transducer and gel holders, optional triple transducer connect (TTC) to quickly activate transducers electronically, optional foot switch
• Drop-tested at 91.4 cm

Stock Number : 1012083

Manufacturer # : 123415

Brand : Sonosite EDGE

Manufacturer : Global Medical Imaging

Country of Origin : Unknown

Application : Ultrasound System

Dimensions : 2.5 X 12.4 X 12-9/10 Inch

Display Type : LCD Display

Power Source : AC Power

Specifications : Phcdignityhealthcareatella, 12.1 Inch LCD, Tiltable Monitor, Track pad, Sleep Mode (Quick Start), 1.5 cm Minimum Depth of Field, 35 cm Maximum Depth of Field

Test Name : Abdominal

UNSPSC Code : 42201711

Weight : 8.5 lbs.

ULTRASOUND, SONOSITE EDGE PORT(PHCDIGNITYHEALTHCAREATELLA)
