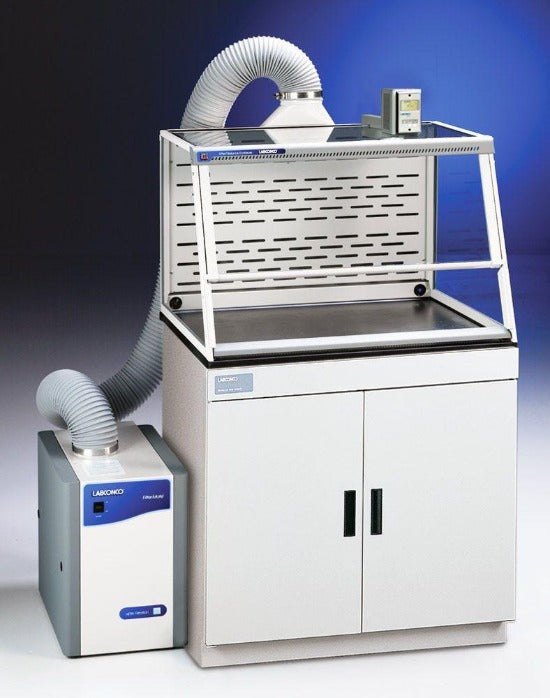

Labconco 2' XPert Easy-Order with Guardian 1000 Digital Airflow Monitor - 3960202

Labconco 2' XPert Easy-Order FilterMate Portable Exhauster

The XPert Easy-Order includes all of the components needed to get to work in your new balance enclosure: an XPert Balance Enclosure, Black Solid Epoxy Dished Work Surface and FilterMate Portable Exhauster with oversized HEPA Filter.

XPert Balance Enclosures provide user protection by keeping powders, particulates and fume contained during weighing procedures. They are well suited for pharmaceutical research and other laboratory applications involving weighing of toxic substances.

The FilterMate Portable Exhauster filters the exhaust from your balance enclosure, returning safe, HEPA filtered air to the lab environment, providing a safe alternative when ducting to the outside is not feasible.

Features:

Low profile fits in tight spaces
Deep 23" interior easily accommodates large micro and analytical balances
Patented Clean-Sweep air foil allows air to sweep the work surface for maximum containment
Upper containment sash foil bleeds air into the enclosure to direct concentrations of contaminants away from the operator's breathing zone
Upper dilution air supply introduces room air at the top of the sash to dilute concentrations in the upper chamber and bathes the back of the sash with clean air
Patented rear baffle with zones of perforations promotes horizontal laminar airflow to maximize containment
Side-entry air foils allow air to sweep across the interior glass surfaces to enhance containment
Sturdy glacier white and gray, dry powder epoxy-coated aluminum frame and steel rear plenum and baffle dissipate static charge and provide durability and better corrosion resistance compared to acrylic models
Tempered safety glass front sash, sides and top offer excellent visibility, ambient light and protection
8" high sash opening limits exhaust demand, conserves costly tempered room air and requires a smaller remote blower than most fume hoods
Ergonomic 20° angled sash allows a closer view, reduces glare and provides a more comfortable operating position than vertical sashes
Two utility ports with iris openings allow passage of tubing, electrical cords and interface cables from inside to back exterior for connection to services
Flexible exhaust options -- connect to ductwork for exhausting to the outside or to a FilterMate Portable Exhauster for filtered removal of powders, particulates or fumes
Particulate containment independently verified by SafeBridge Consultants, Inc.
ASHRAE 110-1995 conformity as independently verified by ECT, Inc.
Free validation package available containing information from SafeBridge Consultants, Inc. and ECT, Inc. Test Reports; Installation Qualification/ Operation Qualification (IQ/OQ) Protocol; and Maintenance Log

Features of the FilterMate Portable Exhauster:

Compact, corrosion-resistant housing of glacier white and light gray, dry powder, epoxy-coated steel with rubber feet fits easily on a countertop, floor or shelf next to the enclosure
HEPA filter, 99.99% efficient on particulates 0.3 micron in size
True bag-in/bag-out filter disposal system for safely removing and replacing the filter without detaching the hose
Variable speed, non-sparking motorized impeller
Oversized HEPA filter, efficient impeller and unique perforated exhaust cover work together to provide low noise pressure levels
Negative pressure plenum surrounds the positive pressure impeller so that if a leak occurs, the unfiltered air is captured and refiltered
Capable of efficiently filtering up to 250 CFM for HEPA or carbon filtration
Front-mounted rocker switch controls power to the blower
Rear-mounted auxiliary electrical outlet may be connected to an airflow monitor or other user-supplied accessories
Provides 100 fpm face velocity for 2', 3' or 4' enclosure
8 feet of 5" ID gray flexible hose, two clamps and a 5" OD Upper Transition Adaptor for connection to Demonstration Hood, XPert Balance Enclosure, Protector XVS Ventilation Station or Protector Work Station is included
IEC 3-wire electrical cord with plug

Options:

Built-in Guardian 1000 Digital or Guardian Jr. Airflow Monitor with low voltage electrical cord, power pack and plug

Required Accessories:

Connection to a remote blower or FilterMate Portable Exhauster.
Work surface.
Supporting base.

Optional Accessories:

Fluorescent Light Kits for enhanced illumination of the interior
Transition Adapters for connecting ductwork routed either up or down
Exhaust Dampers to allow adjustment to the airflow
Utility Shelf Kit for attaching to the rear baffle perforations to hold a printer, utensils and other miscellaneous weighing supplies
Replacement HEPA Filter
Replacement Bag for HEPA Filter Bag-In/Bag-Out to ensure contamination of particulate matter during filter changing

Specifications:

Estimated Shipping Weight: 138.0 lbs
Estimated Shipping Weight metric: 63.0 kg
Dimensions: 24"w x 29"d x 28.6"h
Electrical: 100-115 V, 60 Hz, Domestic

Attributes:

Width: 2'
Airflow Monitor: Guardian 1000 Digital
Air Usage/Static Pressure with Sash At Working Height: At 60 fpm, exhausts 70 CFM at .02" H2O static pressure. At 80 fpm, exhausts 95 CFM at .03" H2O static pressure.
Blower Requirements: None. FilterMate Portable Exhauster 3970000 is included.
Conformance: ANSI Z9.5, CAN/CSA C22.2, Modified ASHRAE 110, SEFA 1, UL
Lighting: None. Light Kit Accessory available.
Sash Opening Height: 8.0" (20.3 cm)
Type: Balance Enclosure
