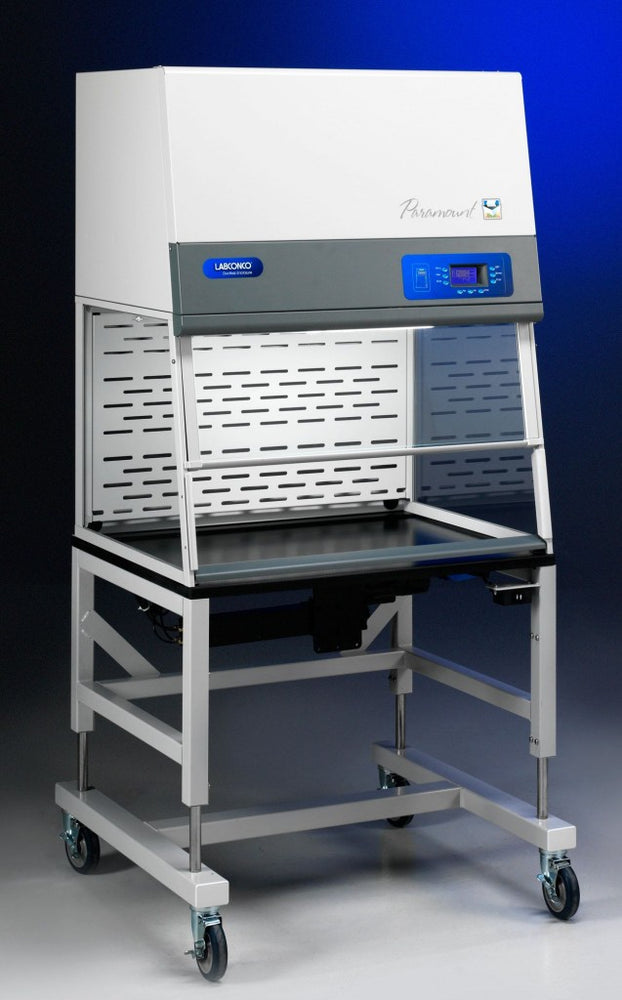

Labconco 3' Paramount Ductless Enclosure, Tall - 6963301

Labconco 3' Paramount Tall Ductless Enclosure, Tall

Paramount Ductless Enclosures are self-contained work stations, also known as ductless fume hoods, that use carbon filters to rid the laboratory of annoying or unsafe concentrations of organic solvents, formaldehyde, acid gases, ammonia, or radioisotopes. Unlike traditional fume hoods, they require no ducting so they can be moved from lab to lab. Paramount Ductless Enclosures are capable of using both carbon and 99.99% efficient HEPA filters for removing gaseous and particulate contaminants. Filters used in the Paramount are sold separately and come in seven types Ammonia-Amine, Acid-Sulfur, Organic Vapor, Formaldehyde-Formalin, Radioisotope, Mixed Bed and HEPA. Receive a technical analysis of the right product for your application with our Chemical Assessment form.

Compliance:

SEFA 9
SEFA 8
ASHRAE 110
ANSI Z9.5
UL 61010-1
CAN/CSA C22.2
CE Conformity (230V models)

Features:

Patented slotted rear baffle promotes horizontal laminar airflow to ensure vapors and fumes are drawn to the back of the enclosure without causing turbulence that could cause lack of containment
Patented Clean-Sweep Air Foil
Side-Entry Air Foils
Patented Upper Containment Sash Foil
Patented Upper Dilution Air Supply
Advanced electronic commutated motor (ECM) technology uses less energy and runs quieter than comparable models thus promoting an energy efficient and ergonomic work environment
Organic chemical vapor sensor detects chemicals breaking through the filter ensuring operator protection is maintained
Digital display of airflow and filter status, and touchpad control of enclosure operation
Ergonomic angled sash
Tempered safety glass front sash and sides
Epoxy coated aluminum frame
Steel rear baffle and plenum

Options:

International electrical configurations
360° visibility with optional glass rear wall and baffle
Seven different stackable filter types

Required Accessories:

Work surface and base
Paramount Filters

Optional Accessories:

Canopy Exhaust Transition
Sash Closures
Utility Shelves, Bottle Holder and Tissue Holder

Specifications:

Estimated Shipping Weight: 300.0 lbs
Estimated Shipping Weight metric: 136.0 kg
Dimensions: 36" w x 29" d x 53" h
Dimensions metric: 91 x 74 x 135 cm
Electrical: 115V, 50/60 Hz, 5 amps, Domestic

Attributes:

Conformance: ANSI Z9.5, ASHRAE 110, CAN/CSA C22.2, SEFA 1, UL
Exhaust volume: 60 fpm (170 CFM), 80 fpm (230 CFM), or 100 fpm (285 CFM) with sash opening of 12.0"
Filters Available: Radioisotope, Mixed Bed, Formaldehyde, Ammonia-Amine, Acid-Sulfur, Organic Vapor, HEPA
Interior Height: 32.0"
Nominal Width: 3'
Outside ducting: Optional
Required accessories: 4 Carbon or HEPA Filters
