Labconco 3' Protector Airo Filtered Fume Hood, HEPA Only 230V - 184300820

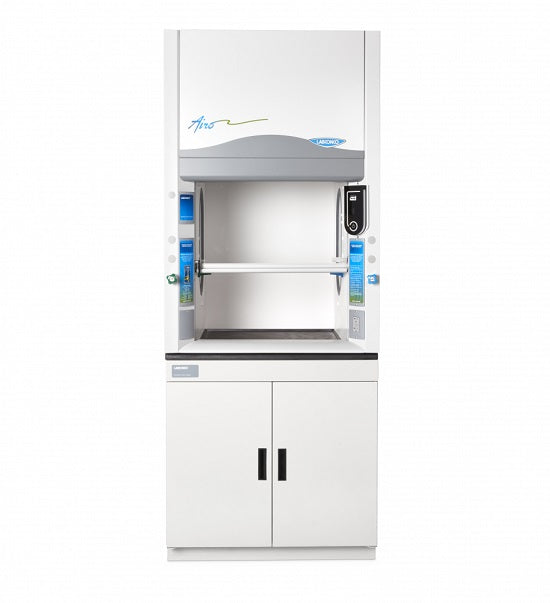

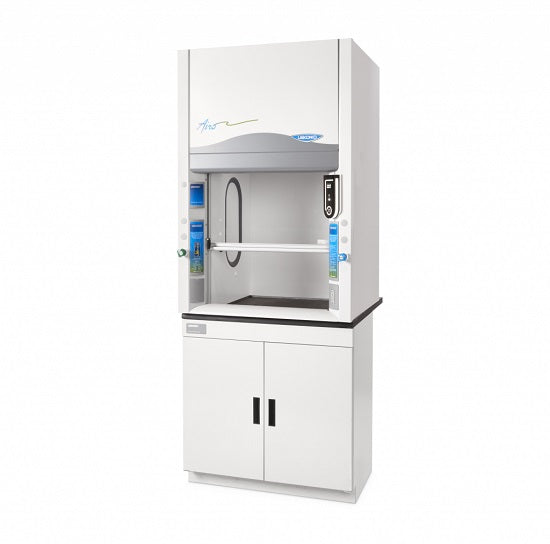

Labconco 3' Protector Airo Filtered Fume Hood, HEPA Only 230V

The Protector Airo Filtered Fume Hood requires no ducting and is available in 3' and 4' widths and 31.7" and 37.7" depths. Neutrodine Unisorb Filtration Technology offers comprehensive molecular filtration. eGuard communication software offers real-time monitoring on the user’s phone or computer. From a remote location, data such as usage authorization, filter saturation detection, sash position and temperature may be observed and managed.

Erlab-proven Neutrodine Unisorb Filters are the heart of GFH Filtration Technology.

Benchtop models include a fiberglass panelized liner. Models are available for carbon-only, carbon with acid sensor, carbon with formaldehyde sensor, or HEPA-only filtration. Filters are sold separately.

Features:

Eco-Foil air foil with aerodynamic Clean-Sweep airflow openings
Cord-Keeper Slots on left and right side of air foil
Removable front and side panels, and front and interior service access panels for access to plumbing and electrical wiring
By-pass airflow design
Glacier white powder-coated steel exterior
Chemical-resistant, fiberglass-reinforced, composite panel liner
Pre-wired vapor-proof LED lights for up to 63 foot candles rated for 50,000 hours
eGuard2 software communication
Factory-installed command module, fan button and light button
Roughing prefilter
Built-in exhaust fans to maintain 60 fpm face velocity at 16" sash opening height
Sound pressure of <60 dB(A) with sash at operating height and <48 dB(A) with sash closed
Sensor package for primary filter breakthrough of solvent and acid fumes, laboratory air quality, sash position, and temperature
Audible/visual alarms for breakthrough detection, temperature ≥40° C (104° F), fan failure and high sash position opening. At ≥60° C (140° F), all fans stop
Single piece, tempered safety glass vertical-rising sash with cable pulley, sash weight and powder-coated aluminum sash handle and tracks with airflow openings. Sash stop at 16" sash opening height on 4’ models and 13” sash opening height on 3’ models. Sash opens to 26" high for loading
Factory-prepared for up to two electrical duplex receptacles and four service fixtures
28.5" high sightline from the work surface and header panel
Power cord with plug

Fixtured Models May Feature:

Two pre-plumbed service fixtures with forged brass valves, lower right side with brass tubing for gas and lower left side with copper tubing for cold water. Components for converting either or both fixtures to air and vacuum are provided. Inlet tubing is not provided
One pre-wired GFCI electrical duplex receptacle on lower right side

Required Accessories (Not Included)

Neutrodine Unisorb Filters (except HEPA only models which require HEPA filters). Number of filters required is determined by the width of the hood
Work Surface
Base Cabinet or Stand

Options Available Include:

HEPA filter
Region-specific electrical plug configurations
Service fixtures

Compliance:

SEFA 9, DHIII
SEFA 8, Cabinet Surface Finish Tests
Modified ASHRAE 110
ANSI Z9.5-2011
AFNOR NF-X 15-211
ASTM E84-09C
UL Standard 61010-1
CAN/CSA C22.2 No. 61010-1

Specifications:

Estimated Shipping Weight: 435.0 lbs
Estimated Shipping Weight metric: 197.3 kg
Dimensions: 36" w x 31.7" d x 54.2" h
Dimensions metric: 91.4 x 80.5 x 137.7 cm
Electrical: 230V, 50/60 Hz, 5A

Attributes:

Airflow Type: Bypass
Product Subcategory: General Chemistry
Nominal Width: 3'
Air foil Type: Eco-Foil
Blower Requirements: Integral blower included
Conformance: AFNOR NF-X, ANSI Z9.5, ASTM E84, CAN/CSA C22.2, Modified ASHRAE 110, SEFA 9, UL 61010
Enclosure Height: 54.2"
Exterior Depth: 31.7" (80.5 cm)
Lighting: LED
Power Cord & Plug: 11.75' power cord with plug
Sash Type: Cable and pulley
Service Fixtures: 0
Style: Benchtop
