Labconco 3' XPert Balance Enclosure - 3930300

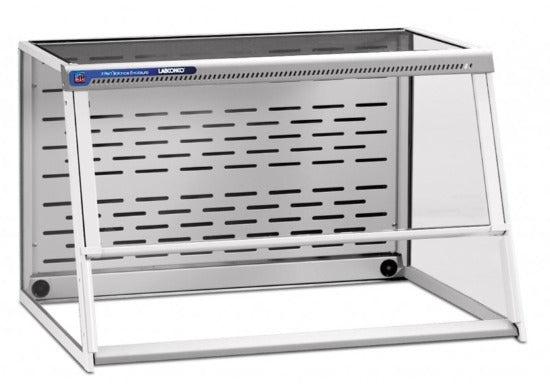

Labconco 3' XPert Balance Enclosure

XPert Balance Enclosures provide user protection by keeping powders, particulates and fume contained during weighing procedures. They are well suited for pharmaceutical research and other laboratory applications involving weighing of toxic substances. These vented balance safety enclosures may be ducted to the outside or connected to the FilterMate Portable Exhauster to be exhausted back into the laboratory through HEPA filters, carbon filters, or a combination of both HEPA and carbon filters.

Their ample, 23" interior depth (30" depth for "Deep" models) easily accommodates large micro and analytical balances, and a true bag-in/bag-out filter disposal system allows safe filter replacement.

Features:

Low profile fits in tight spaces
Deep 23" or 30" interior easily accommodates large micro and analytical balances
Patented Clean-Sweep air foil allows air to sweep the work surface for maximum containment
Upper containment sash foil bleeds air into the enclosure to direct concentrations of contaminants away from the operator's breathing zone
Upper dilution air supply introduces room air at the top of the sash to dilute concentrations in the upper chamber and bathes the back of the sash with clean air
Patented rear baffle with zones of perforations promotes horizontal laminar airflow to maximize containment. Airflow openings pull inflow air from under the air foil so that clean air continually flows over the air foil creating a constant barrier of protection from contaminants
Side-entry air foils allow air to sweep across the interior glass surfaces to enhance containment
Sturdy glacier white and gray, dry powder epoxy-coated aluminum frame and steel rear plenum and baffle dissipate static charge and provide durability and better corrosion resistance compared to acrylic models. No unreliable plastic-to-plastic bonding is used
Tempered safety glass front sash, sides and top offer excellent visibility, ambient light and protection. Glass provides improved fire, scratch and corrosion resistance than acrylic and dissipates static charge.
8", 10" or 12" high sash opening limits exhaust demand, conserves costly tempered room air and requires a smaller remote blower than most fume hoods
Ergonomic 20° angled sash allows a closer view, reduces glare and provides a more comfortable operating position than vertical sashes. The hinged sash pivots upward and locks to a loading height of 20"
Two utility ports with iris openings allow passage of tubing, electrical cords and interface cables from inside to back exterior for connection to services
Flexible exhaust options. 2" x 10" rectangular exhaust collars on the top and bottom allow the XPert Balance Enclosure to be connectedconnected to ductwork for exhausting to the outside or to a FilterMate Portable Exhauster for filtered removal of powders, particulates or fumes. Using the bottom exhaust collar keeps ductwork hidden, maximizing room visibility.
Particulate containment independently verified by SafeBridge Consultants, Inc
ASHRAE 110-1995 conformity as independently verified by ECT, Inc
Free validation package available. Contains SafeBridge Consultants, Inc. and ECT, Inc. Test Reports; Installation Qualification/ Operation Qualification (IQ/OQ) Protocol; and Maintenance Log.

Options:

Built-in Guardian 1000 Digital or Guardian Jr. Airflow Monitor with low voltage electrical cord, power pack and plug
International electrical configuration
XPert Balance Enclosure Systems. One catalog number includes the XPert Balance Enclosure with Guardian Jr. Airflow Monitor, FilterMate Portable Exhauster and Black Solid Epoxy Dished Work Surface

Required Accessories:

Connection to a remote blower or FilterMate Portable Exhauster.
Work surface.
Supporting base.
Carbon Filters for Some Models

Optional Accessories:

Fluorescent Light Kits for installation atop the Enclosure for enhanced illumination of the interior. Include auxiliary electrical receptacle with switch.
Transition Adapters for connecting ductwork routed either up or down
Exhaust Dampers to allow adjustment to the airflow
Utility Shelf Kit for attaching to the rear baffle perforations to hold a printer, utensils and other miscellaneous weighing supplies
Replacement HEPA Filter
Replacement Bag for HEPA Filter Bag-In/Bag-Out to ensure contamination of particulate matter during filter changing.

Specifications:

Estimated Shipping Weight: 135.0 lbs
Estimated Shipping Weight metric: 61.0 kg
Dimensions: 36"w x 29"d x 22.8"h

Attributes:

Width: 3'
Air Usage/Static Pressure with Sash At Working Height: At 60 fpm, exhausts 110 CFM at .04" H2O static pressure. At 80 fpm, exhausts 145 CFM at .06" H2O static pressure.
Blower Requirements: Remote blower or FilterMate Portable Exhauster(s) and filters required
Conformance: ANSI Z9.5, Modified ASHRAE 110, SEFA 1
Lighting: None. Light Kit Accessory available.
Sash Opening Height: 8.0" (20.3 cm)
Type: Balance Enclosure
With Built-In HEPA Filtration: No
