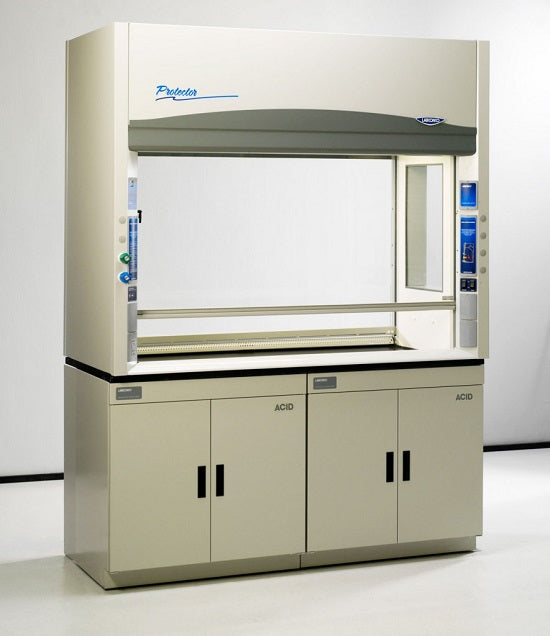

Labconco 4' Protector Pass-Through Laboratory Hood with 2 fixtures, 230V - 113400021

Labconco 4' Protector Pass-Through Laboratory Hood with 2 fixtures, 230V

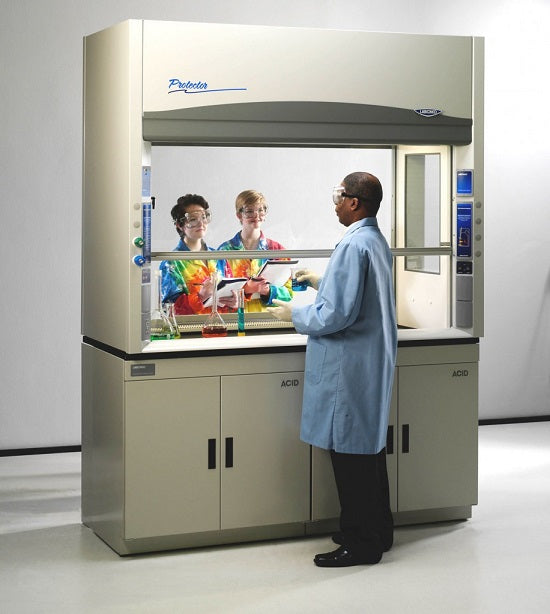

Protector Pass-Through Laboratory Hoods offer sashes on two sides allowing operation on either side of the fume hood. An audible alarm sounds to prevent simultaneous opening of both sashes. With unobstructed visibility from either side, this hood is ideal for conducting chemistry demonstrations. An optional right-side or left-side viewing window further enhances visibility. These hoods may also be installed in the wall between two rooms for sample preparation.

Features:

By-pass airflow design and by-pass blocks, one for each sash
Glacier white powder-coated steel and aluminum exterior
Powder-coated steel Eco-Foil air foil with Clean-Sweep airflow openings.
Cord-Keeper slots on left and right side of air foil
Chemical-resistant molded composite panel interior sides and pre-set baffle with flame spread less than 25 per ASTM E84
Powder-coated aluminum sash handle with Clean-Sweep openings and Clean-Sweep slots on the powder-coated steel sash tracks
Two tempered safety glass vertical-rising sashes with cable pulleys and sash stops mounted at 25" (63.5 cm) opening height
37.5" (95.3 cm) high sightline from the work surface to the header panel
Audible alarm that sounds when both sashes are open at the same time
Removable front and side panels and front access panels for access to plumbing and electrical wiring
Pre-wired T8 fluorescent lighting with vapor-proof design, one on each side and ADA-compliant light and blower switches on the front side
Factory prepared for up to eight service fixtures, four on each side
Powder-coated stainless steel 12.81" ID exhaust connection

Side Window Models Feature:

Right or left side-mounted tempered safety glass window, 14.9" x 23.9" (37.8 x 60.7 cm)

Fixtured Models May Features:

Two pre-plumbed service fixtures with forged brass valves with brass tubing for gas and copper tubing for cold water. Components for converting either or both fixtures to air or vacuum are provided. Inlet tubing is not provided.
One pre-wired GFCI electrical duplex receptacle on lower right side

Required Accessories (Not Included)

Remote blower
Ductwork
Work surface
Base cabinet or stand

Optional Accessories:

Service Fixture Kits (some models include service fixtures)
Electrical Duplex Kits (some models include electrical duplex)
Guardian Airflow Monitor Kits
Sash Stop Kits

Specifications:

Estimated Shipping Weight: 420.0 lbs
Estimated Shipping Weight metric: 190.5 kg
Dimensions: 48.0" w x 33.4" d x 59.0" h
Dimensions metric: 121.9 x 84.8 x 149.9 cm
Electrical: 208-230 volts, 50/60 Hz, 5 amps

Attributes:

Product Subcategory: Educational, General Chemistry
Nominal Width: 4'
Region: U.S. and Canada, International
Blower Requirements: Remote blower required
Conformance: ADA, ANSI Z9.5, ASHRAE 110, ASTM E84, CAN/CSA C22.2, CFR 29, NFPA 45, SEFA 1, UL 1805, UL 61010
Enclosure Height: 59.0"
Lighting: T8 fluorescent
Service Fixtures: 2
Style: Benchtop
