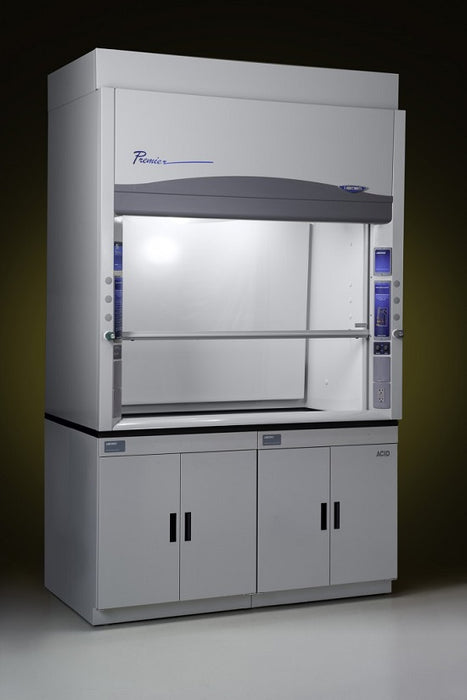

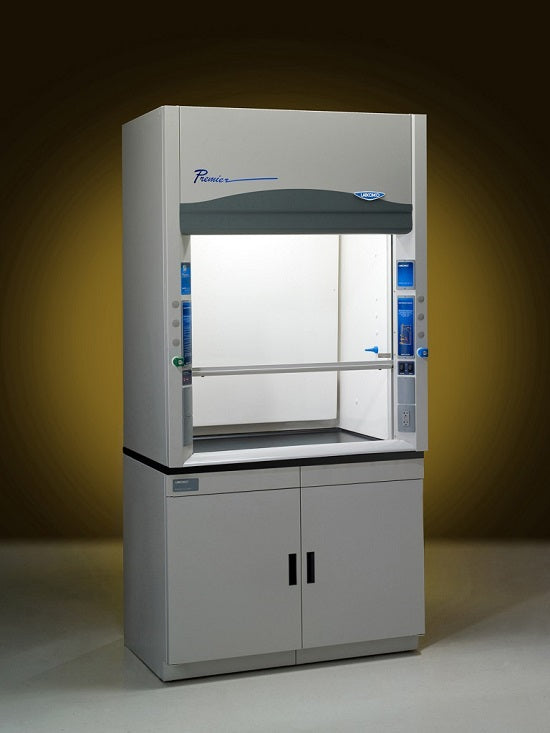

Labconco 4' Protector Premier Laboratory Hood with Built-In Exhaust Blower - 100400060

Labconco 4' Protector Premier Laboratory Hood with Built-In Exhaust Blower

Protector Premier Laboratory Hoods incorporate a sleek interior with a molded one-piece fiberglass liner, the signature feature of Labconco’s leading line of fume hoods since 1961. The one-piece liner of specially-formulated, fiberglass-reinforced polyester offers corrosion and fire resistance and easy clean up. Without seams, the interior has fewer points of deterioration for longer life.

These hoods are suitable for providing personal protection needed for general chemistry applications involving fumes and vapors. They meet the SEFA-1 standard of a low velocity, high performance hood and may be safely operated as low as 60 fpm. Choose from hoods designed to be used with a remotely-located blower or hoods that include a built-in blower — the only high performance hood with built-in blower available anywhere. Explosion-proof hoods with built-in blower are available for laboratories with potentially explosive/flammable atmospheres (Class 1 Div I or II).

Features:

By-pass airflow design
Eco-Foil Air Foil reduces energy consumption by 7-10% compared to flat air foils while its aerodynamic curve allows air to sweep the work surface for maximum containment. Clean-Sweep openings pull inflow air from under the air foil forcing air into non-turbulent air streams.
Cord-Keeper Slots on left and right side of air foil keep electrical cords out of the way
Glacier white powder-coated steel exterior is durable and corrosion-resistant
One-piece molded fiberglass liner and pre-set baffle(s) with flame spread less than 25 per ASTM E84
Tempered safety glass vertical-rising sash with powder-coated sash handle and Clean-Sweep openings
37.5" (95.3 cm) high sightline from the work surface to header panel allows taller users comfortable viewing while standing
Removable front and side panels, and front service access panels for access to plumbing and electrical wiring
Pre-wired LED lighting with vapor-proof design and ADA-compliant light and blower switches. Lighting rated to 50,000 hours. (Not on models with built-in explosion proof blower)
On models for use with remote blower, 12.8" ID exhaust connection(s)

Built-In Blower Models Feature:

Built-in belt-driven, corrosion-resistant exhaust blower with adjustable sheave, molded thermoplastic housing and non-sparking, coated aluminum impeller
10.8" ID exhaust connection on 4' models; 12.8" ID exhaust connection on 5' and 6' models

Fixtured Models May Feature:

Two pre-plumbed service fixtures with forged brass valves, lower right side with brass tubing for gas and lower left side wit copper tubing for cold water. Components for converting either or both fixtures to air and vacuum are provided. Inlet tubing is not provided.
One pre-wired GFCI electrical duplex receptacle on lower right side and, on 8' models only, one additional pre-wired GFCI electrical duplex receptacle on lower left side

Required Accessories (Not Included)

Remote blower (except for built-in blower models)
Ductwork
SpillStopper Work Surface
Base cabinet or stand

Optional Accessories:

Service Fixture Kits (some models include service fixtures)
Electrical Duplex Kits (some models include electrical duplex)
Guardian Airflow Monitor Kits
Distillation Grid Kits
Sash Stop Kits
Ceiling Enclosures and Rear Finish Panel Kits

Specifications:

Estimated Shipping Weight: 365.0 lbs
Estimated Shipping Weight metric: 166.0 kg
Dimensions: 48.0" w x 31.7" d x 66.0" h
Dimensions metric: 121.9 x 80.5 x 167.6 cm
Electrical: 208-230 volts, 60 Hz, 5 amps

Attributes:

Product Subcategory: General Chemistry
Nominal Width: 4'
Blower Requirements: Integral blower included
Conformance: ASHRAE 110, ASTM E84, CAN/CSA C22.2, CE, NFPA 45, SEFA 1, UL
Enclosure Height: 66.0"
Lighting: LED
Style: Benchtop
