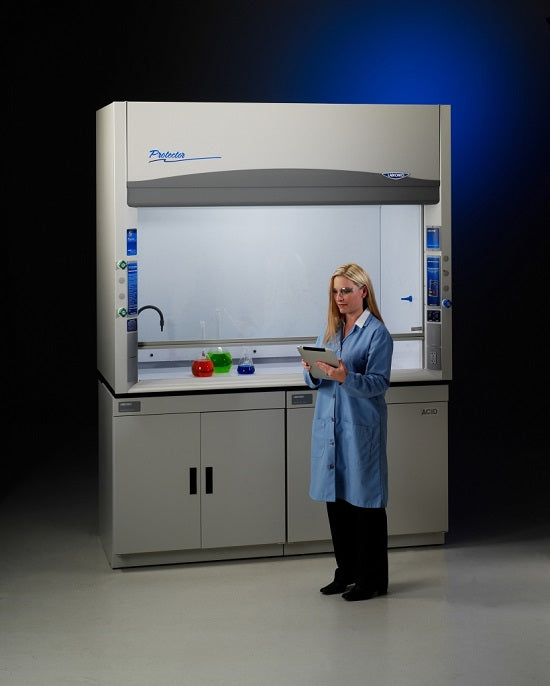

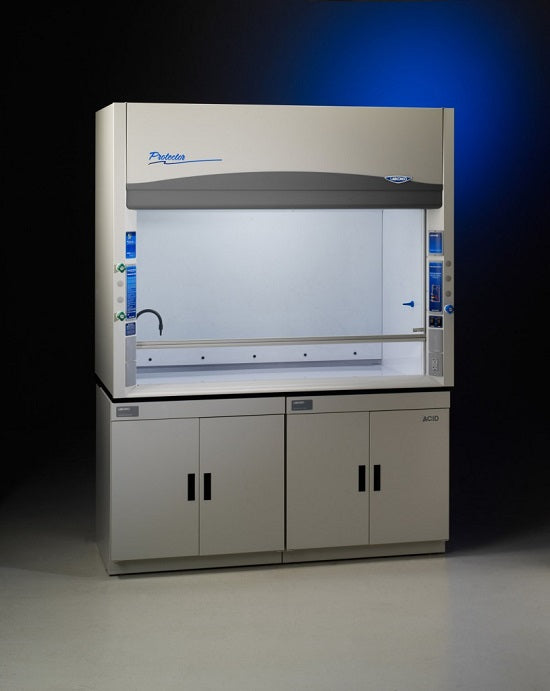

Labconco 4' Protector PVC Perchloric Acid Laboratory Hood, 2 Fixtures, 115V - 140410001

Labconco 4' Protector PVC Perchloric Acid Laboratory Hood

Protector PVC Perchloric Acid Laboratory Hoods feature washdown systems, integral work surfaces and drainage troughs so that they may be thoroughly rinsed after each use to prevent the accumulation of potentially reactive perchloric salts. Their liners of Type 1 unplasticized polyvinyl chloride are designed to withstand reaction from perchloric acid.

Features:

By-pass airflow design and by-pass block
Powder-coated stainless steel Eco-Foil air foil with Clean-Sweep airflow openings
Glacier white, powder-coated steel exterior
Cord-Keeper slots on left and right side of air foil
Heat-welded unplasticized PVC liner (30.0" interior depth) with integral work surface, drainage trough and pre-set baffle(s). PVC withstands maximum continuous operating temperature of 140° F (60° C) and has a flame spread less than 25 per ASTM E84
Black enamel-coated hardboard supporting surface
Powder-coated aluminum sash handle with Clean-Sweep openings and Clean-Sweep slots on the powder-coated stainless steel sash tracks
3/16" thick tempered safety glass vertical-rising sash with cable and pulley, suitable for perchloric acid use
Removable front and side panels and front access panels for access to plumbing and electrical wiring
Pre-wired LED lighting with vapor-proof design and ADA-compliant light and blower switches. Lighting rated to 50,000 hours
Built-in washdown system with internal piping and spray nozzles with maximum flow rate from 0.5-1.0 GPM
Washdown fitting located on top of hood to facilitate connection to external wash rings (wash rings not included)
12.75" OD PVC exhaust connection(s)

Fixtured Models May Feature:

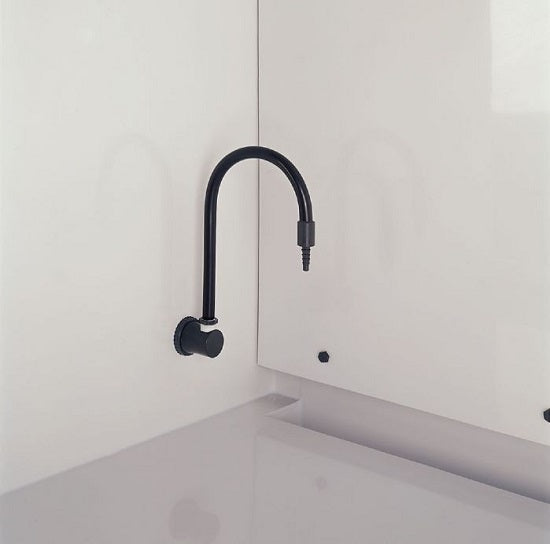

Two pre-plumbed service fixtures with forged brass valves, lower right side with brass tubing and plastic serrated hose connector for gas and lower left side with copper tubing and gray PVC rigid gooseneck faucet for cold water. Components for converting the lower right fixture to air or vacuum are provided. Inlet tubing is not provided.
One pre-wired GFCI electrical duplex receptacle on lower right side and, on 8' models only, one additional pre-wired GFCI electrical duplex receptacle on lower left side

Required Accessories (Not Included)

Dedicated remote PVC blower
Wash rings and other ductwork
Base cabinet or stand

Optional Accessories:

Service Fixture Kits
Electrical Duplex Kits
Guardian Airflow Monitor Kits
Sash Stop Kits
Ceiling Enclosure and Rear Finish Panel Kits

Compliance:

SEFA 1
NFPA 45
ASTM E84-09C
ASHRAE 110
ANSI Z9.5
SEFA 8
CFR 29, Part 1910
UL 61010-1
CAN/CSA C22.2 No. 61010.1
UL 1805

Specifications:

Estimated Shipping Weight: 540.0 lbs
Estimated Shipping Weight metric: 244.9 kg
Dimensions: 48.0" w x 37.7" d x 59.0" h
Dimensions metric: 121.9 x 95.8 x 149.9 cm
Electrical: 115 volts, 50/60 Hz

Attributes:

Product Subcategory: Perchloric Acid
Nominal Width: 4'
Blower Requirements: Remote blower required
Conformance: ANSI Z9.5, ASHRAE 110, ASTM E84, CAN/CSA C22.2, CFR 29, NFPA 45, SEFA 1, SEFA 8 (Cabinet Surface Finish), UL
Enclosure Height: 59.0"
Lighting: T8 fluorescent
Service Fixtures: 2
Style: Benchtop
