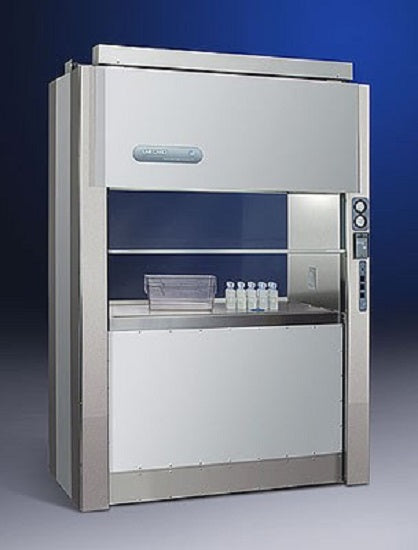

Labconco 4' PuriCare Dual Sided Biosafety Cabinet

The PuriCare Dual Sided Biosafety Cabinet is designed for permanent installation through an opening in the wall between a vivarium “clean” room and “dirty” room that is exposed to dust and other particles present in the lab environment. Labconco tests confirm that the cabinet meets national standards established for personnel and product protection for Class II biological safety cabinets.

Features:

Nominal inflow velocity of 105 feet per minute (fpm) at 8" high sash opening
Nominal downflow velocity of 55 fpm
Particulate-free ISO Class 5 air (formerly Class 100)
Intrinsically-safe negative pressure design
Contain-Air Negative Pressure Channel
Two 99.99% efficient HEPA filters (one supply and one exhaust)
Prefilters below the work surface to remove large particles and prolong HEPA filter life
Two ECM blowers with automatic speed compensation
Lower-mounted motor/blower with voltage-compensating speed controls
Type 304 stainless steel diffuser and removable work surface
Stainless steel and glacier white powder-coated steel exterior
Fully-closing, 1/4" thick tempered safety glass sashes with anti-racking mechanism and 17.75" (45 cm) loading height opening
Two “clean side”-mounted, Minihelic pressure gauges for monitoring differential pressure across the upper and lower HEPA filters
Two 25-watt fluorescent lights
Airflow monitor mounted on “clean side” with three-light indicator and audible/visual alarm
Fluorescent light and blower switches with operation from either side
Audible/visual sash alarms mounted on both sides that alert the operator when both sashes are open
Two interior-mounted electrical duplexes with ground fault interruption and splash covers
12" ID outlet for exhaust through a canopy to the outside or vent back into facility
Single point top-mounted internal junction box for hard wiring by a qualified electrician
Designed to be sealed to the floor for efficient through-thewall installation
Stainless steel mounting angles and panels to finish and seal gaps between the wall and exterior of the cabinet
Full three year limited warranty on parts and labor (excluding filters)

Specifications:

Estimated Shipping Weight: 924.0 lbs
Estimated Shipping Weight metric: 419.0 kg
Dimensions: 60.5" w x 30.3" d x 97.8" h

Attributes:

Built-In Options: None
Light Fixtures: Ultraviolet
Nominal Exterior Width: 4' (122 cm)
Power Cord & Plug: None. Dedicated 20 amp circuit required
Primary Application: Material transfer and cage changing
