Labconco 4' Purifier Cell Logic+, Class II A2 with Scope-Ready, Service Fixture, Vacu-Pass and Base Stand - 332491151

Labconco 4' Purifier Cell Logic+, Class II A2 with Scope-Ready, Service Fixture, Vacu-Pass and Base Stand

Purifier Cell Logic+ Class II, Type A2 Biosafety Cabinets provide personnel, product and environmental protection from hazardous particulates such as agents that require Biosafety Level 1, 2 or 3 containment. Other appropriate applications include work with antineoplastic drugs, genetic material, asbestos and additional substances that generate hazardous airborne particulates. All models are NSF compliant.

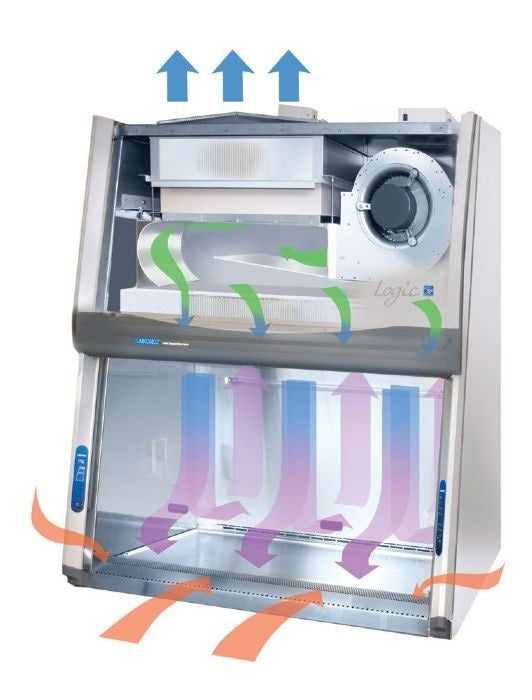

These biological safety cabinets are designed to discharge HEPA-filtered exhaust air directly into the laboratory, or into an exhaust system through the optional Canopy Connection. When canopy-connected, the biosafety cabinets may be used for applications involving minute quantities of volatile toxic chemicals and tracer amounts of radionuclides as an adjunct to microbiological research.

Features:

Electronically Commutated Motor (ECM)
Constant Airflow Profile (CAP) airflow monitoring system
Intrinsically-safe negative pressure design
Air-Wave Entry System
Contain-Air Negative Pressure Channel
Supply and exhaust 99.99% efficient HEPA filters. 99.999% efficient ULPA filters available

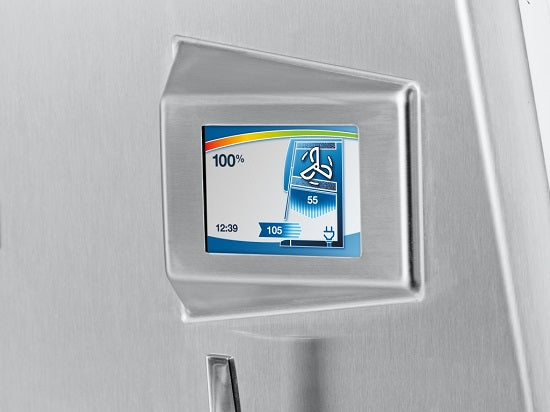

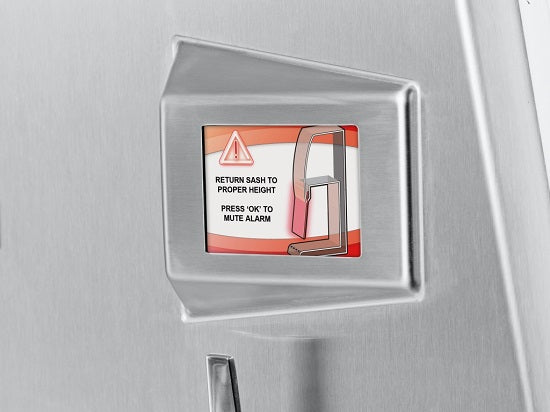

Interior-mounted, line-of-sight color LCD with MyLogic OS. Displays filter life, status messages for alarm conditions and alerts. 8 languages available
Bright, 90-150 footcandle, glare-free LED lighting located outside the contaminated work area
Fully-closing, clear 1/4" tempered safety glass sash
Curved stainless steel inlet grille with Reserve-Air Secondary Airflow Slots

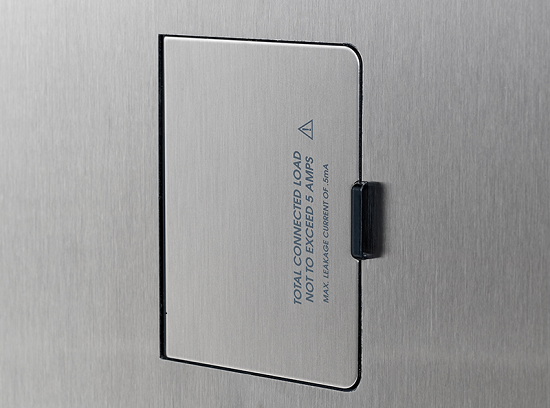

Two electrical duplex receptacles. Flush-mounted-stainless steel with dampened hinges. Single outlets on 230V models. One outlet on each side, with ground fault interruption (115V)
Smart-Start System user-programmable start up & shut down
Night-Smart System reduces blower speed when sash is closed
Leak-tight stainless steel interior & powder-coated steel exterior
Removable towel catch located under work surface
Code-activated electronic security lock
22.6" (57 cm) max. sash opening & 27.0" (69 cm) viewing height
10° Angled sash with counterbalanced, easy lift mechanism
ADA-Compliant touchpad control on right side post
Noise level <63 dBA
Heat load 990 BTU/hour (4' models)
Removable, seamless type 304 stainless steel, dished work surface with lift out knobs
Nominal inflow velocity of 105 fpm (0.5 m/sec)
Nominal downflow velocity of 55 fpm (0.3 m/sec)
Approximately 70% air recirculation
Overall depth x height: 31.2" x 61.7" (79.2 x 156.7 cm)
10' (3 m) power cord with plug
Built-in timer and digital clock
Five year warranty

Required Accessories (Not Included):

Supporting base if non-welded stand option is not selected

Options:

International electrical configurations

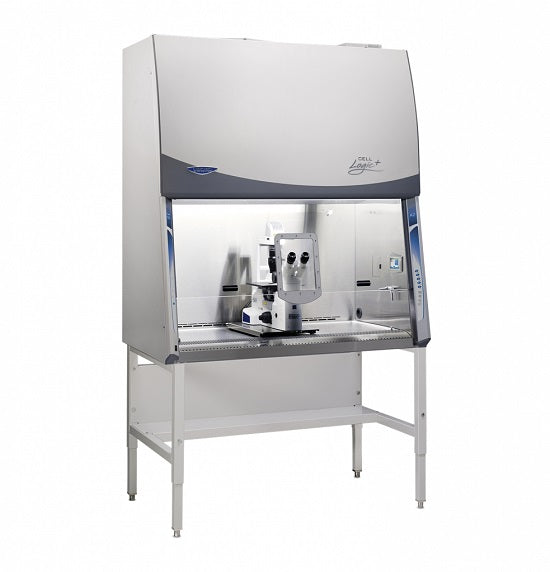

Non-welded, NSF-Approved, powder-coated steel telescoping base stand with fixed feet

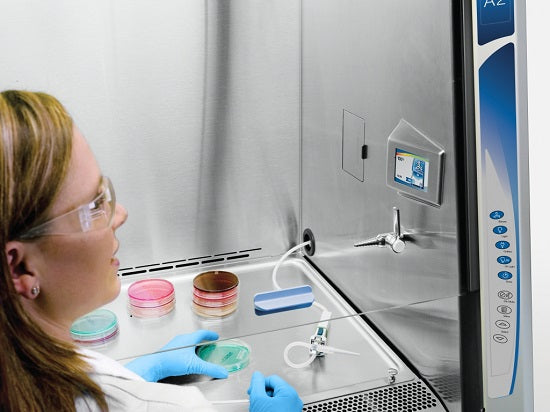

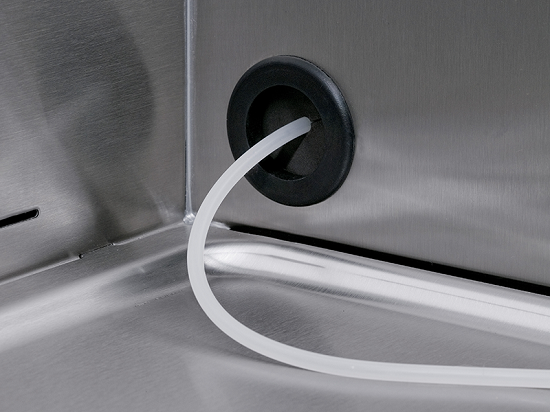

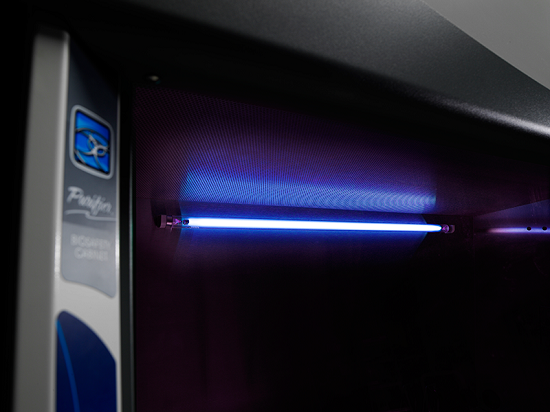

Accessory Package: 254 nm UV lamp (not included on Scope-Ready models), ADA-compliant service fixture(s) with ball-type valve(s), and NSF-Approved Vacu-Pass Cord & Cable Portal

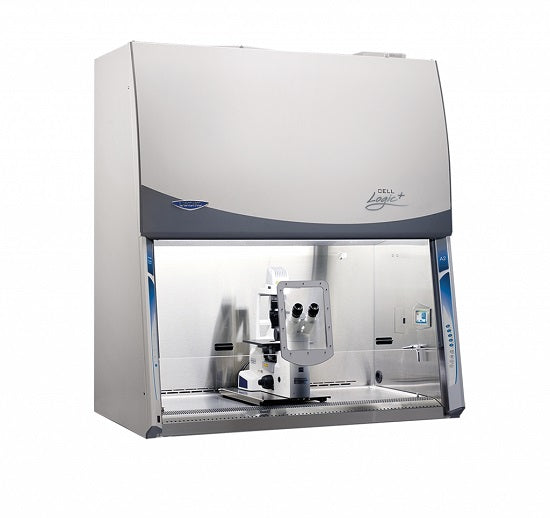

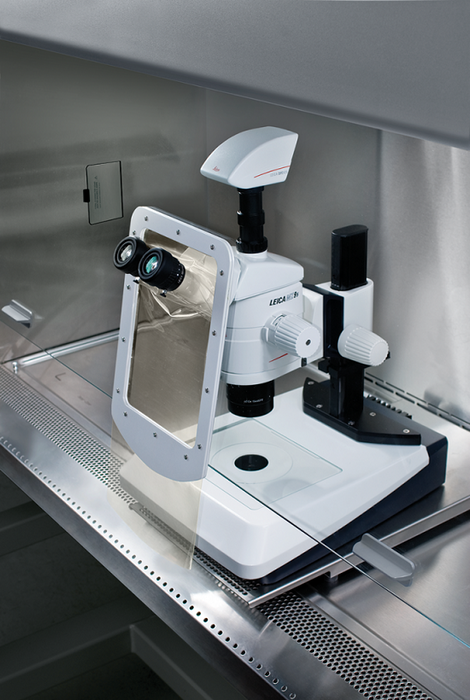

Cell Logic+ Packages: Scope-Ready Package consisting of 7.0" wide x 10.5" high (18 x 27 cm) sash cutout and Pure-Vu Seal with powder-coated steel collar. Stand-Still Isolation Platform is required and sold separately.

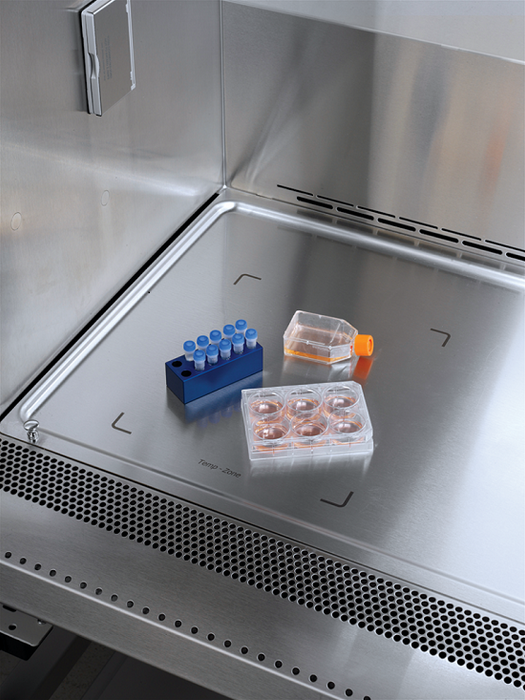

Temp-Zone Package consisting of temperature-controlled work area, 10.5" wide x 12.0" deep (27 x 30 cm) located on the left side of the work surface. Circulator is required (not included). Circulator requirements: minimum flow rate of 0.4-0.5 GPM (1.5-1.9 LPM), typical volume of 6 liters, and temperature of 0-50° C (chiller/heater).

Compliance:

ETL listed
NSF International and modified ASHRAE 110 compliant
ADA-compliant (height of controls and receptacles)
CE Conformity marking (230V models)
ISO 5 conditions per ISO 14644-1 and 2

Specifications:

Estimated Shipping Weight: 670.0 lbs
Estimated Shipping Weight metric: 303.9 kg
Dimensions: 54.3" w x 31.2" d x 89.3-95.3" h
Dimensions metric: 137.9 x 79.2 x 226.8-242.1 cm
Electrical: 230V, 50/60 Hz, 6A

Attributes:

Product Subcategory: Class II, Type A2 Biological Safety Cabinets
Nominal Width: 4'
Protection Type: Product and Personnel
Nominal Sash Opening: 9" (22.5 cm)
Built In Options: Valves (Air, Vacuum, etc.), Cord, Cable & Tubing Portal, Microscope-Compatible
Base Stand: Included
Conformance: ADA, CE, NSF 49
Exhaust Volume: 354-433 CFM (with optional canopy)
Lighting: LED
Power Cord & Plug: British (UK), 230V
Service Fixtures: One
