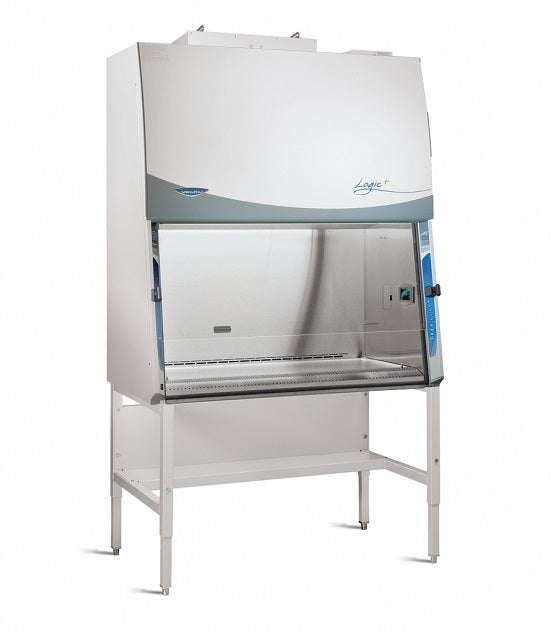

Labconco 4' Purifier Logic+ Class II A2 Biological Safety Cabinet with 20 cm Sash Opening - 302488050

Labconco 4' Purifier Logic+ Class II A2 Biological Safety Cabinet with 20 cm Sash Opening

Purifier Logic+ EN 12469 Certified Class II, Type A2 Biosafety Cabinets provide personnel, product and environmental protection from hazardous particulates such as agents that require Biosafety Level 1, 2 or 3 containment. Other appropriate applications include work with antineoplastic drugs, genetic material, asbestos and additional substances that generate hazardous airborne particulates. All models are third-party tested and certified to the EN 12469 Standard by TÜV Rheinland.

These biological safety cabinets are designed to discharge HEPA-filtered exhaust air directly into the laboratory, or into an exhaust system through the optional Canopy Connection. When canopy-connected, the biosafety cabinets may be used for applications involving minute quantities of volatile toxic chemicals and tracer amounts of radionuclides as an adjunct to microbiological research

Features:

1.2 m (4') wide
20 cm sash height
230V operation
Quick-sealing sash and louver plate lock creates a leak-tight seal for easy decontamination
Electronically Commutated Motor (ECM)
Constant Airflow Profile (CAP) Technology airflow monitoring system that communicates with the ECM to deliver the precise volume of air as required and automatically adjust as filters load without relying on airflow sensors
Air-Wave Entry System
Contain-Air Negative Pressure Channel
Smart-Start System that allows the user to program start up and shut down operations
Night-Smart System that idles the blower when the sash is fully closed
Built-in interval or elapsed timer for experiment monitoring, fluorescent light or UV light control (on models with UV light)
Digital clock
Removable towel catch located under work surface
Bright, 90-100 foot candle, glare-free fluorescent lighting located outside the contaminated work area
LCD information center with “Filter Life Remaining” bar graph, status line for alarm conditions and alerts to warn when filter life diminishes to 20% and 0%
Electronic security lock (optional activation) that requires code to operate the cabinet
Two single electrical receptacles, located one on each side
Intrinsically safe negative pressure design
Fully-closing, clear 1/4" tempered safety glass sash
Stainless steel inlet grille with Reserve-Air Secondary Airflow Slots
Supply and exhaust 99.99% efficient HEPA filters. Contact Labconco for optional 99.999% efficient ULPA filters.
Leak-tight stainless steel interior
Interior-mounted, line-of-sight, full color LCD information center with easy-to-understand MyLogic OS
54 cm (21.7") maximum sash opening height and 69 cm (27.0") viewing height
Curved inlet grille for forearm support
Flush-mounted stainless steel electrical receptacle covers with dampened hinges
Removable, seamless type 304 stainless steel, dished work surface with lift out knobs
10° Angled sash with counterbalanced, anti-racking mechanism for ease of lifting
Touchpad control on right-hand side post for manual activation of blower, light(s), timer, electrical receptacles, audible alarm mute and menu selection
Noise level < 60 dBA
Heat load 990 BTU/hour
Nominal inflow velocity of 105 feet per minute (fpm) (0.5 m/sec)
Nominal downflow velocity of 55 fpm (0.3 m/sec)
Approximately 70% air recirculation
Powder-coated steel exterior
CE conformity marking
TÜV Certified to EN 12469
Class 5 conditions per ISO 14644-1 and 2 (formerly Class 100)
Overall depth x height: 81.1 x 165.2 cm (31.9" x 65.0")
3 m (10') power cord with plug
Five year warranty

Options:

British and Schuko electrical configurations
254 nm UV lamp
Service fixture(s) with ball-type valve(s)
Vacu-Pass Cord & Cable Portal

Required Accessory (Not Included):

Supporting base

Specifications:

Estimated Shipping Weight: 750.0 lbs
Estimated Shipping Weight metric: 340.0 kg
Dimensions: 48.0" w x 31.9" d x 65.0" h
Dimensions metric: 121.9 x 81.1 x 165.2 cm
Electrical: 230V, 50/60 Hz, 6A

Attributes:

Product Subcategory: Class II, Type A2 Biological Safety Cabinets
Nominal Width: 4'
Protection Type: Product and Personnel
Nominal Sash Opening: 8" (20 cm)
Base Stand: Required (not included)
Conformance: CE, EN 12469
Exhaust Volume: 269-296 CFM
Lighting: Fluorescent
Power Cord & Plug: British (UK), 230V
