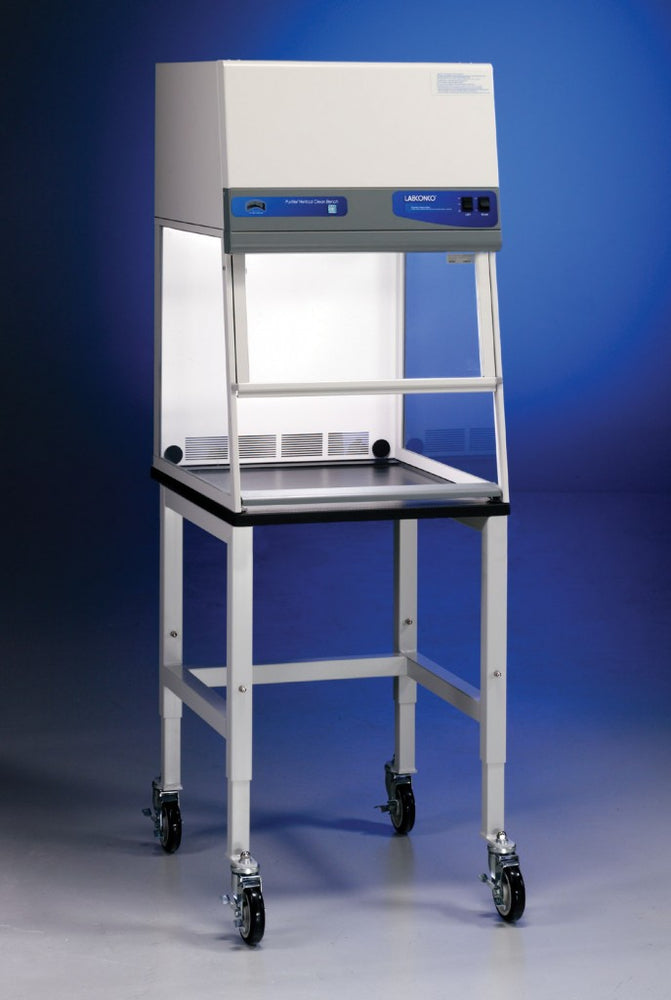

Labconco 4' Purifier Vertical Clean Bench with Airflow Monitor - 3970423

Labconco 4' Purifier Vertical Clean Bench with Airflow Monitor

Purifier Vertical Clean Benches Direct HEPA-Filtered air downward over the work area to provide ISO Class 5 (formerly Class 100) conditions and protect your work from particulate contamination. Applications for clean benches include plant tissue culture, media plate preparation, electronics inspection, medical device assembly and pharmacy drug preparation. Because they do not provide protection to the user, they should not be used in conjunction with biohazardous material, toxins or radionuclides.

Labconco also offers Purifier Horizontal Clean Benches that direct HEPA-Filtered air horizontally over the work area and Purifier Filtered PCR Enclosures, which are specialized vertical clean benches designed for polymerase chain reactions.

Features:

Nominal downflow velocity of 45-65 fpm
Aerodynamic air foil
Supply HWPA filter, 99.99% efficient on particles 0.3 micron
ISO Class 5 air (formerly Class 100 per Federal Standard 209E)
Disposable prefilter
Variable speed built-in blower with motorized impeller and solid state control rated for 10 amps
Intrinsically-sound, negative pressure design
Minihelic pressure gauge
Air diffuser
UV-resistant, glacier white and gray, powder-coated aluminum and steel construction
UV-opaque and resistant 1/4" thick tempered safety glass sash and sides
Fluorescent lamp
Light and blower switches
9.4" high sash opening
Ergonomic 10° angled and hinged sash that pivots upward, locks to a loading height of 20" and has wiping seals to promote ISO Class 5 conditions
Two utility ports with iris openings and plugs
ETL Listing (115 volt, 60 Hz models)
One year warranty on parts and service

Options:

Built-in Guardian Airflow Monitor that continuously monitor downflow airflow and has two LED lights to indicate when airflow is within or outside set point range.
254 nm UV lamp with 3-way switch (fluorescent, UV and off) and protection panel interlocked with the UV lamp that closes the sash opening
2', 3' and 4' widths
International electrical configurations

Required Accessories:

Supporting work surface. See Solid Epoxy Dished Work Surfaces
Supporting base. See Adjustable Height Base Stands

Optional Accessories:

General Accessories
IV Bar Kit

Compliance:

UL Standard 3101-1/61010-1 (115 volt models)
CAN/CSA Standard C22.2 No. 1010.1 conformity (115 volt models)
CE Conformity marking (230 volt models)

Attributes:

Built-in Options: Airflow monitor
Laminar Flow: Vertical
Nominal Width: 4'
Conformance: CE
Power Cord & Plug: 230V, 10A, no plug

Specifications:

Estimated Shipping Weight: 195.0 lbs
Estimated Shipping Weight metric: 88.0 kg
Dimensions: 48" w x 28.6" d x 36.8" h
Electrical: 230 volts, 50 Hz, 3 A
