Labconco 5' Protector Echo Floor-Mounted Filtered Fume Hood 230V

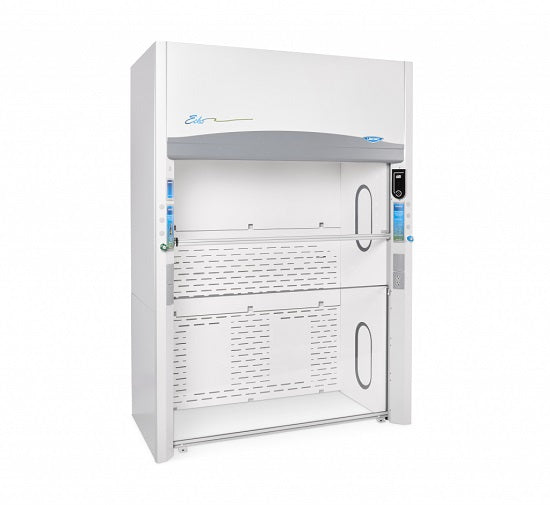

Protector Echo Filtered Floor-Mounted Fume Hoods provide the interior height needed for bulky apparatus with no ducting required. These hoods feature fully-closing, vertical-rising sashes. eGuard communication software offers real-time monitoring on the user’s phone or computer. From a remote location, data such as usage authorization, filter saturation detection, sash position and temperature may be observed and managed.

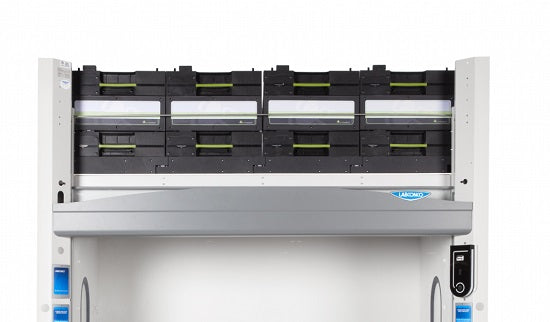

The Echo uses Neutrodine Unisorb Filters, the most comprehensive, safety-driven carbon filter available. This single molecular filter type can easily adsorb most chemicals and mixtures, taking the guesswork out of filter selection. Erlab-proven Neutrodine Filters are the heart of GFH Filtration Technology.

Floor-Mounted models include a fiberglass panelized liner and three exterior depths: 37.7”, 43.7”, and 55.7”. Models are available for carbon-only, carbon with acid sensor, carbon with formaldehyde sensor, or HEPA-only filtration.

Features:

Eco-Foil air foil with aerodynamic Clean-Sweep airflow openings
Cord-Keeper Slots on left and right side of air foil
Single piece, tempered safety glass vertical-rising sashes with cable pulley, sash weight and powder-coated aluminum sash handle and tracks with Clean-Sweep airflow openings. Upper sash stop at 16" sash open height. Upper sash opens to 26" high for loading chemicals. Lower sash opens up from floor to 55.2" for transporting carts, drums and apparatus
Removable front and side panels, and front and interior service access panels for access to plumbing and electrical wiring
eGuard2 software communication
Smart control module with wifi, Bluetooth and ethernet connectivity
Factory-installed command module, fan button and light button
Rear baffle
By-pass airflow design
Glacier white powder-coated steel exterior
Chemical-resistant, fiberglass-reinforced, composite panel liner
Pre-wired vapor-proof LED lights for up to 63 foot candles rated for 50,000 hours: 2 lights per 4' model, 3 lights per 5' model, 4 lights per 6' model, and 5 lights per 8' model
Factory-prepared for up to two electrical duplex receptacles and six service fixtures
Roughing prefilter: 2 each per 4' model, 3 each per 5' model, 4 each per 6' model, and 5 each per 8' model
Built-in exhaust fans: 2 each per 4' model, 3 each per 5' model, 4 each per 6' model, and 5 each per 8' model, to maintain 60 fpm face velocity with only an upper sash opening height of 16”
Sound pressure of <60 dB(A) with sash at operating height and <48 dB(A) with sash closed
Sensor package for primary filter breakthrough of solvent and acid fumes, laboratory air quality, sash position, and temperature
Audible/visual alarms for breakthrough detection, temperature ≥40° C (104° F), fan failure and high sash position opening. At ≥60° C (140° F), all fans stop
Power cord with plug

Fixtured Models May Feature:

Two pre-plumbed service fixtures with forged brass valves, lower right side with brass tubing for gas and lower left side with copper tubing for cold water. Components for converting either or both fixtures to air and vacuum are provided. Inlet tubing is not provided
One pre-wired GFCI electrical duplex receptacle on lower right side, and on 8' models only, one additional pre-wired GFCI electrical duplex receptacle on the lower left side

Required Accessories (Not Included)

Neutrodine Unisorb Filters (except HEPA only models which require HEPA filters). Number of filters required is determined by the width of the hood

Options Available Include

HEPA filter
Region-specific electrical plug configurations
Service fixtures

Compliance:

SEFA 9, DHIII
SEFA 8, Cabinet Surface Finish Tests
Modified ASHRAE 110
ANSI Z9.5-2011
AFNOR NF-X 15-211
ASTM E84-09C
UL Standard 61010-1
CAN/CSA C22.2 No. 61010-1

Specifications:

Estimated Shipping Weight: 1,015.0 lbs
Estimated Shipping Weight metric: 460.4 kg
Dimensions: 60" w x 55.7" d x 102.2" h
Dimensions metric: 152.4 x 141.5 x 259.6 cm
Electrical: 230V, 50/60 Hz, 5A

Attributes:

Airflow Type: Bypass
Product Subcategory: General Chemistry
Nominal Width: 5'
Region: International
Air foil Type: Eco-Foil
Blower Requirements: Integral blower included
Conformance: AFNOR NF-X, ANSI Z9.5, ASTM E84, CAN/CSA C22.2, Modified ASHRAE 110, SEFA 9, UL 61010
Enclosure Height: 102.2"
Exterior Depth: 55.7" (141.5 cm)
Lighting: LED
Power Cord & Plug: 11.75' power cord with plug
Sash Type: Cable and pulley
Service Fixtures: 2
Style: Floor-Mounted
