Labconco 5' Protector Premier I-S Laboratory Hood - 100506000

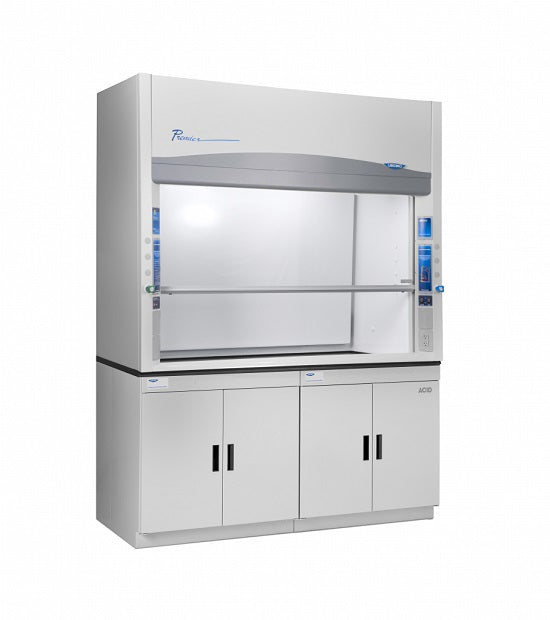

Labconco 5' Protector Premier I-S Laboratory Hood

Protector Premier I-S Laboratory Hoods incorporate a sleek interior with a molded one-piece fiberglass liner, the signature feature of Labconco’s leading line of fume hoods since 1961. The one-piece liner of specially-formulated, fiberglass-reinforced polyester offers corrosion and fire resistance and easy clean up. Without seams, the interior has fewer points of deterioration for longer life.

Designed for use with Intelli-Sense Multi-Speed Blowers, Protector Premier I-S Hoods feature integrated sash position blower controls. As the sash is raised or lowered, sensors alert the blower to change speeds to maintain a safe face velocity. That face velocity is displayed on the factory-installed Guardian Digital Airflow Monitor for users’ peace of mind.

These hoods are suitable for providing personal protection needed for general chemistry applications involving fumes and vapors. They meet the SEFA-1 standard of a low velocity, high performance hood and may be safely operated as low as 60 fpm.

Features:

By-pass airflow design
Eco-Foil Air Foil with aerodynamic Clean-Sweep airflow openings
Cord-Keeper Slots on left and right side of air foil
Factory-installed Intelli-Sense Blower control box
Factory-installed sash position activated blower speed switches
Factory-installed Guardian Digital Airflow Monitor
Glacier white powder-coated steel exterior
One-piece molded fiberglass liner and pre-set baffle(s) with flame spread less than 25 per ASTM E-84
Tempered safety glass vertical-rising sash with powder-coated sash handle
37.5" (95.3 cm) high sightline from the work surface to header panel
Pre-wired LED lighting with vapor-proof design and ADA-compliant light and blower switches. Lighting rated to 50,000 hours.
Removable front and side panels, and front service access panels for access to plumbing and electrical wiring
Molded fiberglass 12.81" ID exhaust connection(s)

Fixtured Models May Feature:

Two pre-plumbed service fixtures with forged brass valves, lower right side with brass tubing for gas and lower left side with copper tubing for cold water. Components for converting either or both fixtures to air and vacuum are provided. Inlet tubing is not provided.
One pre-wired GFCI electrical duplex receptacle on lower right side and, on 8' models only, one additional pre-wired GFCI electrical duplex receptacle on lower left side

Required Accessories (Not Included)

Intelli-Sense Multi-Speed Remote Blower (without control box)
Ductwork
Work Surface
Base Cabinet or Stand
Dedicated Exhaust

Optional Accessories:

Service Fixture Kits (Some models include service fixtures)
Electrical Duplex Kits (Some models include electrical duplex)
Distillation Grid Kits
Sash Stop Kits
Ceiling Enclosure and Rear Finish Panel Kits

Compliance:

CFR 29, Part 1910
Exceed SEFA 1 definition when tested to ASHRAE 110
NFPA 45
ASTM E84-09C
ANSI Z9.5
UL 61010-1
CAN/CSA C22.2 No. 61010-1
UL 1805
CE Conformity Marking (230 volt models)
SEFA 8
ADA (Contact Labconco for ADA-compliant models)

Specifications:

Estimated Shipping Weight: 420.0 lbs
Estimated Shipping Weight metric: 190.5 kg
Dimensions: 60.0" w x 31.7" d x 59.0" h
Dimensions metric: 152.4 x 80.5 x 149.9 cm
Electrical: 100-115V, 50/60 Hz, 10A

Attributes:

Product Subcategory: General Chemistry
Nominal Width: 5'
Blower Requirements: Remote blower required
Conformance: ADA, ANSI Z9.5, ASHRAE 110, ASTM E84, CAN/CSA C22.2, CFR 29, NFPA 45, SEFA 1, UL 1805, UL 61010
Enclosure Height: 59.0"
Exterior Depth: 31.7" (80.5 cm)
Lighting: LED
Service Fixtures: 0
Style: Benchtop
