Labconco 5' Protector XVS Ventilation Station - 4865060

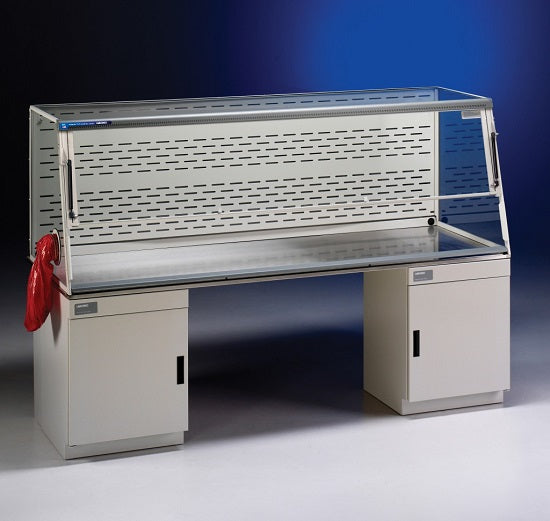

Labconco 5' Protector XVS Ventilation Station

Protector XVS Ventilation Stations may be used as light duty fume hoods, science classroom work stations, solvent cleaning work bays, weighing stations or for pathology and cytology. With glass tops and sides and low profiles, they are well suited for educational settings. Patented (U.S. Patent No. 6,461,233) features including the Clean-Sweep air foil and zone-perforated rear baffle maximize containment.

Protector XVS Ventilation Stations may be ducted to the outside or connected to the FilterMate Portable Exhauster for HEPA and/or Carbon Filtered exhaust back into the laboratory.

Features:

By-pass airflow design
Deep interior of 23.4" or 30.0" depending on the model easily accommodates a variety of apparatus including large balances
Patented Clean-Sweep air foil
Upper containment sash foil bleeds air into the enclosure to direct concentrations of contaminants away from the operator's breathing zone.
Upper dilution air supply introduces room air at the top of the sash to dilute concentrations in the upper chamber and bathes the back of the sash with clean air
Patented pivoting rear baffle with zones of perforations promotes horizontal laminar airflow to maximize containment
Side-entry air foils
Glacier white and gray, powder-coated aluminum frame and steel rear plenum and baffle. No unreliable plastic-to-plastic bonding is used
Tempered safety glass front sash, sides and top offer excellent visibility, ambient light and protection
Ergonomic 20° angled and hinged, pivoting sash with wiping seal. Sashes on 5', 6' and 8' models incorporate an external gas-assist lift
8", 10" or 12" high sash opening depending on the model. Models with 8.0 sash opening height have 16.5" locking height and 19.0" maximum loading height. Models with 10.0" or 12.0" sash opening height have 25.75" locking height and 28.25" maximum loading height.
Two utility ports with iris openings and plastic plugs
Flexible exhaust options: 2" x 10" rectangular exhaust collars on the top and bottom. 5', 6' and 8' models include three openings on the top and bottom. Cover(s) provided for unused openings
Particulate containment independently verified by SafeBridge Consultants, Inc.
Modified ASHRAE 110 conformity as low as 50 fpm independently verified by ECT, Inc.

Options:

Widths of 2', 3', 4', 5', 6' and 8'
Heights of 22.8" and 32.0"
Depths of 29.0" and 35.5"

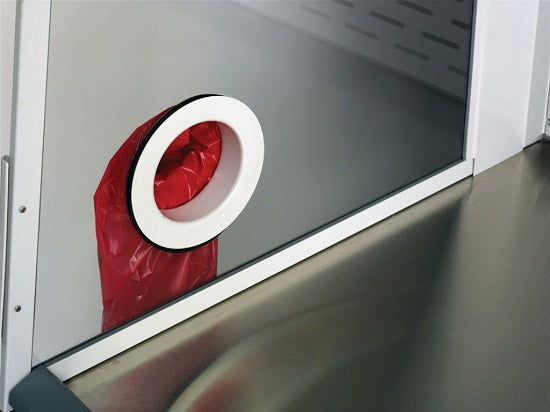

5', 6' and 8' models with 35.5" exterior depth include a left-side mounted waste chute (bags not included)
International electrical configuration

Required Accessories (Not Included)

Remote blower or FilterMate Portable Exhauster(s)
Work surface
Supporting base
Ductwork

Optional Accessories:

Fluorescent Task Lights
Guardian Airflow Monitors
Utility Shelves, Bottle Holder and Tissue Holder
Exhaust Transition Adapters
Waste Chute Stopper
Waste Chute Bags

Compliance:

Modified ASHRAE 110
SEFA 1
ANSI Z9.5
SEFA 8

Specifications:

Estimated Shipping Weight: 380.0 lbs
Estimated Shipping Weight metric: 172.0 kg
Dimensions: 60.0" w x 35.5" d x 32.0" h
Dimensions metric: 152.4 cm x 90.2 cm x 81.3 cm
Electrical: N/A

Attributes:

Product Subcategory: Educational
Nominal Width: 5'
Region: Not Applicable
Air Usage/Static Pressure with Sash At Working Height: At 60 fpm, exhausts 290 CFM at .20" H20 static pressure. At 80 fpm, exhausts 385 CFM at .35" H20 static pressure.
Blower Requirements: Remote blower required
Conformance: ANSI Z9.5, Modified ASHRAE 110, SEFA 1
Lighting: None. Light Kit Accessory available.
Style: Benchtop
Waste Chute: Waste Chute
