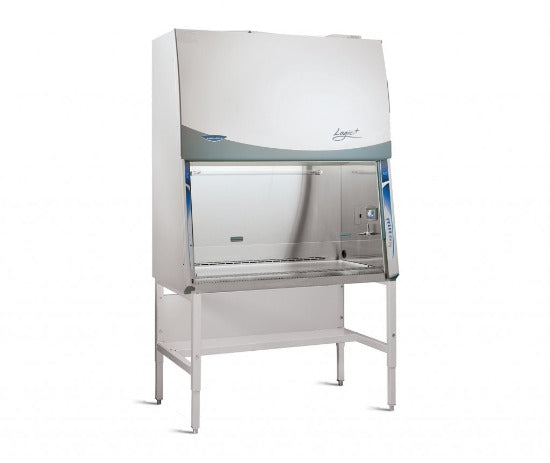

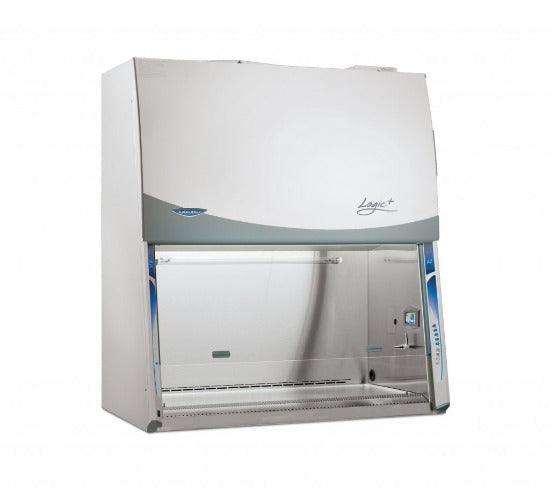

Labconco 5' Purifier Logic+ Class II A2 Biological Safety Cabinet with 12" Sash Opening with Base Stand - 302520141

Labconco 5' Purifier Logic+ Class II A2 Biological Safety Cabinet with 12" Sash Opening with Base Stand

Purifier Logic+ Class II, Type A2 Biosafety Cabinets provide personnel, product and environmental protection from hazardous particulates such as agents that require Biosafety Level 1, 2 or 3 containment. Other appropriate applications include work with antineoplastic drugs, genetic material, asbestos and additional substances that generate hazardous airborne particulates. All models are NSF-Listed.

These biological safety cabinets are designed to discharge HEPA-filtered exhaust air directly into the laboratory, or into an exhaust system through the optional Canopy Connection. When canopy-connected, the biosafety cabinets may be used for applications involving minute quantities of volatile toxic chemicals and tracer amounts of radionuclides as an adjunct to microbiological research.

Features:

Electronically Commutated Motor (ECM)
Constant Airflow Profile (CAP) airflow monitoring system
Intrinsically-safe negative pressure design
Air-Wave Entry System
Contain-Air Negative Pressure Channel
Supply and exhaust 99.99% efficient HEPA filters. 99.999% efficient ULPA filters available

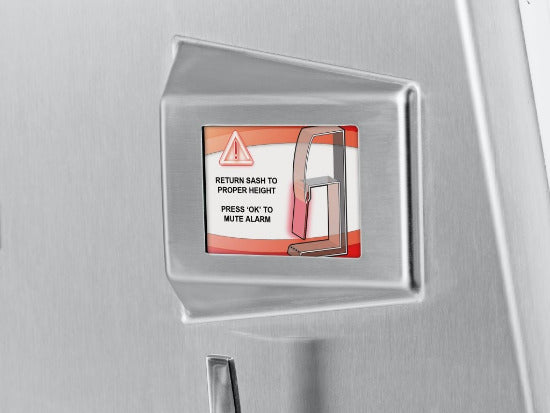

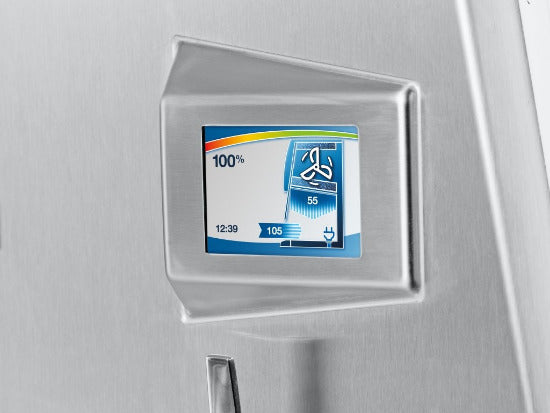

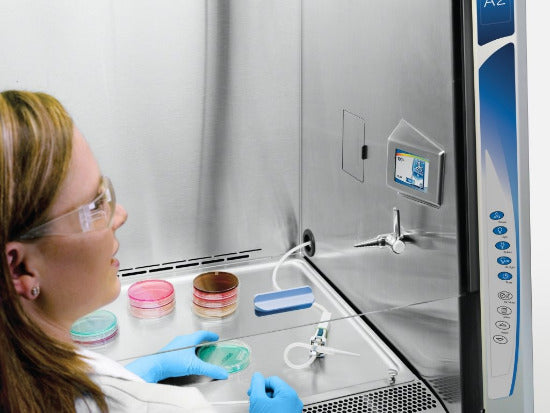

Interior-mounted, line-of-sight color LCD with MyLogic OS. Displays filter life, status messages for alarm conditions and alerts. 8 languages available
Bright, 90-150 footcandle, glare-free LED lighting located outside the contaminated work area
Fully-closing, clear 1/4" tempered safety glass sash
Curved stainless steel inlet grille with Reserve-Air Secondary Airflow Slots

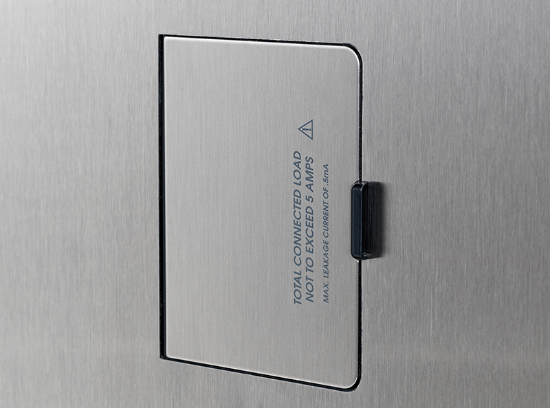

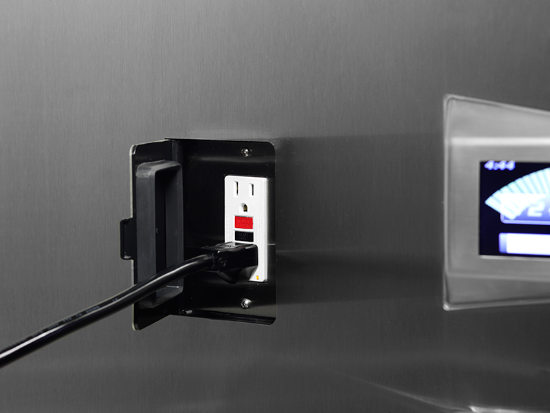

Two electrical duplex receptacles. Flush-mounted-stainless steel with dampened hinges. Single outlets on 230V models. One outlet on each side, with ground fault interruption (115V)
Smart-Start System user-programmable start up & shut down
Night-Smart System reduces blower speed when sash is closed
Leak-tight stainless steel interior & powder-coated steel exterior
Removable towel catch located under work surface
Code-activated electronic security lock
22.6" (57 cm) max. sash opening & 27.0" (69 cm) viewing height
10° Angled sash with counterbalanced, easy lift mechanism
ADA-Compliant touchpad control on right side post
Noise level <63 dBA
Heat load 990 BTU/hour (4' models)
Removable, seamless type 304 stainless steel, dished work surface with lift out knobs
Nominal inflow velocity of 105 fpm (0.5 m/sec)
Nominal downflow velocity of 55 fpm (0.3 m/sec)

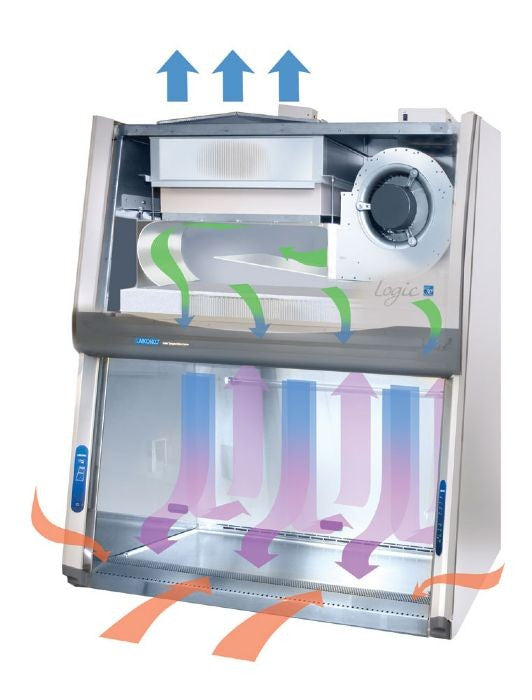

Approximately 70% air recirculation
Overall depth x height: 31.2" x 61.7" (79.2 x 156.7 cm)
10' (3 m) power cord with plug
Built-in timer and digital clock
Five year warranty

Required Accessories:

Supporting base if non-welded stand option is not selected

Options:

International electrical configurations
Non-welded, NSF-Approved, powder-coated steel telescoping base stand with fixed feet

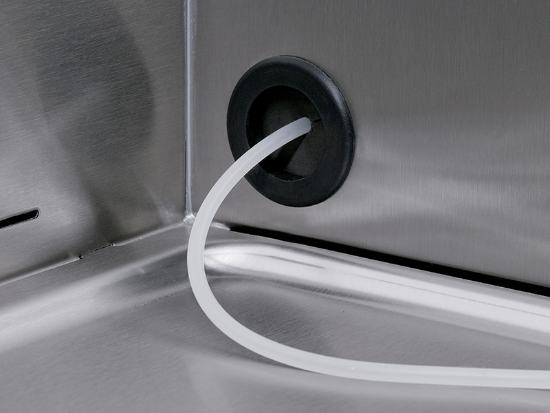

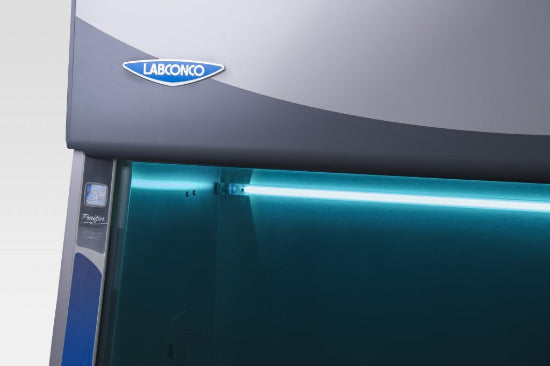

Accessory Package: 254 nm UV lamp, ADA-compliant service fixture(s) with ball-type valve(s), and NSF-Approved Vacu-Pass Cord & Cable Portal
Cell Logic+ packages specifically designed for use with microscopes and temperature-sensitive samples

Compliance:

ETL listed
NSF International listed
ADA-compliant (height of controls and receptacles)
CE Conformity marking (230V models)
ISO 5 conditions per ISO 14644-1 and 2

Specifications:

Estimated Shipping Weight: 800.0 lbs
Estimated Shipping Weight metric: 362.9 kg
Dimensions: 66.3" w x 32.7" d x 61.8" h
Dimensions metric: 168.4 x 83.1 x 157.0 cm
Electrical: 230V, 50/60 Hz, 6A
