Labconco 6' Logic Vue Class II Enclosure with International Packaging - 3300611

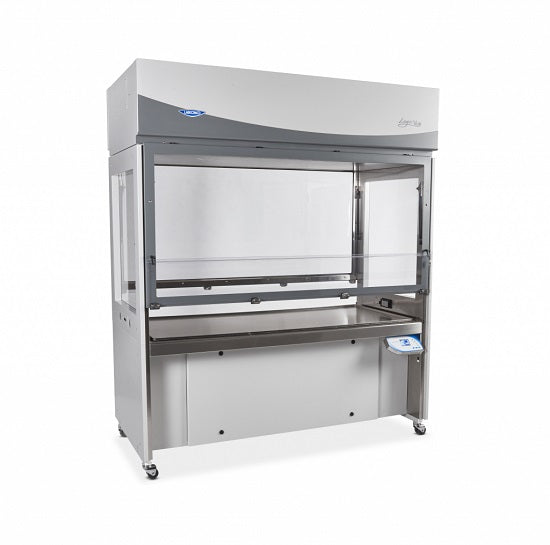

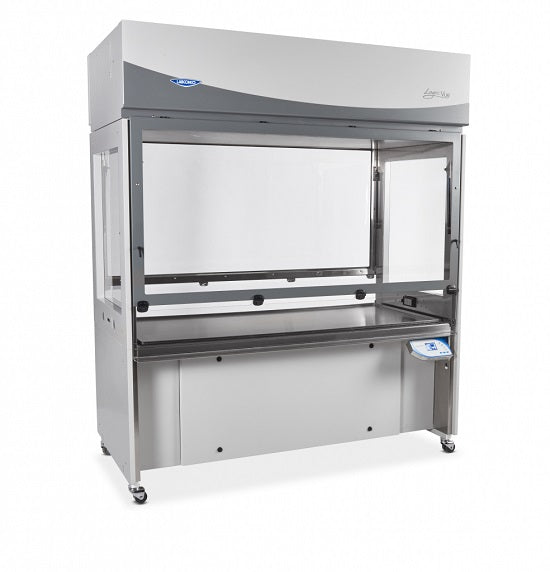

Labconco 6' Logic Vue Class II Enclosure with International Packaging

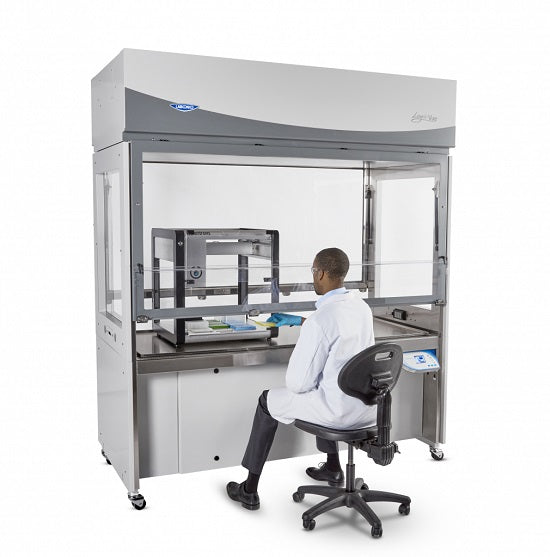

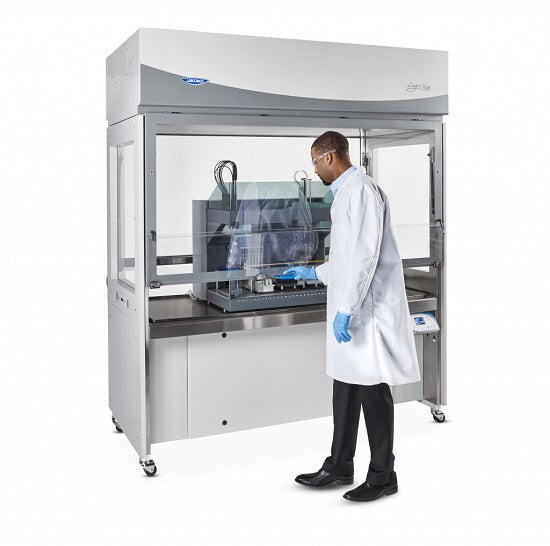

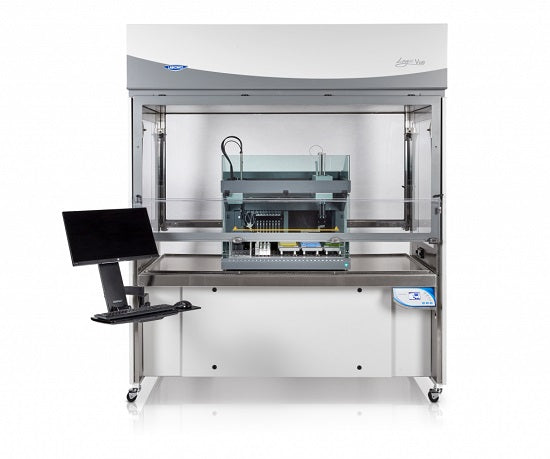

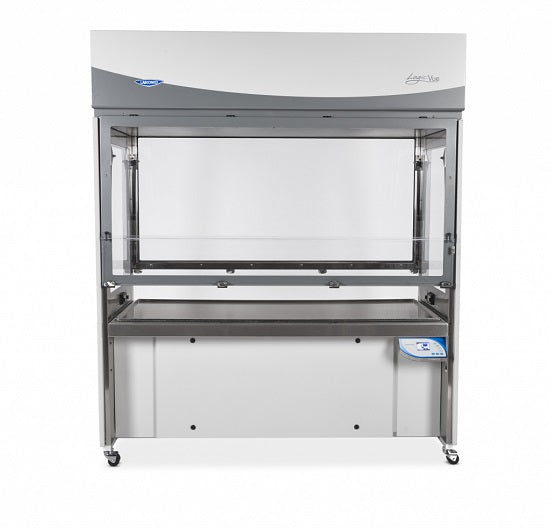

The Logic Vue is a specialized Class II enclosure designed to maximize protection and containment for large instruments such as liquid handlers, flow cytometers, and other pieces of automated equipment. The Logic Vue provides laminar, unidirectional ISO 5 air for product protection and meets or exceeds NSF/ANSI Standard 49 testing criteria for product and personnel protection. High visibility windows on all sides provide unobstructed viewing to the stainless steel interior, and dual full-open 42" sashes in the front and rear allow easy access to instrumentation placed within the Logic Vue.

Powered by MyLogic OS with Constant Airflow Profile technology, the Logic Vue constantly keeps users safe by displaying alerts, filter life, and more. The Logic Vue also incorporates a specialized reinforced work surface, safety interlock for automated equipment, plus 16 pass-throughs, ample knee space, and access ports. Automate your lab safely and seamlessly with the Logic Vue.

Features:

Intrinsically safe, single-pass negative pressure design

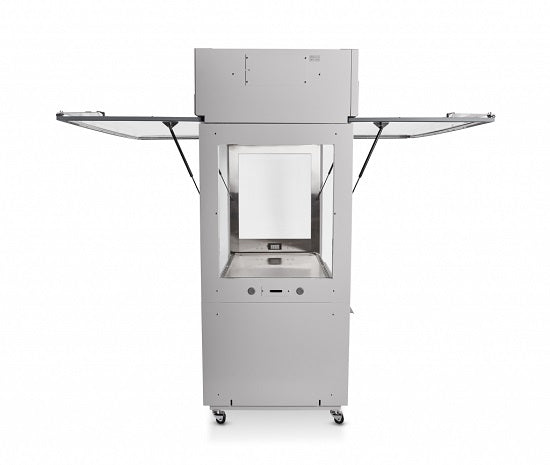

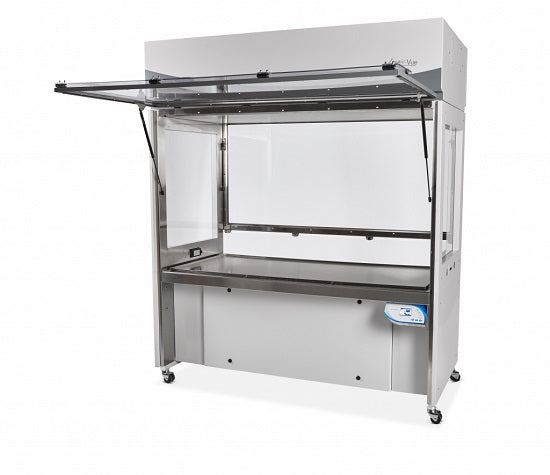

Fully-opening front/rear sashes and side windows constructed of durable polycarbonate
8" sash opening with unrestricted access to full working area
Unidirectional ISO Class 5 air or better
HEPA filters, supply and exhaust, are 99.99% efficient or better on particles 0.3 microns or larger
Individual HEPA filters are 100% scannable
Pre-filters extend life of HEPA filters
Spacious working area of 42.2" h x 31.0" d

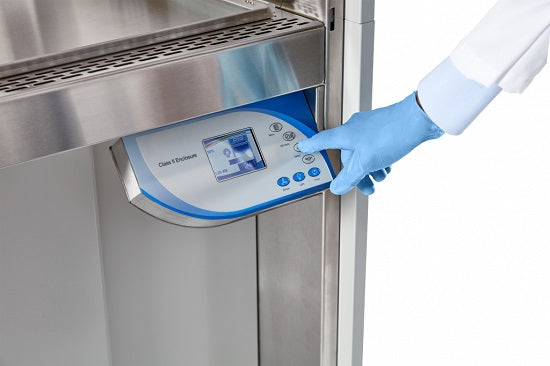

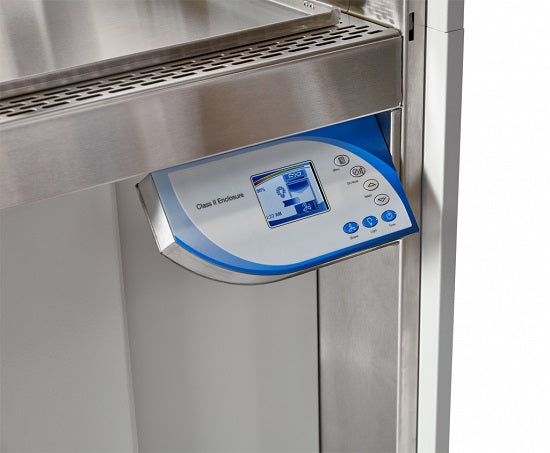

MyLogic OS displayed on a full-color LCD screen with adjustable angle and touchpad controls
Smart-Start package automates blower and light functions for start-up and shut-down
Energy-efficient Electronically Communicated Motors (ECM)
Constant Airflow Profile (CAP) safe airflow monitoring system
Electronic security lock
Robust multi-piece work surface accommodates equipment up to 250 lbs per every 2 feet
304 stainless steel interior
Chemically-resistant epoxy powder-coated steel exterior
SpillStopper work surface tray
Ergonomic deep knee well
Adjustable work surface height of 31.5-37.5" in 1" increments
Remote monitoring via USB and dry contact relays
LED lighting illuminates work surface for maximum visibility (133 footcandles)
Safety Interlock interface for automated equipment

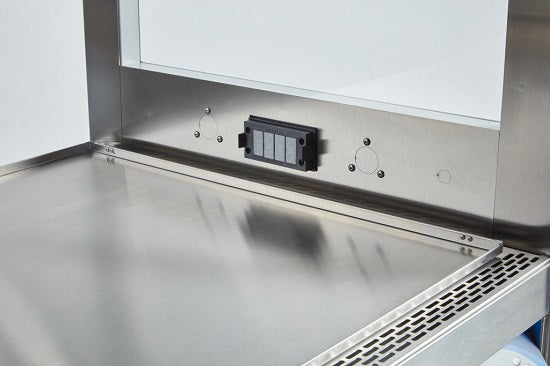

16 cable/cord pass-through ports
2 service fixture provisions per sidewall
2 large pass-through provisions per sidewall
Ergotron® computer/media arm attachment point
Four transport casters and four seismic leveling feet
Reduces to 77.5" h x 35.0" w for passage through small doorways
Ships fully assembled with minimal installation required
One year warranty on parts and labor

Standards Conformance & Regulations:

Meets or exceeds NSF/ANSI Standard 49 for Product and Personnel Protection
UL Standard 61010-1 (all models)
CAN/CSA 22.2 No. 61010-1 (all models)
ADA-compliant operation

Options Include:

115V or 230V electrical configurations
Factory-installed large access port(s)

Optional Accessories:

Canopy Connection Kit
Large Tube Pass-Throughs (up to 2 per side)
Service Fixtures (up to 2 per side)
Airflow Sensor
Safety Interlock Cable

Specifications:

Estimated Shipping Weight: 1,275.0 lbs
Estimated Shipping Weight metric: 578.3 kg
Dimensions: 78.2" w x 39.6" d x 93.5" h
Dimensions metric: 198.6 x 100.6 x 237.5 cm
Electrical: 230V, 50/60 Hz, 20A

Attributes:

Product Subcategory: Class II Large Enclosures
Nominal Width: 6'
Protection Type: Product and Personnel
Nominal Sash Opening: 8" (20 cm)
Loading Height: 42"
Base Stand: Integral
Conformance: ADA, CAN/CSA C22.2, ETL, NSF 49, UL
Lighting: LED
