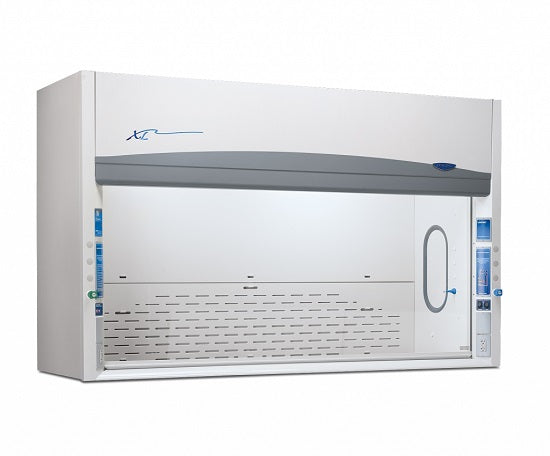

Labconco 6' Protector XL Benchtop Laboratory Hood with 2 service fixtures, 30" Interior Depth - 111610001

Labconco 6' Protector XL Benchtop Laboratory Hood with 2 service fixtures, 30" Interior Depth

The Protector XL Benchtop Laboratory Hoods are general chemistry hoods that offer superior design flexibility. They are available in widths from 3 to 16 feet and three depths to meet a variety of installation and application requirements. These hoods incorporate containment-enhancing features allowing them to operate at face velocities as low as 60 fpm and meet the SEFA-1 standard of a low velocity high performance hood.

Features:

By-pass airflow design
Eco-Foil Air Foil with aerodynamic Clean-Sweep airflow openings
Cord-Keeper Slots on left and right side of air foil
Glacier white powder-coated steel exterior
Chemical-resistant, fiberglass-reinforced, composite panel liner and baffle
Opti-Zone Baffle with flame spread index less than 25 per ASTM E84. Baffle is removable for cleaning
Tempered safety glass vertical-rising sash(es) with cable and pulley(s) and powder-coated aluminum sash handle(s). 8' models have optional split dual sashes. 10', 12' and 16' models have split dual sashes (four on 16' models)

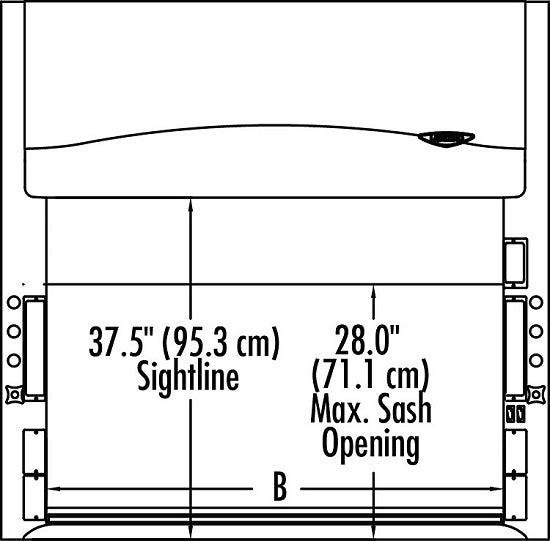

37.5" (95.3 cm) high sightline from the work surface and header panel
Removable front and side panels, and front and interior service access panels for access to plumbing and electrical wiring
Pre-wired LED lighting with vapor-proof design and ADA-compliant light and blower switches. Lighting rated to 50,000 hours
Powder-coated stainless steel, 12.8" (32.5 cm) ID exhaust connection(s)
10', 12' and 16' models also feature a by-pass block

Required Accessories (not included)

Remote blower
Ductwork
Work Surface
Base cabinet or stand

Optional Accessories (not included)

Service Fixture Kits (some models include service fixtures)
Electrical Duplex Kits (some models include electrical duplex)
Guardian Airflow Monitor Kits
Distillation Grid Kits
Snuffer Fire Extinguisher
Ceiling Enclosure Kits
Rear Finish Panel Kits

Specifications:

Estimated Shipping Weight: 525.0 lbs
Estimated Shipping Weight metric: 238.0 kg
Dimensions: 72.0" w x 37.7" d x 59.0" h
Dimensions metric: 182.9 x 95.8 x 149.9 cm
Electrical: 100-115 volts, 50/60Hz, 10 amps

Attributes:

Product Subcategory: General Chemistry
Nominal Width: 6'
Blower Requirements: Remote blower required
Conformance: ANSI Z9.5, ASHRAE 110, ASTM E84, CAN/CSA C22.2, NFPA 45, SEFA 1, UL
Enclosure Height: 59.0"
Exterior Depth: 37.7" (95.8 cm)
Lighting: LED
Service Fixtures: 2
Style: Benchtop
