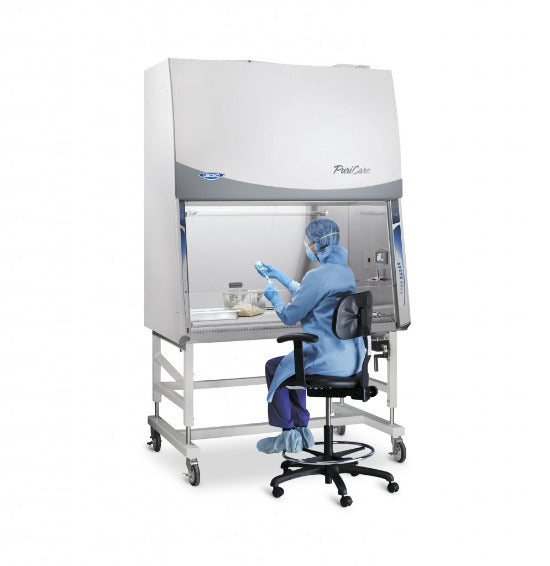

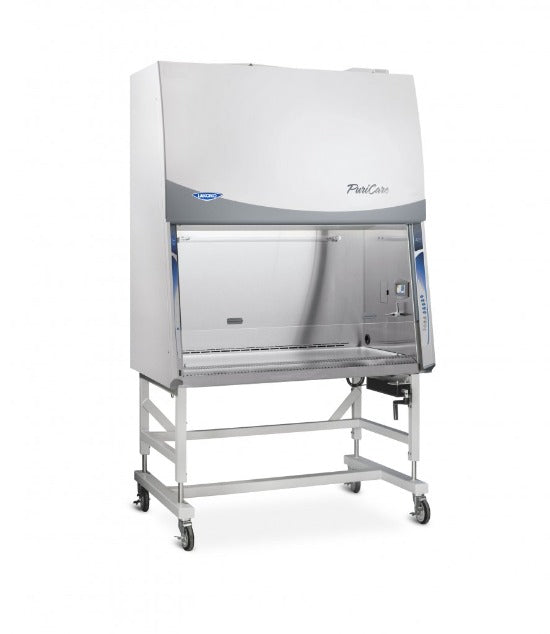

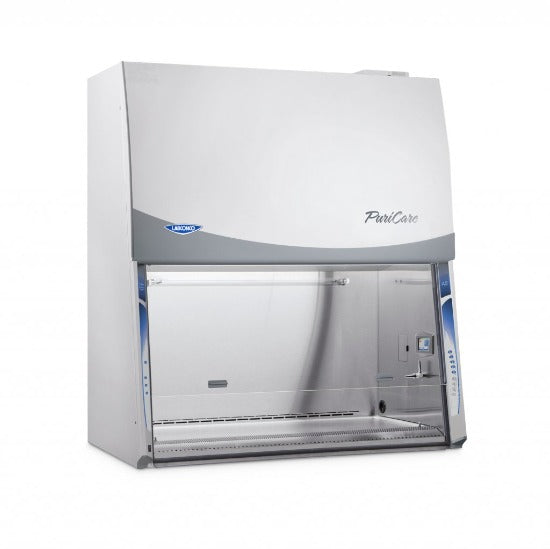

Labconco 6' PuriCare Procedure Station with 10" Sash Opening - 312610001

Labconco 6' PuriCare Procedure Station with 10" Sash Opening

PuriCare Procedure Stations provide personnel, animal and environmental protection. They are specialized Class II, Type A2 biological safety cabinets that meet or exceed the product and personnel protection requirements of NSF 49. These Stations are designed for conducting small animal research activities including cage changing, weighing, anesthesia delivery and surgical procedures.

Compliance:

NSF Listed, Standard 49
ETL listed
UL Standard 61010-1 (115 volt models)
CAN/CSA C22.2 No. 1010.1-92 (115 volt models)
CE conformity marking (230 volt models)

Features:

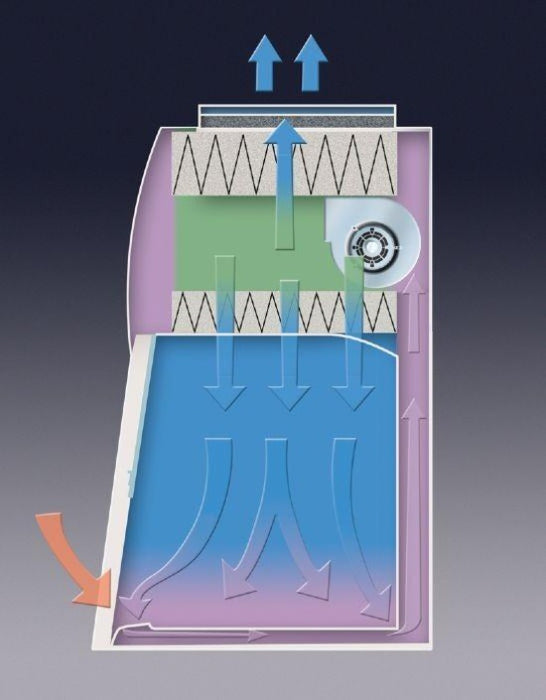

Nominal inflow velocity of 105 feet per minute (fpm) with 10" sash opening; 85 fpm with 12" sash opening.
Nominal downflow velocity of 55 fpm
Approximately 70% air recirculation
Patent-pending design
Interior-mounted, line-of-sight LCD information center with "Filter Life Remaining" bar graph, status line for alarm conditions and alerts to warn when filter life diminishes to 20%, 10% and 0%
Filter monitoring system and electronically commutated motor (ECM) that automatically adjusts as filters load
Smart-Start System
Night-Smart System
Built-in interval or elapsed timer for experiment monitoring, fluorescent light or UV light control (on models with UV light)
Touchpad control on right-hand side post for manual activation of blower, light, timer, audible alarm mute and menu selection
Radiused type 304 stainless steel interior and removable, seamless, dished work surface with lift out knobs
Powder-coated steel exterior
Towel catch with sponge-type prefilter located under work surface
Contain-Air Negative Pressure Channel
Class 5 conditions per ISO 14644-1 and 2 (formerly Class 100)
Supply and exhaust 99.99% efficient H14 HEPA filters. (99.999% efficient U15 ULPA filters available.)
Trace odor carbon postfilter accessory available
Two electrical duplex receptacles (single outlets on 230 volt models), located one on each side, with ground fault interruption (115 volt models) and stainless steel splash covers
Fully-closing, clear 1/4" tempered safety glass sash with two sash handles; counterbalanced, anti-racking mechanism; and 10° slope
21.7" sash opening and 27.5" viewing height
Curved stainless steel inlet grille with Reserve-Air Secondary Airflow Slots
Bright, 90-100 footcandle, glare-free fluorescent lighting located outside the contaminated work area
Intrinsically-safe negative pressure design
Electronic security lock (optional activation) that requires code to operate the cabinet
ETL listed
Full five year warranty on parts and service

Options:

International electrical configurations
254 UV lamp with timer
Chrome-plated forged brass service fixture(s) with ball valve and quarter turn handle, factory installed 8.5" above work surface

Required Accessories:

Supporting base

Optional Accessories:

Replacement Prefilters
Activated Carbon Filters to remove odors
Canopy Connection Kits to allow the PuriCare Station to be thimble-ducted to the outside
Air-Tight Damper
Remote Blowers
Service Fixture Kit
Ultraviolet Lamp Kits
General Accessories
SoLo Hydraulic Lift Base Stands

Attributes:

Built-In Options: None
Conformance: ADA, CAN/CSA C22.2, ETL, NSF 49, UL
Light Fixtures: LED
Nominal Exterior Width: 6' (183 cm)
Nominal Sash Opening: 10" (25 cm)
Power Cord & Plug: 115 volts, 20 amps
Primary Application: Special procedures such as surgical operations
Service Fixtures: No

Specifications:

Estimated Shipping Weight: 805.0 lbs
Estimated Shipping Weight metric: 365.1 kg
Dimensions: 78.3" w x 31.2" d x 63.3" h
Dimensions metric: 198.9 x 79.2 x 161.5 cm
Electrical: 115V, 60 Hz, 16A
