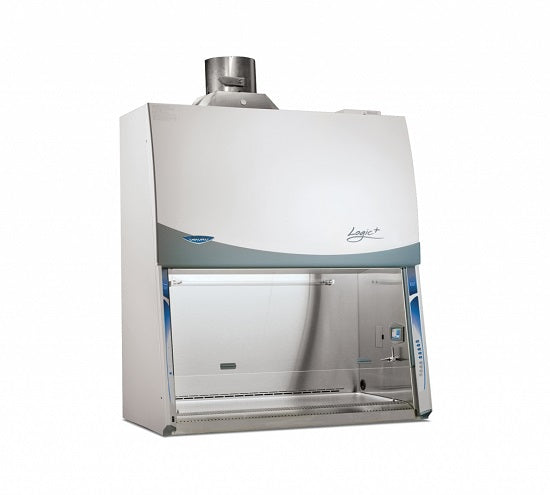

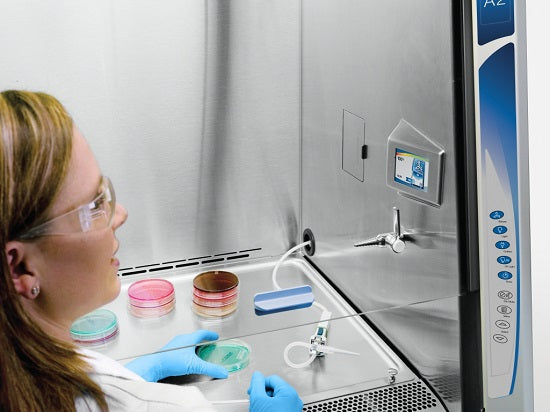

Labconco 6' Purifier Logic+ Class II B2 Biological Safety Cabinet with 8" Sash Opening with Base Stand - 303680171

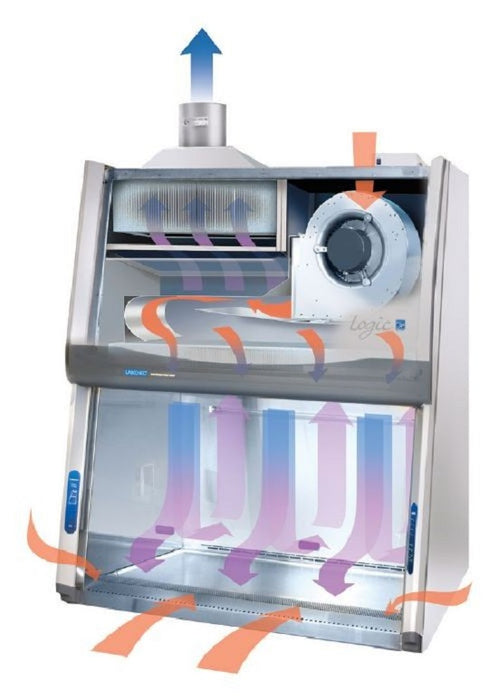

These biological safety cabinets are designed to be hard ducted to the outside. During operation, room air is drawn into the top of the cabinet and through a supply HEPA filter. This filtered air flows downward through the work area. Room air is also drawn into the inlet grille located at the work access opening. All of the contaminated air passes through the exhaust HEPA filter. A dedicated exhaust system and remote blower discharge 100% of the filtered exhaust air from the laboratory. Since none of the air is recirculated, these biohazard cabinets may be used for work with agents treated with volatile toxic chemicals and radionuclides.

All Type B2 Biosafety Cabinets rely on external blowers (usually on the roof of a building) to exhaust 100% of the air entering the cabinet. If the building exhaust blower fails or is mistakenly turned OFF, the cabinet will become pressurized, resulting in contaminated air flowing from the work area into the laboratory. Perform a risk assessment regarding the type of work to be performed in the cabinet if there is an unintended loss of exhaust air. Consider a Class II, Type C1 BSC for greater protection.

Features:

Electronically Commutated Motor (ECM)
Constant Airflow Profile (CAP) airflow monitoring system
Intrinsically-safe negative pressure design
Air-Wave Entry System
Contain-Air Negative Pressure Channel
Supply and exhaust 99.99% efficient HEPA filters. 99.999% efficient ULPA filters available

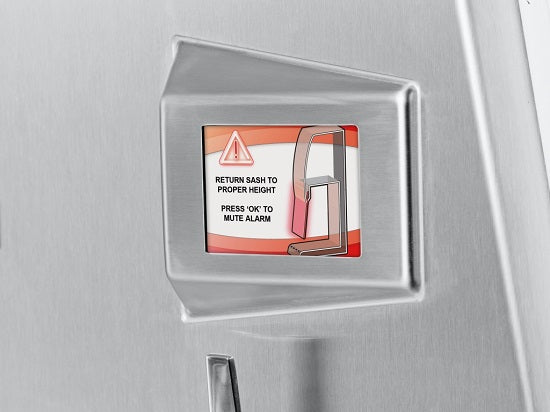

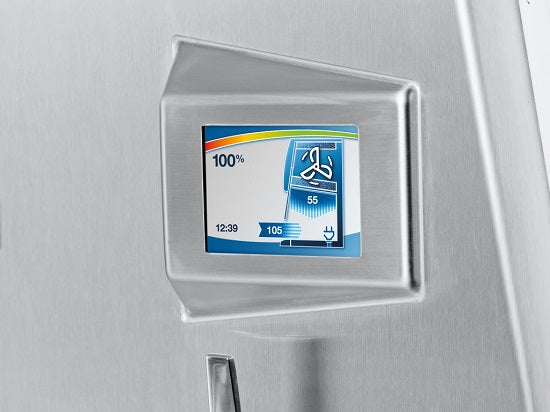

Interior-mounted, line-of-sight, color LCD with MyLogic OS displays filter life, status messages for alarm conditions and alerts. 8 languages available
Bright, 90-150 footcandle, glare-free LED lighting located outside the contaminated work area
Fully-closing, clear 1/4" tempered safety glass sash
Curved stainless steel inlet grille with Reserve-Air Secondary Airflow Slots

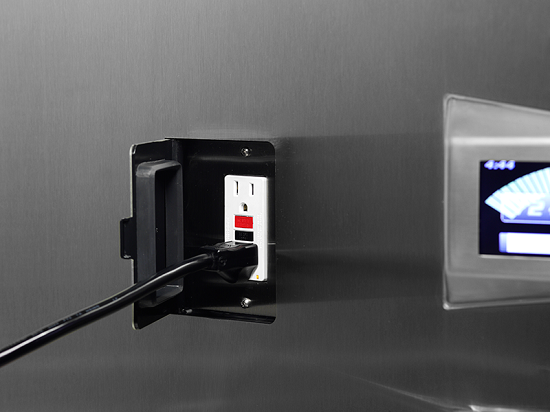

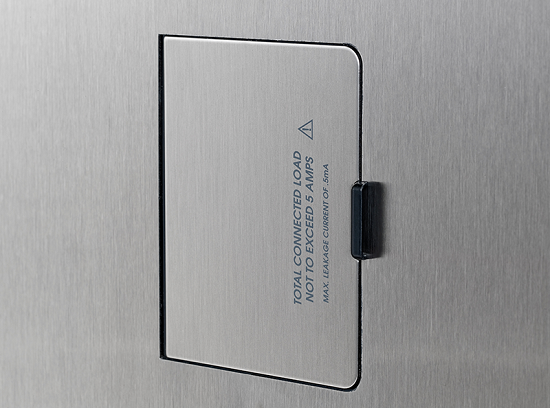

Two electrical duplex receptacles. Flush-mounted-stainless steel with dampened hinges. Single outlets on 230V models. One outlet on each side, with ground fault interruption (115V)
Smart-Start System user-programmable start up & shut down
Leak-tight stainless steel interior & powder-coated steel exterior
Removable towel catch located under work surface
Code-activated electronic security lock
22.6" (57 cm) max. sash opening & 27.0" (69 cm) viewing height
10° Angled sash with counterbalanced, easy lift mechanism
ADA-Compliant touchpad control on right side post
Removable, seamless type 304 stainless steel, dished work surface with lift out knobs
Noise level <63 dBA
Heat load 990 BTU/hour (4' models)
Nominal inflow velocity of 105 fpm (0.5 m/sec)
Nominal downflow velocity of 55 fpm (0.3 m/sec)
10' (3 m) power cord with plug
Five year warranty

Required Accessories (Not Included)

Supporting base if non-welded stand option is not selected

Options:

4' and 6' widths
International electrical configurations

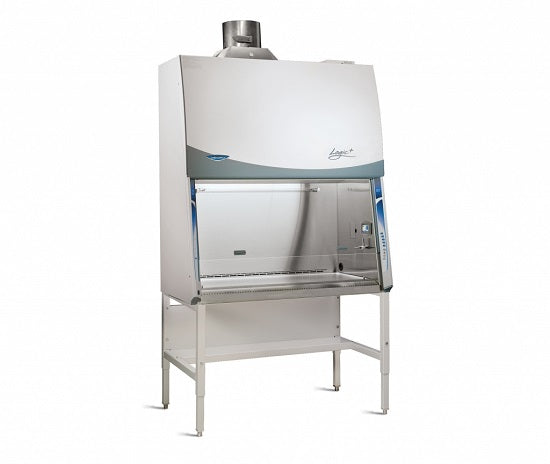

Non-welded, NSF-Approved, powder-coated steel telescoping base stand with fixed feet

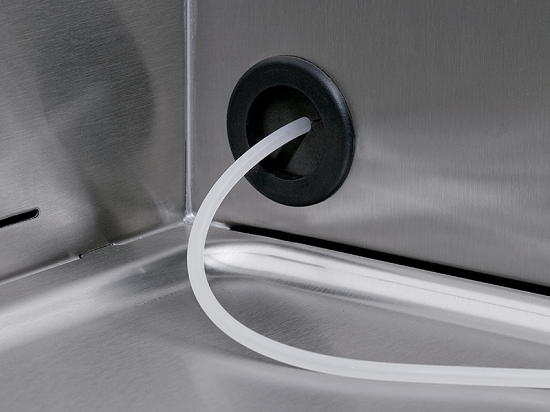

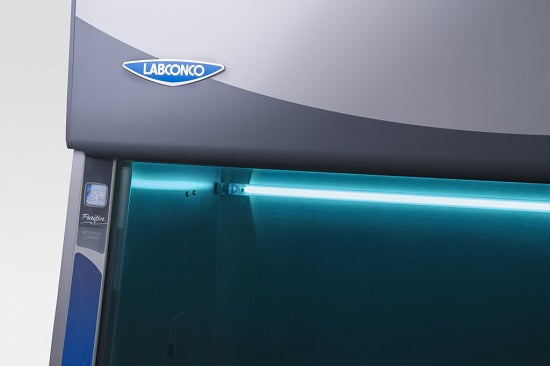

Accessory Package: 254 nm UV lamp, ADA-compliant service fixture(s) with ball-type valve(s), and NSF-Approved Vacu-Pass™ Cord & Cable Portal
Cell Logic+ packages specifically designed for use with microscopes and temperature-sensitive samples

Compliance:

ETL listed
NSF International listed
CE Conformity marking (230V models)
ISO 5 conditions per ISO 14644-1 and 2
ADA-Compliant (controls and receptacles)

Specifications:

Estimated Shipping Weight: 940.0 lbs
Estimated Shipping Weight metric: 426.4 kg
Dimensions: 78.3" w x 31.2" d x 100.1-106.1" h
Dimensions metric: 198.9 x 79.2 x 254.3-269.5 cm
Electrical: 230V, 50/60 Hz, 6A

Attributes:

Product Subcategory: Class II, Type B2 Total Exhaust Safety Cabinets
Nominal Width: 6'
Protection Type: Product and Personnel
Nominal Sash Opening: 8" (20 cm)
Base Stand: Included
Conformance: ADA, CE, NSF 49
Exhaust Volume: 1265 CFM
Lighting: LED
Power Cord & Plug: India, 230V
