Labconco 6' XPert Bulk Powder Filtered Station, Center Access Opening - 3962621

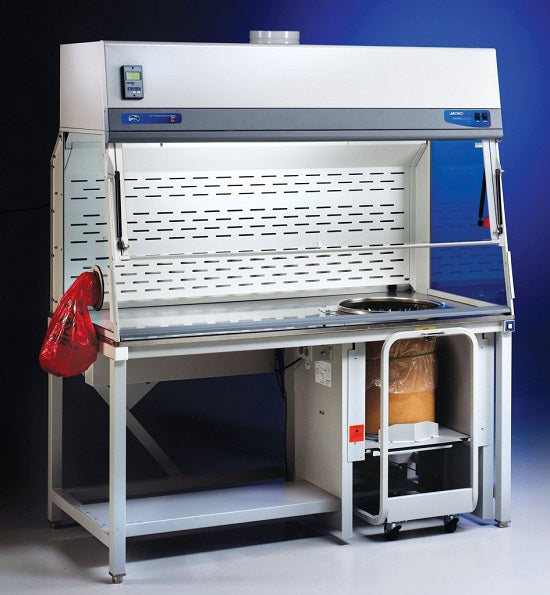

Labconco 6' XPert Bulk Powder Filtered Station, Center Access Opening

XPert Bulk Powder Filtered Stations provide user protection from hazardous airborne particulates generated during powder transfer operations. The push button operated electric hydraulic lift raises the bulk powder container, and a beam senses the container’s location and triggers the lift mechanism to automatically stop at the optimal ergonomic access height.

These enclosures are HEPA filtered and their exhaust must be connected to a remote blower. A transfer caddy is included. The work surface features a right side, center or left side access opening for up to 19” diameter source container.

Features:

True bag-in/bag-out filter disposal system
Exhaust HEPA filter, 99.99% efficient on particles 0.3 microns in size
Pre-wired fluorescent light and switches for blower and light
Tempered safety glass front sash and sides.
Dry powder epoxy-coated steel exterior
2” square tubular steel base stand with leveling feet
Ergonomic air foil with aerodynamic Clean-Sweep airflow openings
Upper dilution air supply with by-pass air
Upper containment sash foil
Zone-perforated rear baffle that pivots down for easy cleaning
Side entry air foils
Generous 30” interior depth and 32” interior height for large equipment
Guardian 1000 digital airflow monitor
Stainless steel work surface with front spill trough to catch spills
Right-side, center or left-side access opening for source container
12” high sash opening
Ergonomic angled sash with sealed gas-assisted springs may be pivoted upward and remains unassisted at 28” loading height
Includes transfer caddy of glacier white, epoxy-coated 1” square tubular steel frame with 3” diameter casters with caddy latch and positioning plate
Push-button operated electric hydraulic lift mechanism to automatically stop at the optimal access height
Electronic beam to sense the location of container and trigger the lift mechanism to automatically stop at the optimal access height
Left side-mounted waste chute (bags not included)
Electrical fourplex receptacle located underneath the work surface

Required Accessories:

Carbon Filter or Canopy required for some applications (see brochure or consult your Labconco Representative)

Optional Accessories:

Retaining Rings
- 3981300 - 19.62” ID
- 3981301 - 17.50” ID
- 3981302 - 14.50” ID
- 3981303 - 11.50” ID

Polyethylene Safety Sleeves
Retaining Bands, package of 5
Access Opening Cover
Additional Transfer Caddy
Replacement HEPA filters
Replacement Bag for HEPA filter
Trace Odor Carbon Filters
Canopy Connections
Utility Shelf Kit
Bottle Holder
Tissue Holder

Specifications:

Estimated Shipping Weight: 1,075.0 lbs
Estimated Shipping Weight metric: 488.0 kg
Dimensions: 72.0" w x 37.0" d x 86.8" h
Electrical: 230 volts, 50 Hz, no plug, International

Attributes:

Width: 6'
Airflow Monitor: Guardian 1000 Digital
Access Opening Position: Center
Air Usage/Static Pressure with Sash At Working Height: At 60 fpm, exhausts 350 CFM at .46 - .56" H2O static pressure. At 80 fpm, exhausts 465 CFM at .67 - .81" H2O static pressure.
Blower Requirements: Remote blower or FilterMate Portable Exhauster(s) and filters required
Conformance: ANSI Z9.5, CAN/CSA C22.2, Modified ASHRAE 110, SEFA 1, UL
Lighting: Fluorescent lamp
Sash Opening Height: 12.0" (30.5 cm)
Type: Bulk Powder Enclosure
With Built-In HEPA Filtration: Yes
