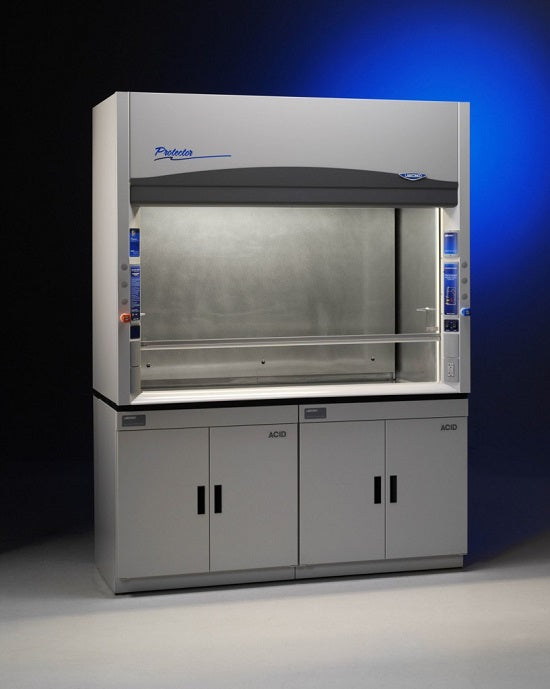

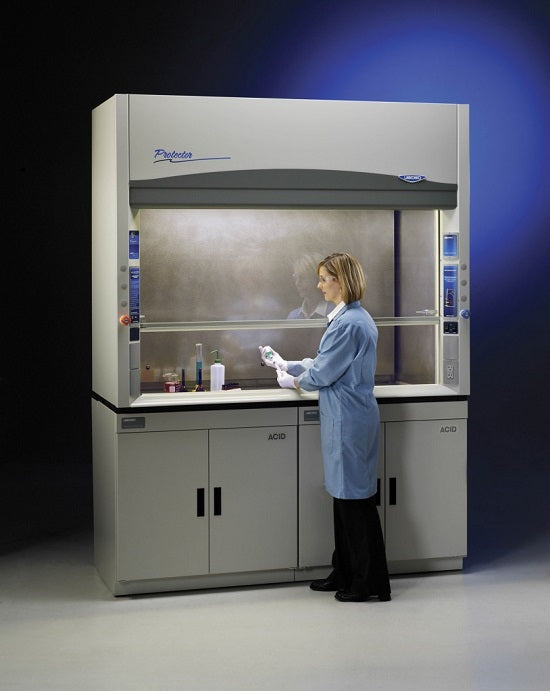

Labconco 8' Protector Stainless Steel Radioisotope Laboratory Hood, Deep, 230V - 120810020

Labconco 8' Protector Stainless Steel Radioisotope Laboratory Hood

Protector Stainless Steel Radioisotope Laboratory Hoods provide protection from applications requiring the use of radiochemicals. They feature fully sealed integral work surfaces and coved interiors to facilitate decontamination.

Features:

By-pass airflow design and by-pass block
Curved Eco-Foil air foil allows air to sweep the work surface while Clean-Sweep openings pull inflow air from under the air foil
Cord-Keeper slots on left and right side of air foil
Glacier white, powder-coated steel exterior
Seamless Type 304 stainless steel liner with radiused corners, integral work surface and pre-set baffle(s)
Black enamel-coated hardboard supporting surface
Powder-coated aluminum sash handle with Clean-Sweep openings and Clean-Sweep slots on the powder-coated stainless steel sash tracks
Tempered safety glass vertical-rising sash with cable and pulley
Removable front and side panels and front access panels for access to plumbing and electrical wiring
Pre-wired LED lighting with vapor-proof design and ADA-compliant light and blower switches. Lighting rated to 50,000 hours
11.0" OD Type 304 stainless steel exhaust connection(s)

Fixtured Models May Feature:

Two pre-plumbed service fixtures with forged brass valves, lower right side with brass tubing for gas and lower left side with copper tubing for air. Components for converting either or both fixtures to cold water and vacuum are provided. Inlet tubing is not provided.
One pre-wired GFCI electrical duplex receptacle on lower right side and, on 8' models only, one additional pre-wired GFCI electrical duplex receptacle on lower left side

Required Accessories (Not Included)

Dedicated remote blower
Ductwork (type 304 stainless steel is recommended)
Base cabinet or stand

Optional Accessories:

Service Fixture Kits
Electrical Duplex Kits
Guardian Airflow Monitor Kits
Sash Stop Kits
Ceiling Enclosure and Rear Finish Panel Kits

Compliance:

SEFA 1
NFPA 45
ASTM E84-09C
ASHRAE 110
ANSI Z9.5
SEFA 8
CFR 29, Part 1910
UL 61010-1
CAN/CSA Standard C22.2 No. 61010.1
UL 1805

Specifications:

Estimated Shipping Weight: 740.0 lbs
Estimated Shipping Weight metric: 335.7 kg
Dimensions: 96.0" w x 37.7" d x 59.0" h
Dimensions metric: 243.8 x 80.5 x 149.9 cm
Electrical: 230 volts, 50/60 Hz

Attributes:

Product Subcategory: Radioisotope
Nominal Width: 8'
Blower Requirements: Remote blower required
Conformance: ANSI Z9.5, ASHRAE 110, ASTM E84, CAN/CSA C22.2, CFR 29, NFPA 45, SEFA 1, SEFA 8 (Cabinet Surface Finish), UL
Enclosure Height: 59.0"
Lighting: T8 fluorescent
Style: Benchtop
