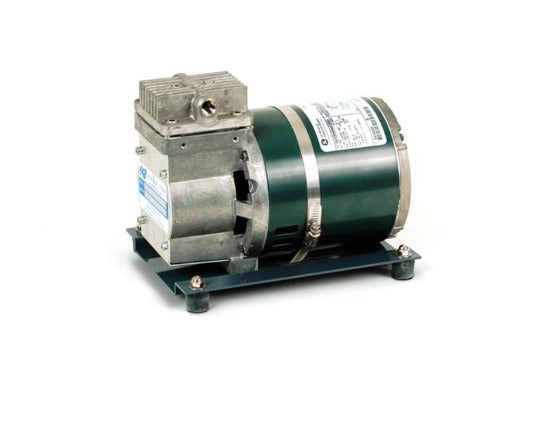

Labconco Diaphragm Vacuum Pump for Drying Train - 5248200

Labconco Diaphragm Vacuum Pump for Drying Train

For drying train circulation. Single cylinder, oil-free diaphragm pumps with permanently lubricated bearings and mounted on rubber feet. Provide 206 mBar ultimate vacuum. 1/8 hp motor. Die-cast aluminum. 1/4" diameter inlet and outlet connections. Dimensions: 4.8" w x 8.0" d x 7.0" h.

Shipping weight 11 lbs. (5 kg)

Diaphragm Pump for 115 volts, 60 Hz, 3.3 amp operation.
With switch. 42 L/minute displacement capacity.

VACUUBRAND Diaphragm Vacuum Pumps are sized for use with CentriVap Centrifugal Concentrators, RapidVap Vacuum Evaporation Systems, and Vacuum Desiccators and have been used with many other pieces of laboratory equipment that require a vacuum source. The wetted parts of these diaphragm pumps are PTFE-coated for corrosion resistance. Displacement capacities range from 27 to 88 liters per minute. Contact Labconco for assistance in selecting the correct vacuum pump for your application.

Specifications:

Estimated Shipping Weight: 11.0 lbs
Estimated Shipping Weight metric: 5.0 kg
Electrical: 115 volt, 60 Hz, 3.3 amps

Attributes:

Pump Type: Diaphragm Vacuum Pump
Works With These Products: Precise Controlled Atmosphere Glove Boxes, Protector Combination Glove Boxes, Protector Controlled Atmosphere Glove Boxes
Displacement Capacity at 60 Hz (50 Hz): 42 (35) Liters/min
Ultimate Vacuum: <206 mBar
