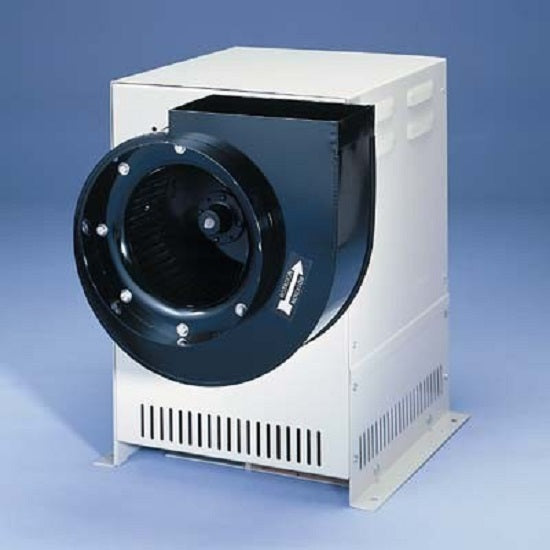

Labconco Explosion Proof Coated Steel Blower - 7069300

Labconco Explosion Proof Coated Steel Blower

Labconco Coated Steel Blowers have been specifically designed to meet the demanding day-to-day ventilation requirements for a wide range of hood choices. Durable and easy to maintain, Coated Steel Blowers are the recommended accessory for fume hoods used for low to moderately corrosive applications.

These blowers are offered in a broad spectrum of capacities from 175 to 1960 CFM, at varying static pressures. For greater corrosion protection, refer to our Fiberglass and PVC Blowers.

Features:

Flow-through vent holes and louvers allow for air circulation that cools the motor, thus prolonging motor life
Phenolic coating on impeller and housing is corrosion resistant
Powder-coated base and weather cover provide long life in extreme weather
Belt-driven with adjustable sheave saves energy and allows you to fine tune air volumes
Removable weather cover allows easy access for lubrication and sheave alignment to enhance performance and provide longer life
Self-adjusting gravity belt tightener ensures consistent performance because belt is held taut by weight of motor. Motor mount keeps the motor in place should the belt ever fail
Forward curved impellers are balanced to ensure quiet operation and optimum air delivery.
Factory lubricated pillow block bearings reduce maintenance and increase life
Blowers have low RPM for quiet operation
Sound levels generally range between 64 and 88 decibels depending on blower size
Variable exhaust orientation adjusts to eight outlet positions for installation flexibility. Adjustable discharge direction accommodates auxiliary-air requirements or unusual blower locations

Options:

Explosion-proof models with non-sparking aluminum impellers and UL-listed explosion-proof motors for maximum safety.

Required Accessories:

Ductwork

Specifications:

Estimated Shipping Weight: 108.0 lbs
Estimated Shipping Weight metric: 49.0 kg
Electrical: 115V, 11.4 amps/230V, 5.7 amps, 60 Hz, single phase

Attributes:

Product Subcategory: Coated Steel Blowers
Motor Type: Traditional Belt Driven Motor
CFM: Between 1000 and 2000
Explosion-Proof: Yes
Hood Application: Low to moderately corrosive
HP: 3/4
Inlet/Outlet: 12.25" Inlet, 7.0" d x 13.50" w Outlet
RPM Range Available: 667-946
