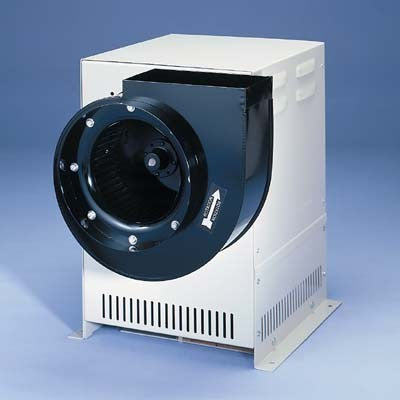

Labconco Intelli-Sense Multi-Speed Coated Steel Blower without Controls, 115V - 7061113

Labconco Intelli-Sense Multi-Speed Coated Steel Blower without Controls, 115V

Intelli-Sense Multi-Speed Coated Steel Blowers feature a direct drive ECM motor, which consumes one third less energy than belt drive motors, and a phenolic-coated impeller and housing. Unit comes with control box and 3 speed blower switch.

Adjustable over broad range of airflows. Max of 350 CFM @ 0.08" SP to 1250 CFM @ 0.7" SP. 10" dia. inlet.

Features:

Phenolic coating on impeller and housing is corrosion resistant.
Powder-coated base and weather cover provide long life in extreme weather.
Direct drive ECM motor uses one third less energy than belt driven motors.
Thermal override protection. RPM speeds are automatically attenuated to prevent motor overload.
Flow-through vent holes and louvres allow air to circulate.
Removable weather cover allows easy access to ECM motor and impeller shaft.
Forward curved impellers are balanced to ensure quiet operation and optimum air delivery.
Speed control box included for mounting on top of user-supplied fume hood, and blower-switch label* for multiple speed operation.
When blower is properly installed to ductwork, sound levels range from 50 to 70 dba.
Variable exhaust orientation adjusts to eight outlet positions for installation flexibility. Adjustable discharge direction accommodates auxiliary-air requirements or unusual blower locations.

Required Accessories:

Ductwork

Specifications:

Estimated Shipping Weight: 85.0 lbs
Estimated Shipping Weight metric: 38.6 kg
Dimensions: 25.4" w x 21.5" d x 24.6" h
Dimensions metric: 64.5 x 63.8 x 62.5 cm
Electrical: 115V, 50/60Hz, 10A

Attributes:

Product Subcategory: Coated Steel Blowers
CFM: Less than 1000, Between 1000 and 2000
Explosion-Proof: No
Hood Application: Low to moderately corrosive
HP: 1
Inlet/Outlet: 12.25" Inlet, 7.0" d x 13.50" w Outlet
RPM Range Available: 300-1125
