Labconco Precise Basic Glove Box - 5220030

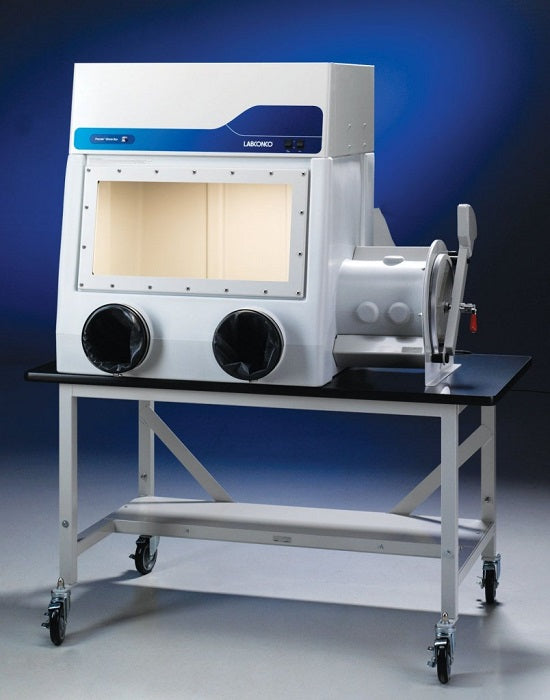

Labconco Precise Basic Glove Box

Precise Basic Glove Boxes are designed to provide a leak-tight physical barrier between the user and the materials inside the glove box. These simple, economical boxes are designed to allow the user to customize them with accessories to meet specific applications.

Features:

One-piece molded, medium-density polyethylene shell. Labconco recommends this website for a comprehensive listing of chemical resistance data for polyethylene.
Dry powder epoxy-coated steel superstructure
1/4" thick laminated safety glass viewing window, 26.4" wide x 12.5" high, removable for loading equipment, with powder-coated steel frame and neoprene gasket
Space-saving inner and outer transfer chamber doors that pivot upward, are counterbalanced and equipped with quick-latches
Black, chemical-resistant work surface sealed to the glove box floor
Interior ceiling-mounted electrical duplex receptacle with 5 amp maximum circuit load
Neoprene gloves, size 9 3/4, are included.
Fluorescent lamp, 22 watts, with easy replacement from the top
Switches for light and innermost interior electrical receptacle
Approximately 13 cubic feet of interior space in main chamber
11.0" nominal ID x 12.0" long transfer chamber
Factory leak tested with a mass spectrometer while glove box is pressurized with helium at 5 inches of water gauge
No detectable leaks greater than 1 x 10(-4) ml/sec
Meet Class 1 atmosphere containment conditions for oxygen leak rates per ISO 10648-2 test method
Transfer chamber interior interlocking shelf of dry powder epoxy-coated steel
ETL listed (115 volt models)
CE Conformity (230 volt models)

Options:

International electrical configurations

Required Accessories:

Adjustable Height Base Stands
Base Cabinet
Work Surface

Optional Accessories:

Acrylic Viewing Window
Add-A-Valve Kit
Automatic Pressure Controller
Complete Valve Set
Diaphragm Pumps
Electrical Power Strips
Exterior Transfer Chamber Shelf
External Glove Port Covers
Gas Fill/Vacuum Purge Tubing Kits
Gloves and Glove Box Accessories
Hanging Shelf Accessories
Hygrometers
Oxygen and Moisture Removal Column
Oxygen Monitors
Pressure Relief Valve
Pressure Relief Valve Vent Kit
Remote Blowers
Storage Shelf Kits
Trap Inserts

Specifications:

Estimated Shipping Weight: 255.0 lbs
Estimated Shipping Weight metric: 116.0 kg
Dimensions: 52.7" w x 31.6" d x 40.0" h
Dimensions metric: 137 x 80 x 102 cm
Electrical: 100 volts, 50 Hz, 8 amps

Attributes:

Built-In Options: None
Conformance: CAN/CSA C22.2 No. 1010.1, UL 3101-1/61010-1, ETL
Filter Type: None
Interior Working Width: 33.5"
Liner Material: Polyethylene
Number of Glove Ports: Two
Power Cord & Plug: 100 volts, 8 amps
Primary Application: Isolation from environment
Product Subcategory: Basic Glove Box
Required Accessories: Supporting Base
