Labconco Protector Demonstration Hood System - 3945020

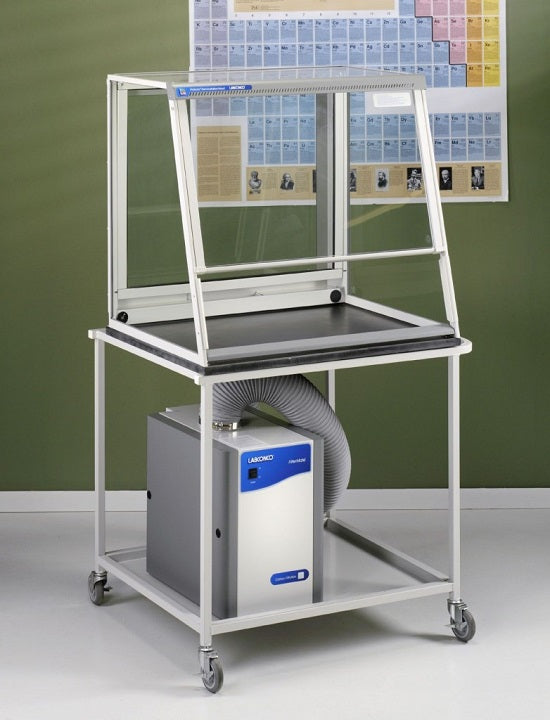

Labconco Protector Demonstration Hood System

Protector Demonstration Hoods are low profile, light-duty fume hoods designed to provide a clear, unobstructed view of procedures from all sides during educational demonstrations.

Protector Demonstration Hoods are offered individually or as a system including Cart with Work Surface, Lower Transition Adapter and FilterMate Portable Exhauster for use with two Carbon Filters or one Carbon Filter and one HEPA Filter in any combination.

Features:

Deep 23" interior to easily accommodate a variety of apparatus
Ergonomic air foil with aerodynamic Clean-Sweep airflow openings
Upper containment sash foil to bleed air into the enclosure to direct contaminants away from operator's breathing zone
Upper dilution air supply
Clear rear baffle to direct air streams to the back of the interior for removal through exhaust connection; baffle pivots down for cleaning
Side-entry air foils
Glacier white and gray, powder-coated aluminum frame
Tempered safety glass front sash, sides, rear baffle and top for total visibility
8" or 10" high sash opening depending on model
Ergonomic angled sash that pivots upward and locks to a loading height of 19.0" or 27.7" depending on model
Lower exhaust tissue screen
Two utility ports with iris openings
Flexible exhaust options. 2" x 10" rectangular exhaust collars on the top and bottom allow for connection to ductwork for exhausting to the outside or to a FilterMate Portable Exhauster for filtered removal of fumes and/or particulates.

Required Accessories:

Remote blower, house exhaust or FilterMate Portable Exhauster (models 3944300 and 3944301 only)
Ductwork (models 3944300 and 3944301 only)
Work Surface (models 3944300 and 3944301 only)
Supporting Base (models 3944300 and 3944301 only)
Carbon Filter Cell (models using FilterMate only)

Optional Accessories:

Guardian Airflow Monitors
Fluorescent Task Lights
Exhaust Transition Adapters
Exhaust Dampers
Cart
Remote Blower

Specifications:

Estimated Shipping Weight: 125.0 lbs
Estimated Shipping Weight metric: 57.0 kg
Dimensions: 39.0" w x 31.9" d x 58.8" h
Dimensions metric: 99.1 cm x 81.0 cm x 149.4 cm
Electrical: 230 volts, 50/60 Hz, 5 amps

Attributes:

Product Subcategory: Educational
Nominal Width: 3'
Region: International
Blower Requirements: No Blower Required. FilterMate included.
Conformance: ANSI Z9.5, CE, Modified ASHRAE 110, SEFA 1
Enclosure Height: 58.8"
Style: Benchtop
