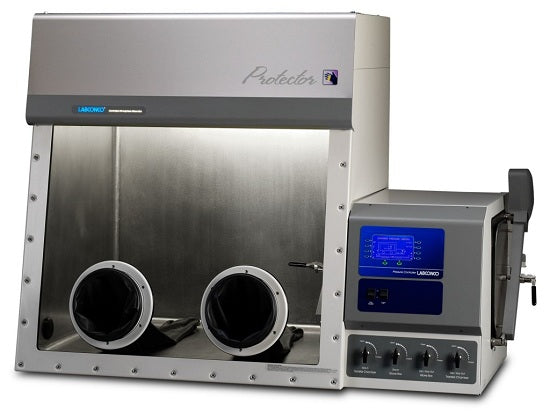

Labconco Protector Stainless Steel Filtered Glove Box- 5065545

Inlet and outlet ULPA filters are 99.999% efficient on 0.12 micron particulates and are rated for 70 CFM at <1.00" static pressure. Built-in blower delivers minimum exhaust volume of ≤28 CFM and maximum exhaust volume of ≥45 CFM. Air volume changes per minute (ACM) is ≤1.5 minimum and ≥2.5 maximum.

Protector Filtered Glove Boxes provide inlet and outlet HEPA or ULPA filtration and a leak-tight physical barrier to protect the operator from exposure to potentially hazardous materials.

These glove boxes feature particulate containment <20 nanograms per cubic meter as confirmed by Safebridge Consultants, Incorporated and also meet ISO Class 3 standards. Labconco HEPA Filtered Glove Boxes may be appropriate for use as containment isolators for applications that include compounds assigned ISO 4 and ISO 5 Banding Levels. Contact your Health and Safety Officer for specific Engineered Containment Device requirements.

Features:

Particulate containment <20 nanograms per cubic meter as confirmed by SafeBridge Consultants, Incorporated.
Fast “clean up time.” 0.05 ppm average tracer gas levels or less detected during perimeter scan testing (surpasses ASHRAE 110 standards) after 5 minute dilution.
Airborne particulate cleanliness (measured under positive and negative pressures per ISO 14644-1 test method) exceeds ISO Class 5 conditions (equivalent to Class 100) and achieves ISO Class 4 conditions.
Factory leak-tested with a mass spectrometer while pressureized with helium at 1 inch of water gauge. No detectable leaks greater than 1 x 10-6 ml/sec.
Inlet and outlet particulate (HEPA or ULPA) filters to prevent contaminants from entering or leaving the glove box chamber.
Test port for challenging HEPA or ULPA filter integrity.
True Bag-In/Bag-Out Filter Disposal System for safe filter removal and replacement.
LCD display provides real time monitoring of volume dilution rates in cubic feet per minute (CFM), air changes/minute (ACM), and main chamber pressure (inches of water).
Built-in blower with speed control capable of airflow from 15 CFM to 85 CFM.
Large viewing area, 36” w x 27.6” high, provides maximum visibility. Viewing window is 3/8” thick, laminated safety glass.
Space-saving inner and outer transfer chamber doors that pivot upward, are counterbalanced and equipped with quick-latches.
Interior right-hand side wall-mounted pass-through plug for on-site installation of an optional accessory: electrical outlet, RS-232 port, gas/liquid port, or port for oxygen or moisture monitor.
Pair of neoprene gloves, 0.015” thick, 30” long, size 9 ¾.
Switches for light, blower and electrical duplex.
Two 8” ID, epoxy-coated aluminum double-grooved glove ports mounted 17” apart, with neoprene gaskets.
Two 25-watt fluorescent lights that exceed 100 footcandles.
Dry-powder epoxy-coated, 18 and 20 gauge steel exterior panels.

Options:

Chemical resistant, one-piece molded fiberglass liner or type 304 stainless steel liner
Clear acrylic inner and outer transfer chamber doors (fiberglass-lined models)
Type 304 stainless steel inner and outer transfer chamber doors and front panel (stainless steel-lined models)
Inlet and outlet HEPA (fiberglass-lined models) or ULPA (stainless steel-lined models) filters
Protector Stainless Steel Double Filtered Glove Boxes have 81.84” of interior working width and four glove ports
International electrical configuration

Required Accessories:

Adjustable Height Base Stands

Optional Accessories:

Balance Vibration Isolator
Anti-Static Ionizer Fan
Gloves and Glove Box Accessories
HEPA Inlet or Exhaust Filter

Specifications:

Estimated Shipping Weight: 650.0 lbs
Estimated Shipping Weight metric: 295.0 kg
Dimensions: 63.5" w x 31.0" d x 45.7" h
Dimensions metric: 161.3 x 78.7 x 116.1 cm
Electrical: 208-230 volts, 60 Hz, 10 amps

Attributes:

Built-In Options: None
Conformance: CAN/CSA C22.2 No. 1010.1, UL 3101-1/61010-1, ETL
Filter Type: ULPA
Interior Working Width: 35.0"
Liner Material: Stainless Steel
Number of Glove Ports: Two
Power Cord & Plug: North America, 208-230 Volts
Primary Application: Hazardous materials
Product Subcategory: Filtered Glove Box
Required Accessories: Supporting Base
