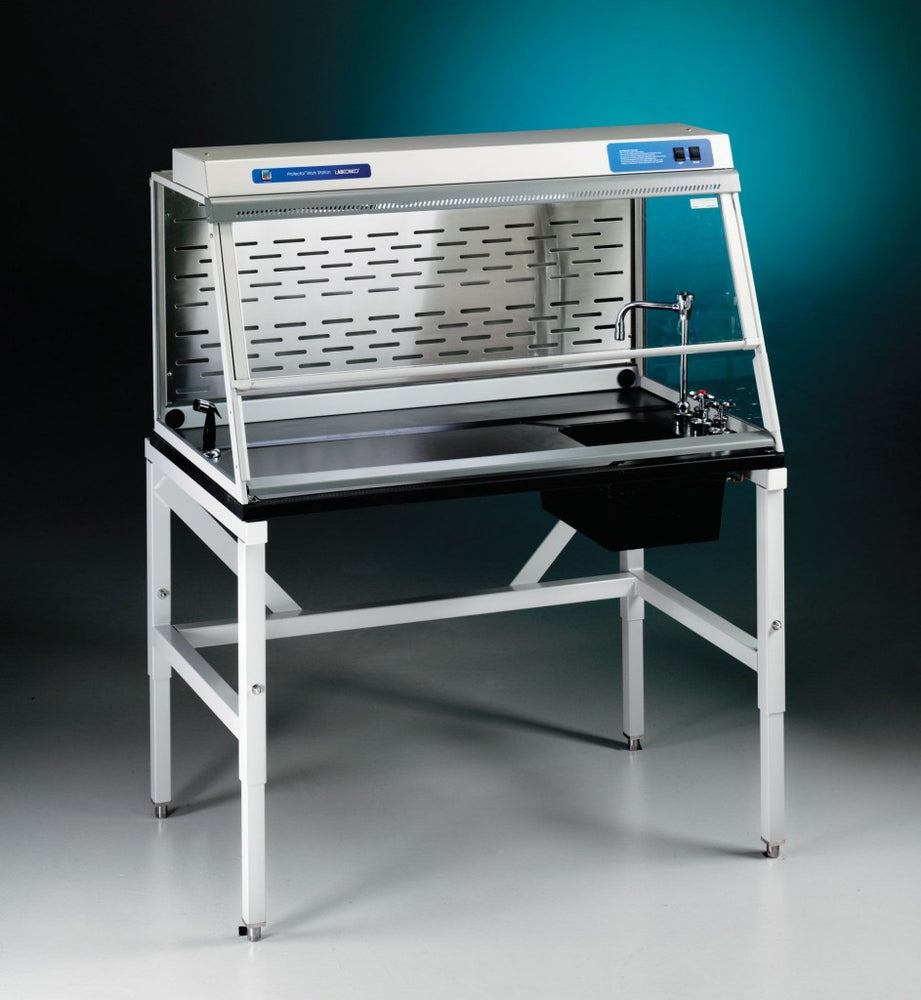

Labconco Protector Work Station without Blower - 3930021

Labconco Protector Work Station without Blower

Protector Work Stations are specifically designed for the needs of pathologists and histotechnologists. Like a traditional fume hood, these enclosures have a front air foil and rear baffle to direct the inflow air across the work area and away from the operator. Ideal for cramped or crowded labs, Protector Work Stations have a low profile so they fit easily under standard upper cabinets.

Protector Work Stations designed for ducting to the outside are available with or without a built-in blower. If there is no feasible way to vent to the outside, models with a built-in blower are available that use specially-treated Carbon Filters. These filter packs keep low level concentrations of toluene, xylene, formalin, formaldehyde and other solvents below their OSHA-recommended, time-weighted averages, restoring clean air to the laboratory.

Features (All Models):

Face velocities from 60 to 100 fpm
Clean-Sweep air foil
Upper dilution air supply
Upper containment sash foil
Zone-perforated Type 304 stainless steel rear baffle that pivots down and is removable for cleaning
Side-entry air foils
Powder-coated aluminum frame and steel rear plenum
1/4" thick tempered safety glass front sash and sides
8" high sash opening
Ergonomic 20° angled and higed sash with wiping seals and spring-loaded latch that pivots upward and locks to a 19.0" height
Fluorescent lighting
Light and blower switches
Exterior rear-mounted electrical receptacle

Options:

International electrical configurations
Models for ducting to the outside, ducting to a FilterMate Portable Exhauster or for use with carbon filters
Models with built-in dynamically-balanced motorized impeller
Models for ducting out have 2" x 10" rectangular exhaust openings on the top and bottom and two utility ports with iris openings and plugs

Required Accessories (Not Included):

Work surface
Base cabinet or stand
Two carbon filters (for models designed for use with carbon filters only)
Remote blower, house exhaust or FilterMate Portable Exhauster, Exhaust Transition Adapters, and Ductwork (for models designed for use with remote blower or Exhauster only)

Optional Accessories:

Guardian Airflow Monitors
Utility Shelves, Bottle Holder and Tissue Holder
Remote Blowers

Compliance:

SEFA 1 (Ducted models only)
SEFA 9, DH I (Built-in blower models or models connected to FilterMate Portable Exhauster only)
SEFA 8
Modified ASHRAE 110
ANSI Z9.5
UL 61010-1 (115V models)
CAN/CSA C22.2 No. 61010.1 (115V models)
CE Conformity marking (230V models)

Specifications:

Estimated Shipping Weight: 100.0 lbs
Estimated Shipping Weight metric: 45.0 kg
Dimensions: 48.0" w x 29.0" d x 25.7 h"
Dimensions metric: 121.9 cm x 73.7 cm x 65.3 cm
Electrical: 230 volts, 50/60 Hz, 5 amps, International

Attributes:

Product Subcategory: General Chemistry
Nominal Width: 4'
Air Usage/Static Pressure with Sash At Working Height: At 60 fpm, exhausts 150 CFM at .06" H2O maximum external static pressure
Conformance: ANSI Z9.5, CE, Modified ASHRAE 110, SEFA 1
Lighting: Fluorescent
Power Cord & Plug: 9' power cord without plug.
Style: Benchtop
