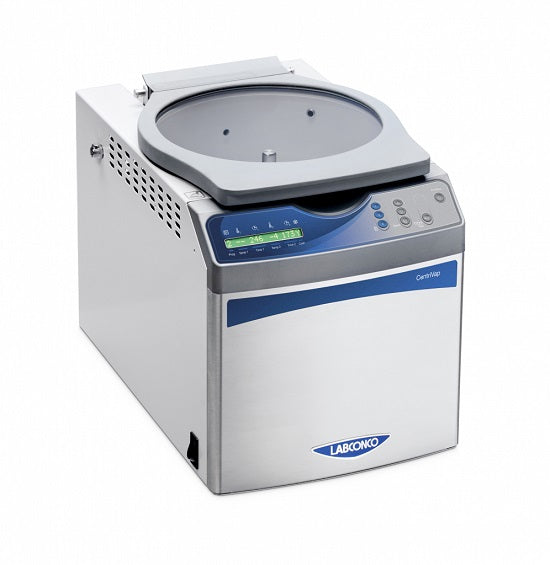

Labconco Refrigerated CentriVap Benchtop Vacuum Concentrator with Glass Lid - 7310038

Labconco Refrigerated CentriVap Benchtop Vacuum Concentrator with Glass Lid

The Refrigerated CentriVap Centrifugal Concentrator is designed to rapidly concentrate multiple small heat-sensitive samples, such as RNA and proteins, using centrifugal force, vacuum and controlled temperature. This exclusive concentrator combines a refrigeration system that cools to -4º C with a heater that warms to 100º C to achieve the user’s desired set point temperatures.

Compliance:

UL 3101-1/61010-1
CAN/CSA C22.2 No. 110.1 (115 V models)
CE Conformity Marking (230 V models)

Features:

Brushed stainless steel and glacier white, epoxy-coated steel exterior with blue accents.
Lid latch with safety sensor.
Phenol-free lid gasket.
Epoxy-coated aluminum chamber.
1/4 hp refrigeration system to cool chamber to -4° C.
300-watt heater to heat chamber to +100° C.
Sensor that reads internal chamber temperature.
Microprocessor-controlled programming for "Temperature 1" from -4° C to +100° C, "Temperature 1" time from 1 to 999 minutes or indefinite, "Temperature 2" from -4° C to +100° C, and "Temperature 2" time from 0 to 999 minutes or indefinite. Memory stores 1 to 9 programs.
LCD for display of program number, set point and actual "Temperature 1 and 2," set point and time remaining for "Temperature 1 and 2," and refrigeration activation ("Y" or "N").
Control panel with Run/Stop button, Preheat/ Cool button, set point Select button, increase/ decrease buttons, and 3 Quick-Start buttons.
Centrifugal motion is provided by a brushless motor capable of achieving up to 1725 rpm.
Quick-Stop System to stop vacuum pump, open valve to bleed air into the chamber and stop the rotor within seconds after time expires or Run/Stop button is pressed.
Automatic vacuum release valve.
Built-in vacuum delay allows rotor to achieve speed before applying vacuum.
Audible alarm to signal completion of set point run time.
1/2" OD aluminum hose fitting for connection to vacuum tubing. Vacuum pump is not included.
Vacuum port with quick disconnect fitting for 1/4" ID tubing.
115 volt models have a 115 volt electrical receptacle on the back to connect accessory vacuum pump to the system.
230 volt models have a reverse IEC electrical receptacle on the back to connect accessory vacuum pump to the system.
115 volt models have a 10-foot, 3-wire cord with NEMA 5-20 plug.
230 volt models have an 8-foot cord with NEMA 6-20 plug.
Overall dimensions with closed lid: 14.7" wide x 21.7" deep x 16.6" high (37.3 x 55.1 x 42.2 cm).
Actual weight 95 lbs. (43 kg). Shipping weight 108 lbs. (49 kg).

Options:

International electrical configuration
Glass lid

Required Accessories:

Diaphragm or Rotary Vane Vacuum Pump
CentriVap Cold Trap if using a Rotary Vane Vacuum Pump
Rotors
Sample tubes

Optional Accessories:

CentriZap Strobe Light
Vacuum Controller
Laboratory Carts

Specifications:

Estimated Shipping Weight: 108.0 lbs
Estimated Shipping Weight metric: 49.0 kg
Dimensions: 14.3" w x 21.7" d x 16.6" h
Dimensions metric: 36.3 x 55.1 x 42.2 cm
Electrical: 230 V, 50/60 Hz, 8 amps

Attributes:

300-Watt Heat Boost: Not Included
CentriVap Optional Accessories: Laboratory Carts, Vacuum Controller, Rotors, CentriZap Strobe Light
CentriVap Required Accessories: Sample Tubes, Rotor, Diaphragm or Rotary Vane Vacuum Pump
Conformance: ETL
Lid Type: Glass
Receptacle and Plug Type: North America, 230 volts
Style: Benchtop
Type/Application: Temperature-Sensitive Samples
