Labconco Remote Blower for Protector Work Station - 7053500

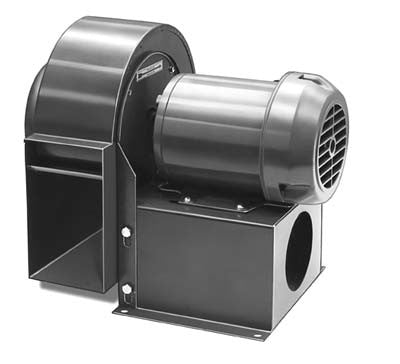

Labconco Remote Blower for Protector Work Station

Remote Blower, for Protector Work Station without Blower. Sized to meet the air volume requirements of the Protector Work Station 6941003. It has a 1/4 hp direct drive motor capable of overcoming external static pressure loss of .87" H2O at 167 CFM (50 fpm face velocity). Housing and wheel are corrosion-resistant enamel-coated steel. Discharge direction is adjustable to accommodate unusual blower locations. Blower inlet is 6" ID. Outlet dimension is 4.25" x 7.38" OD. For model 6941003.

This Remote Blower is for connection to XPert Balance Enclosure, Protector XVS Ventilation Station, Purifier HEPA Filtered Enclosure, Protector Work Station or Protector Demonstration Hood. The direct drive blower has a 1/4 hp TEFC-type motor and overcomes external static pressure of 0.5" at 420 CFM. Recommended for low to moderately corrosive conditions. Phenolic-coated steel housing and wheel. Provides a range of 167 to 560 CFM at 0.125" to 0.87" static pressure.

Specifications:

Estimated Shipping Weight: 35.0 lbs
Estimated Shipping Weight metric: 15.9 kg
Electrical: 115 volts, 60 Hz, 4.4 amps

Attributes:

Product Subcategory: Coated Steel Blowers
Motor Type: TEFC Direct Drive Motor
Explosion-Proof: No
Hood Application: Low to moderately corrosive
HP: 1/4
Inlet/Outlet: 6.00" Inlet, 4.25" x 7.38" w Outlet
