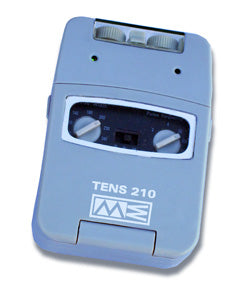

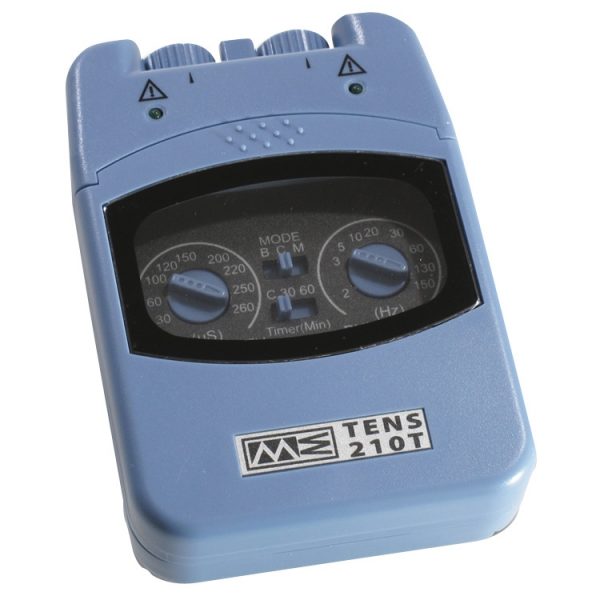

Mettler TENS 210 Electrical Nerve Stimulator
In Stock
$52.99
SKU ME 210T
Spring Savings: Use code FALL for 5% OFF Total Purchase
Free Shipping Orders Over $100
Questions? Speak with a specialist!
Chat with us!
Click Widget Below
Give us a call!
Email us!
Description
The TENS 210 is a battery-operated two-channel transcutaneous electrical nerve stimulator that creates electrical impulses. Intensity, duration, number per second, and modulation of those impulses can be altered with easy-to-use controls or switches, all in a lightweight package.
Specifications
| Weight: | 4 oz. (battery included) |
| Dimensions: | 3.7 in, (H) x 2.6 in. (W) x 0.9 in. (T) |
| Channels: | Two, independently controlled |
| Waveforms: | Symmetric, biphasic rectangular pulse |
| Output Current: | 1 – 80 mA into a 500 Ω load Constant Current |
| Output Voltage: | 0 – 40 Volts, 500 Ω |
| Timer: | 30 or 60 minutes, or continuous |
| Battery: | DC 9 V battery, alkaline or rechargeable nickel-cadmium |
| Battery Life: | Approximately 70 hours at nominal settings |
| Patient Compliance Meter: | Shows treatment times in hours |
| Pulse Rate: | 2 – 150 Hz |
| Pulse Width: | 30 – 260 s |
Function Mode Table:
|
Mode |
Intensity (Vp) |
Pulse width (Vp) |
Pulse rate (Vp-p) |
Mode type |
|
B |
0 ~ 80 mA |
30 ~ 260 uS |
100 Hz |
Burst |
|
C |
0 ~ 80 mA |
30 ~ 260 uS |
2 ~150 Hz |
Continuous |
|
M ** |
0 ~ 80 mA |
30 ~ 260 uS |
2 ~150 Hz |
Modulation |
|
** Modulates down from preset width setting by 60% then back to the original setting.
|
||||
