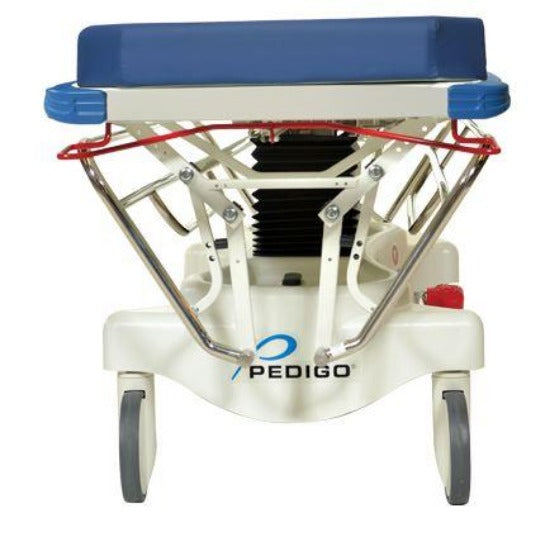

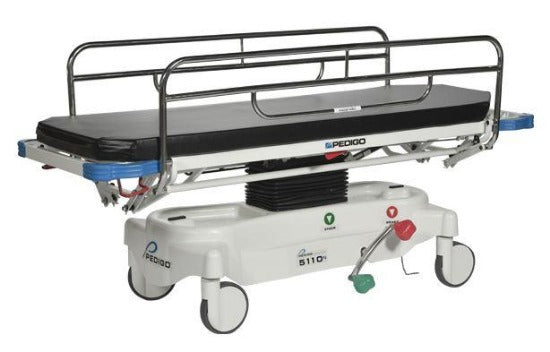

Pedigo General Transport Stretcher Narrow Non-Hydraulic True Direction Steering without Mattress
The full function 5110 Series general transport stretcher provides a versatile yet economical patient transport solution. This is a non-hydraulic adjustable stretcher.

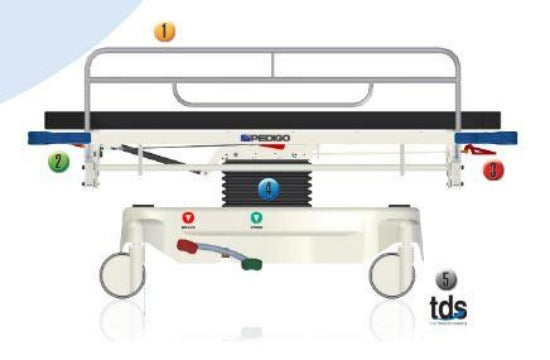

RAIL SYSTEM:
Easy to wipe clean and disinfect, full length tuck-away side rails allow for easier patient transfer by creating a zero transfer gap. Rails feature a release latch centrally located on either side of the litter top under the patient surface.

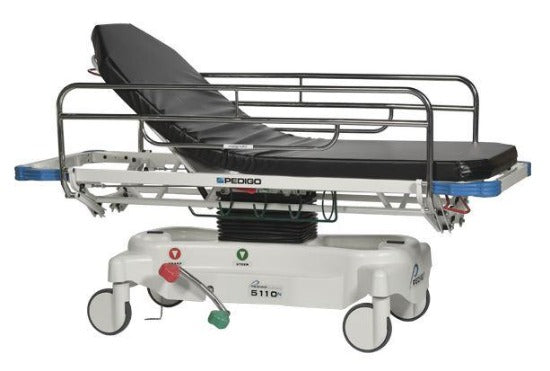

Pneumatic Assist Fowler:
Provides additional assistance for the safe and easy raising and lowering of the patient.
Trendelenburg:
A single pneumatic cylinder assists in placing the litter top in Trendelenburg/position.
Center Column Support:
Sturdy steel column design with five fixed litter top height positions to choose from: 28”, 29”, 30”, 31” or 32”.
True direction steering (tds):
For improved stretcher control, engage the True Direction Steering system. The steer caster located at the patient’s right foot end of the stretcher will lock once the steering pedal is applied.
Patient lifts:
The 5110 Series Stretcher has 5-⅞” H of clearance between floor and cowling to easily accommodate and utilize patient lifts.
Features:
500 lbs. weight capacity
True Direction Steering (TDS)
Side rails - full length, single release
Center column patient support
Non-hydraulic
5 fixed litter top height options: 28” to 32”
Pneumatic assist fowler 400 N (90#) force
Brake & Steer activated foot pedals
Four corner IV pole receptacles
Four restraint strap positions
Full PVC perimeter bumper
8” easy mobility casters
Latex-free
Overall Length: 83" (211 cm)
Height Range
Low:
28" (71 cm)
29" (73 cm)
30" (76 cm)
31" (79 cm)
High: 32" (81 cm)
Litter Positioning: Fowler Backrest 0° – 90°, Trendelenburg +12°, Reverse Trendelenburg -7°
Patient Surface: N - 77" x 27" (196 x 69 cm), W - 77" x 31" (196 x 77 cm)
Side Rails: 15" x 63 5/8" (38 x 162 cm)
Casters: 8" (20 cm)
