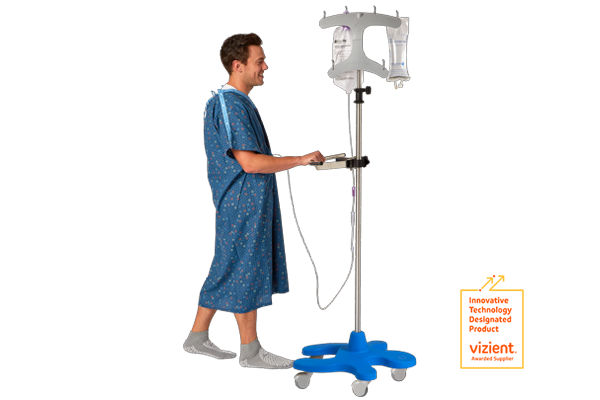

Pedigo Infusion Pump Stand, Clearstep 5-Leg Base With Interlocking Capability
Pedigo’s new IV stand features a number of unique design elements to further promote safety, organization and efficiency of IV fluid administration. Innovative. Safe. User friendly.
Features:
Clearstep Technology
Created with patient and staff safety in mind, the element’s Clearstep base is ergonomically designed for easy ambulation. Recess on each side of the base allows for clearance emulating the natural shape of the foot.
High impact polymer hook material. Smooth finish and easy to clean.
Height Adjustment: 73.5" minimum to 122" maximum
21.25" Base diameter(caster centerline circle).
Five 3" diameter swivel casters. Maintenance-free precision ball bearing sealed casters for ultra-low resistance
Clearview Technology:
High impact molded polymer IV hook assembly features six hooks for easy reading all IV bag labels from the front of the stand. Built-in offset for IV piggybacking. Smooth finish and easy to clean.
Stainless steel pole.
19 lbs. base provides improved stability.
Interlocking Bases:
The interlocking bases allow for multiple stands to be moved at one time by connecting the element together. Designed for comfortable transport and storage of multiple stands.
Specifications:
Weight:
Overall Product Weight: 26 lbs. (12 kg)
Base Weight (with Casters): 19 lbs. (9 kg)
Weight Capacity (Maximum)
Hooks (each) 7 lbs. (3 kg)
Offset Load (Base Tube)† 40 lbs. (18 kg)
Total Load‡ 90 lbs. (41 kg)
Number of Pumps per Stand 4 (10 lbs. each)
Casters
5 Swivel Casters: 3" (8 cm)
Height Adjustment
Low: 74" (188 cm)
High: 122" (310 cm)
Base Diameter (Caster Centerline): 21.25" (54 cm)
Number of Interlocking Stands (Max.): 6
